28mm PM Stepper Motor DC 12V 4 Phase 5 Wire Stepper Motor Geared
| MOQ: | 1000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | packed with CTN OR CUSTOMIZED |
| Delivery Period: | with in 35days |
| Payment Method: | L/C,T/T,D/P |
| Supply Capacity: | 200,000 PCS/month |
PM Stepper Motor DC 12V
,28mm Stepper Motor Geared
,4 Phase 5 Wire Stepper Motor
Motors-Permanent Magnet PM Stepper Motor Driving Method 1-2 Phase Driving (Half Step Driving) Step Angle 5.625°/64 Coil Resistance 100Ω/Phase Rated Voltage 12V DC
PERMANENT MAGNET GEARED STEPPER MOTOR

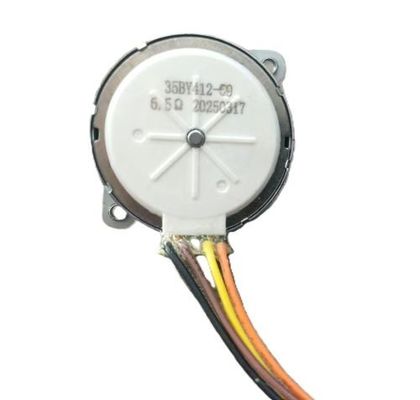

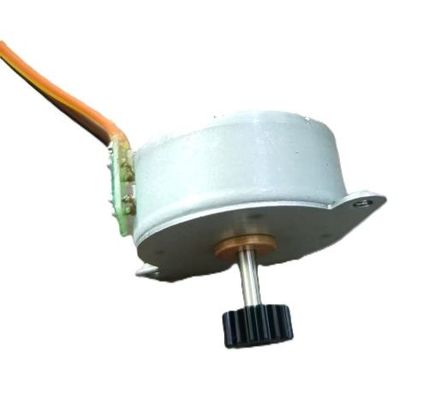

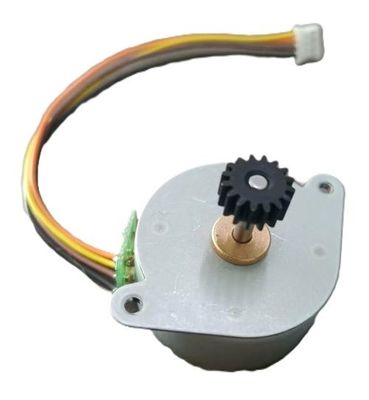

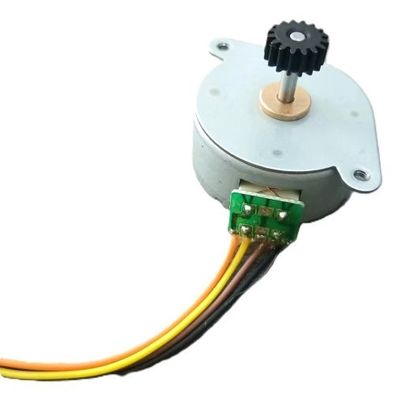

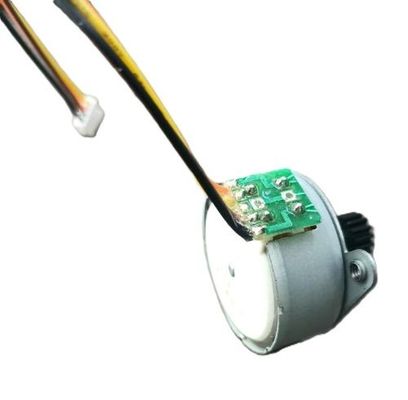

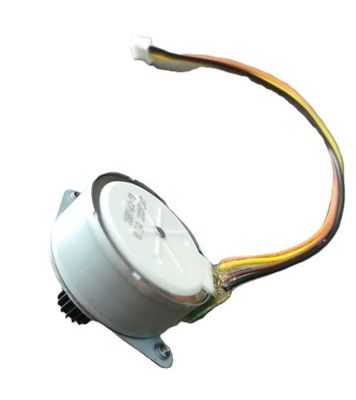

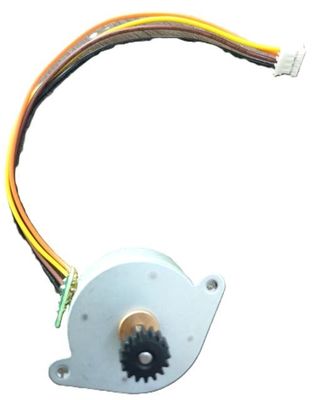

Efficient 28mm High-Torque 35BY412-59 Unipolar 4 phases 64:1 ratio geared reducer stepping motor
This is a 28mm diameter permanent magnet stepper motor with 64:1 gear ratio gearbox.
This is an uni-polar motor with 4 phases, 5 wires.
The red cable is common line in the middle of each phase.
With low price and reliable quality, this motor is widely used in home appliance industries, such as air conditioning, smart home system, smart toilet and so on.
We provide customization service on gear ratio, coil resistance, phase number, and connector types.
Customers can customize motor’s parameter based on specific requirement, we have 16:1 to 85:1 gear ratio for option.
Parameter:
| Model No. 35BY412-59 | |
| Motor diameter 35 | mm |
| Phase No. | 4 phases(Unipolar) |
| Driving method | 1-2 phase driving (half step driving) |
| Step Angle | 5.625°/64 |
| Coil resistance | 100Ω/phase |
| Rated voltage | 12V DC |
| Max starting frequency(12V) | >600 PPS |
Customization options:
Model No.: 35BY412-59
Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step
Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable
|
Voltage (V) |
Resistance (Ω) |
Pull-in torque 100PPS (mN*m) |
Detent Torque (mN*m) |
Unload pull-in Frequency (PPS) |
| 5 | 18 | ≥98 | ≥29.4 | ≥500 |
| 12 | 60 | ≥117 | ≥29.4 | ≥500 |
| 12 | 70 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 200 | ≥68.7 | ≥29.4 | ≥500 |
| 12 | 300 | ≥58.8 | ≥29.4 | ≥500 |
Design drawing(Unit:mm)
