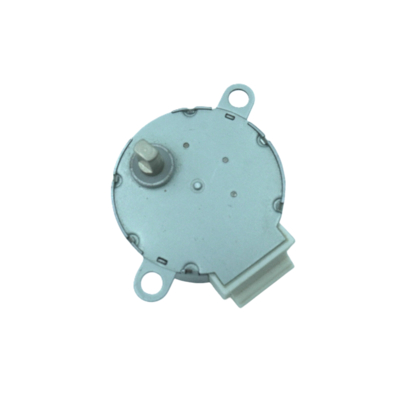

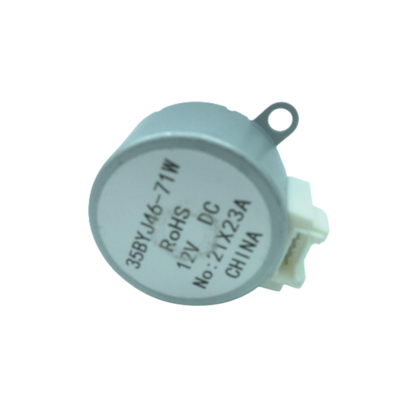

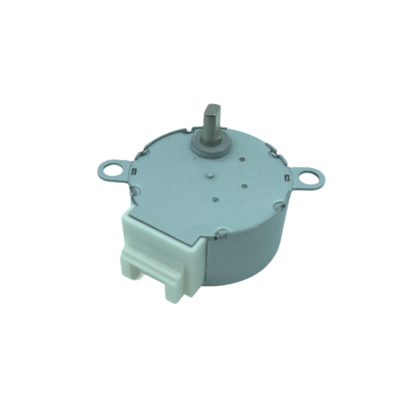

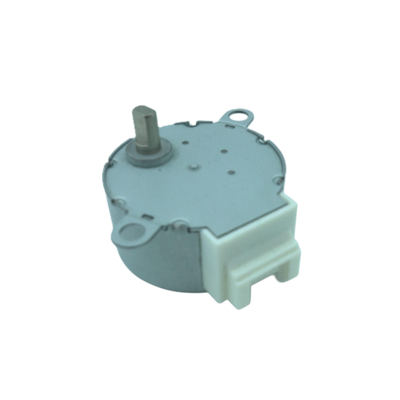

35BYJ46 PM Stepper Motor 12V DC Geared Stepper Motor For Electronic Instruments

1PCS
MOQ
0.5~5 USD/PC
Price
35BYJ46 PM Stepper Motor 12V DC Geared Stepper Motor For Electronic Instruments
Features Gallery Product Description Chat Now
Features
Specifications
Name: 35BYJ46 PM Stepper Motor 12V DC Geared Stepper Motor Manufacturer
Material: Copper Wire
Voltage: 12V
Resistance: 100 - 200 Ω
Step Angel: 75/85 15/85; 75/41.6 15/41.6; 7.5/43.75 15/ 43.75
Other: OEM & ODM
Application: Air Conditioning, Refrigerator, Intelligent Sanitary, CCTV Monitor, Electronic Instruments
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001 ROHS
Model Number: 35BYJ46
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: About 20 to 30 days after receiving deposit
Payment Terms: T/T, , Western Union
Supply Ability: 200,000 PCS/month
Product Description

Application Areas:

35BYJ46 is widely used in intelligent household appliances (such as air conditioners, refrigerators, smart toilets), security monitoring, office automation equipment, financial payment devices, stage lighting, medical instruments, textile machinery, robots, and other automation control fields requiring accurate positioning.



Technical Parameters of 35BYJ46



 Model Voltage (V) Resistance(Ω) Step Angle         (1-2P) /(2-2P) Frequency(PPS) Starting Torque(mN.m) Self-locating(mN.m) Pull -in(PPS) Pull-out(PPS)
35BYJ46 12 130 (7.5°/41.6) /(15°/41.6) 100 ≥98 ≥39.2 ≥350 ≥600
12 40 (7.5°/43.75) /(15°/43.75) 500 ≥100 ≥39.2 ≥350 ≥600
12 100 (7.5°/43.75) /(15°/43.75) 100 ≥58.8 ≥39.2 ≥350 ≥600
12 40 (7.5°/85) /(15°/85) 500 ≥147 ≥78.4 ≥350 ≥600
12 100 (7.5°/85) /(15°/85) 100 ≥147 ≥78.4 ≥350 ≥600





Drawing:

35BYJ46 PM Stepper Motor 12V DC Geared Stepper Motor For Electronic Instruments 0

35BYJ46 PM Stepper Motor 12V DC Geared Stepper Motor For Electronic Instruments 1

Product Introduction:

35BYJ46 is a permanent magnet type geared stepper motor with 4 phases, featuring a step angle of 7.5° (output shaft) and a reduction ratio of 1/85. The motor is known for its simple structure, high reliability, good dynamic performance, large output torque, and low power consumption, making it suitable for a wide range of precise control applications.

Tag:

PM Stepper Motor

Permanent Magnet DC Motor

Permanent Magnet Stepping Motor
