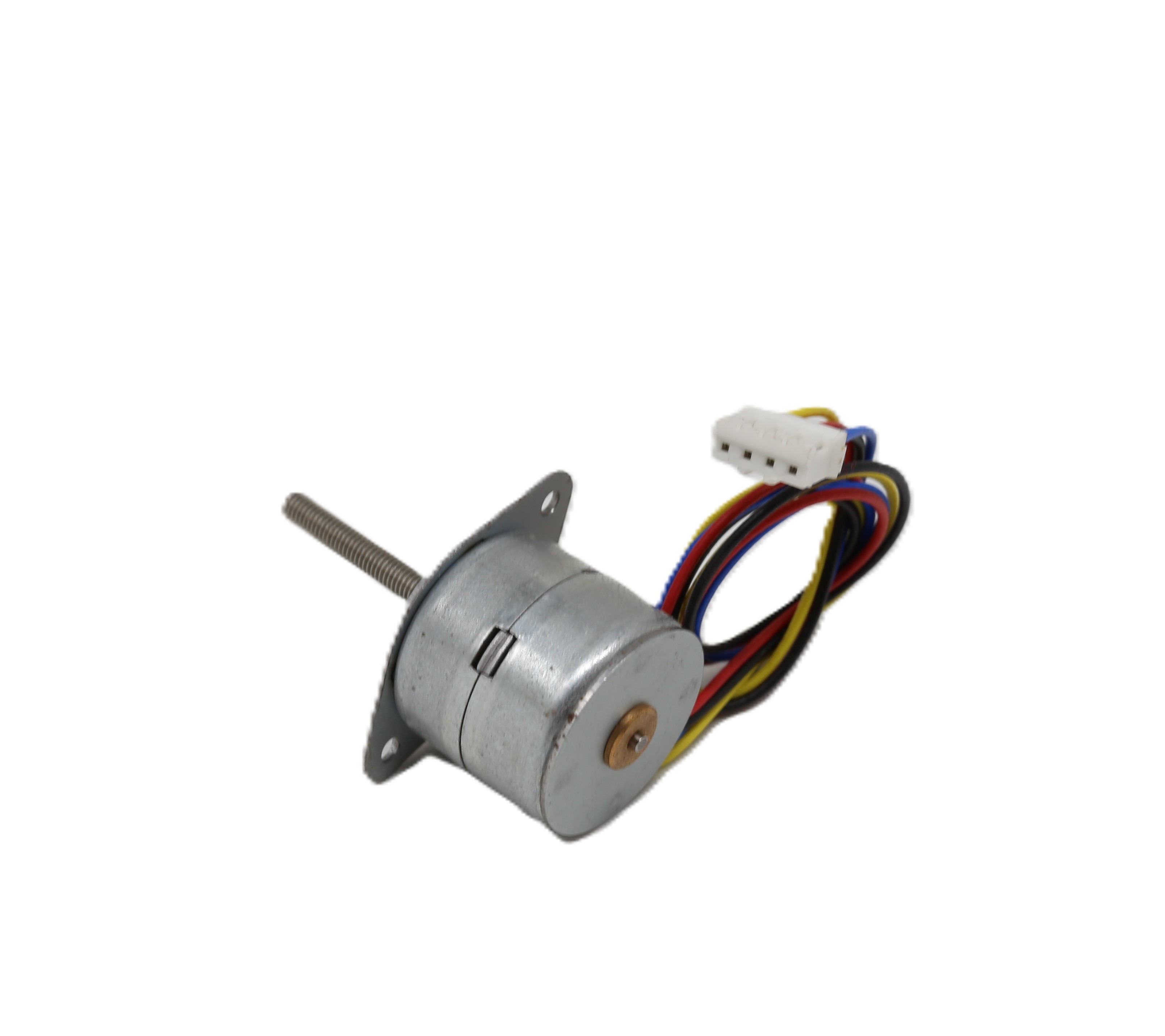

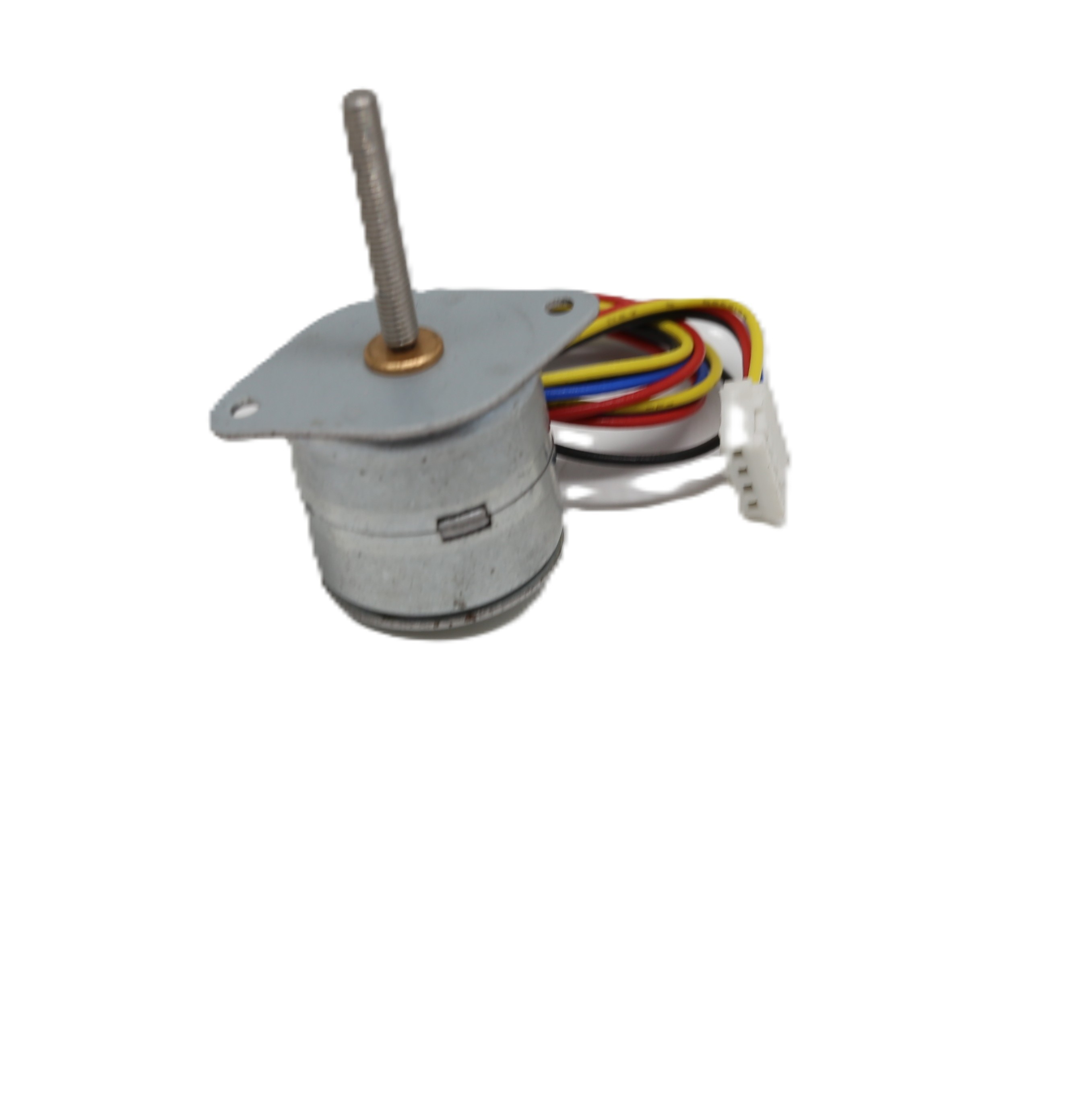

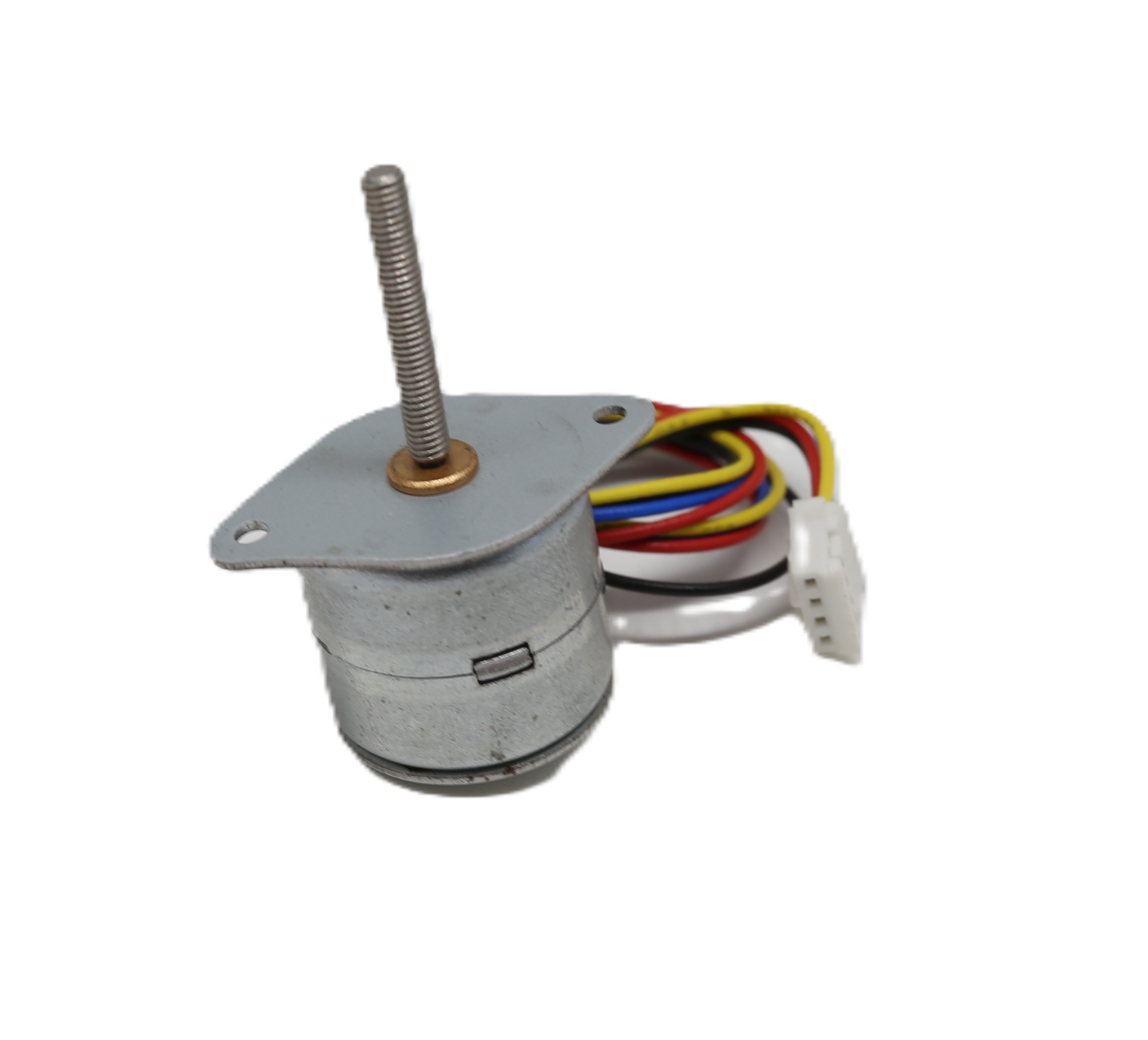

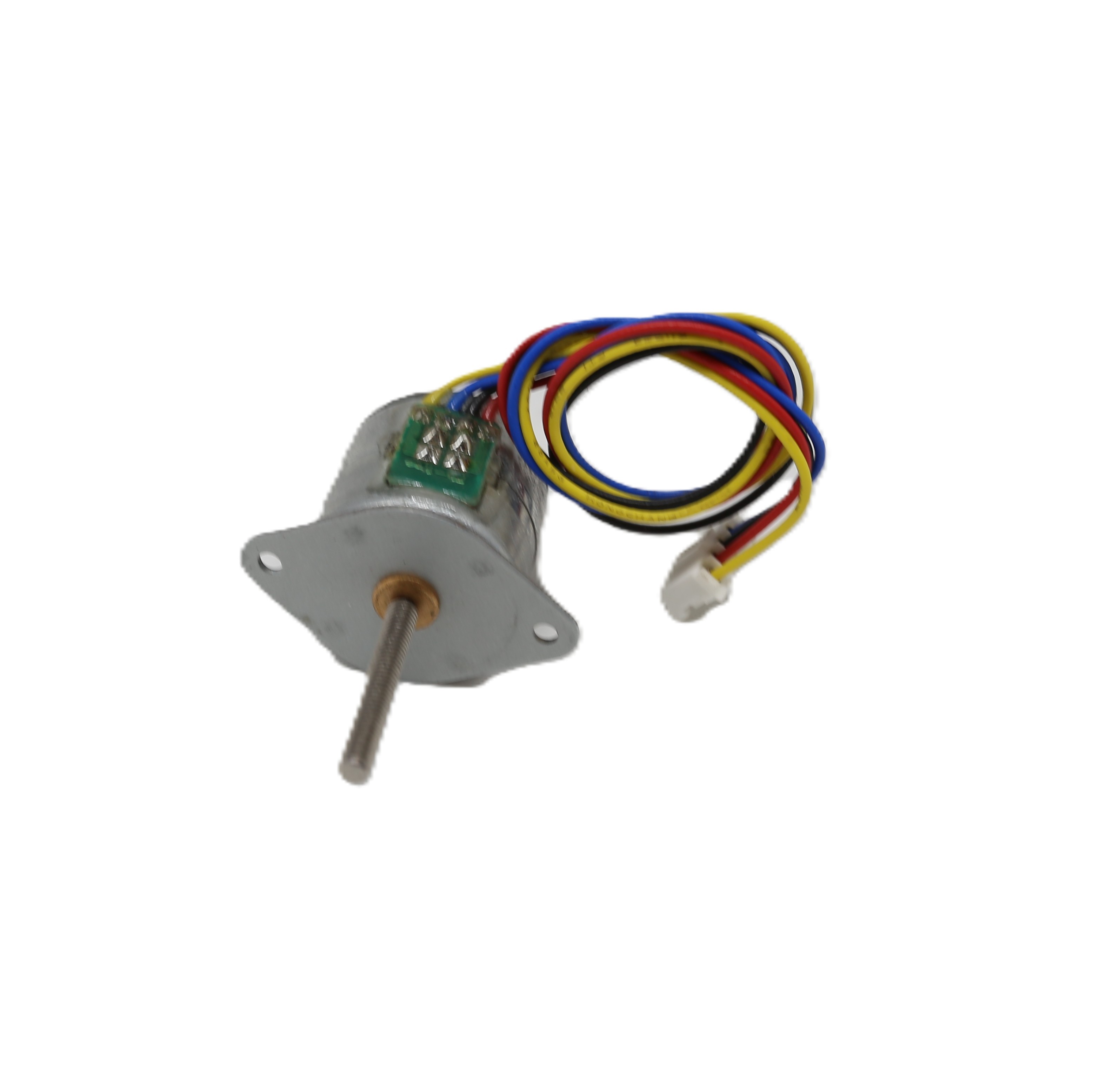

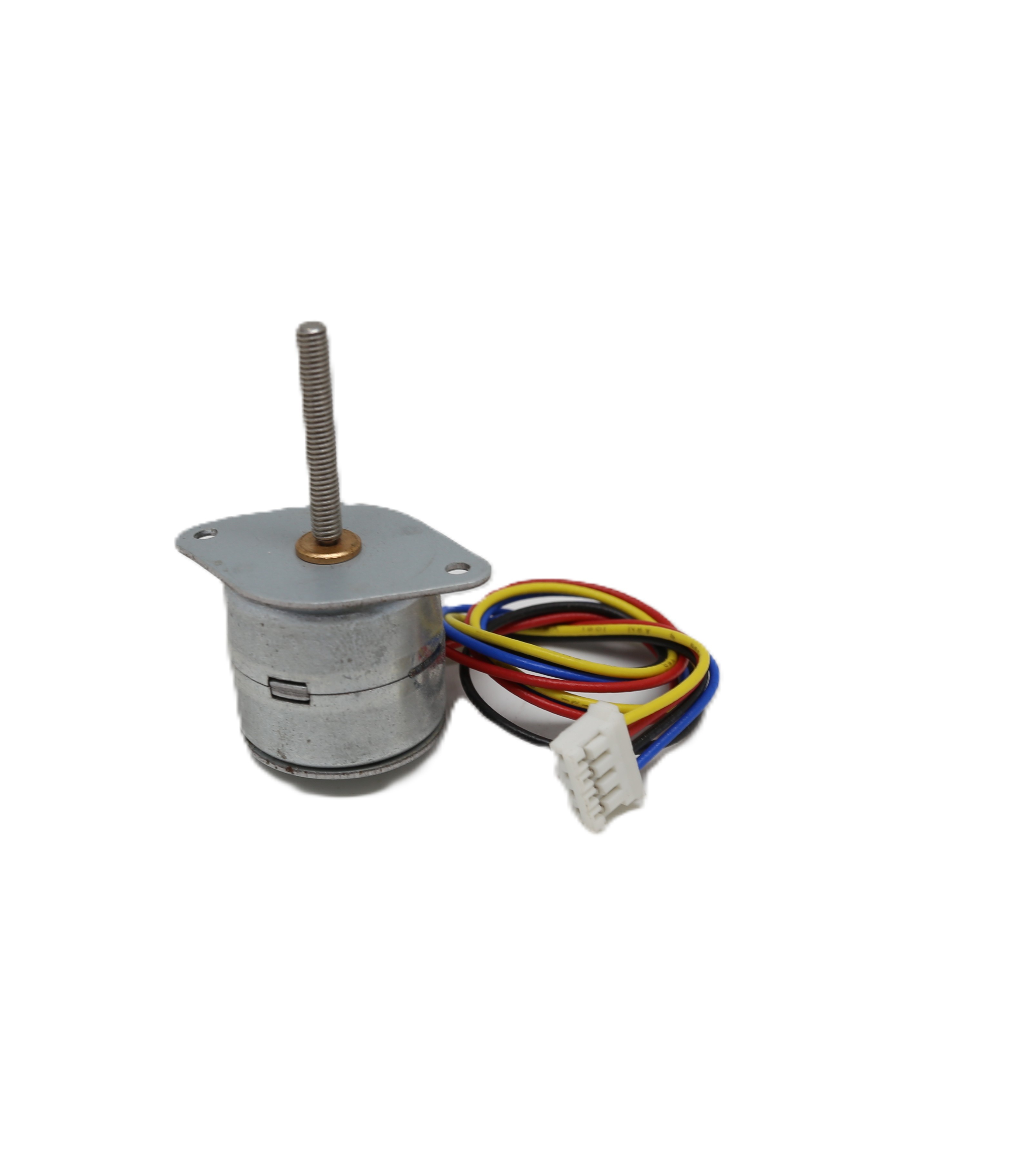

20BYJ46 12V DC Stepper Motor with Gear Reduction

1pcs
MOQ
1~6 USD/PC
Price
20BYJ46 12V DC Stepper Motor with Gear Reduction
Features Gallery Product Description Chat Now
Features
Specifications
Material: 100% Copper Wire
Type: Gear Motor
Voltage: 12V
Phase: 2~4
Construction: Permanent Magnet
Highlight:

Permanent Magnet Synchronous Motor 20mm

,

High Torque Stepper Motor 20mm

,

20mm Stepper Motor High Torque
Basic Infomation
Place of Origin: China
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 20BYJ46
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 20 to 30 days after receiving deposit
Payment Terms: T/T
Supply Ability: 200,000 PCS/month
Product Description

20BYJ46 12V DC Stepper Motor with Gear Reduction

Specifications


Product Name 20BYJ46 12V DC Stepper Motor with Gear
Model 20BYJ46
Rated Voltage 12 V
Resistance 250 Ω ± 10%
Phase 2 Phases
Step Angle (7.5° /85) / (15°/85)
Torque ≤29.4 mN.m
Frequency 100 PPS
Max. Starting Rate ≥550PPS
Max. Slewing Rate ≥900PPS
Diameter 20mm
Applications: Home appliances / Air conditioner /Refrigerator

Intelligent sanitary / Automatic door locks

CCTV Monitor / Electronic Instruments
OEM & ODM SERVICE AVAILABLE


20BYJ46 12V DC Stepper Motor with Gear Reduction 0

SERVICE & WARRANTY:


Service:

With a professional engineer team, we can offer the professional opinions when you want

to make OEM products. With active and enthusiastic Sales team, they will be the bridge of

you and factory. Once inquiry received, we promise reply in less than 24 hours. Our mission

is try our best to offer a reliable product with reasonable cost to our valuable customers.


Warranty:

12months after delivery.
