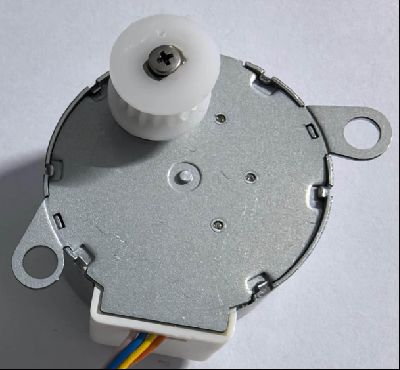

35BYJ46 Compact 35mm Stepper Motor with 5-Wire Unipolar Configuration for Robotics and Automation
| MOQ: | 5 pcs |
| Price: | 0.5~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
5-Wire Unipolar Stepper Motor
,Compact 35mm Stepper Motor
,Robotics Stepper Motor
35BYJ46 High Quality Stepper Motor 12V
35BYJ46 is a high-precision stepper motor designed for reliable and efficient performance in a compact form. Operating at 12V DC , it is ideal for applications that require accurate positioning and smooth motion control. this motor is commonly used in automation systems, robotics, home appliances and industrial machinery.
Its 5-wire unipolar configuration and compact size make it perfect for low-power applications, while offering consistent and repeatable movement.
Key Features:
- 12V DC operating voltage
- Smooth and accurate step rotation
- Compact and lightweight design
- 5-wire unipolar configuration
- Pre-soldered JST connector for plug-and-play use
35BYJ46 Series Specifications:
| Model | Voltage(V) | Resistance(Ω) | Step Angle (1-2P)/(2-2P) | Freq(PPS) | Pull-in Torque(mN.m) | Self-location Torque(mN.m) | Empty pull-in freq(PPS) | Empty Pull-out Freq(PPS) |
| 35BYJ46 | 12 | 130 | (7.5°/41.6) /(15°/41.6) | 100 | ≥98 | ≥39.2 | ≥350 | ≥600 |
| 12 | 40 | (7.5°/43.75) /(15°/43.75) | 500 | ≥100 | ≥39.2 | ≥350 | ≥600 | |
| 12 | 100 | (7.5°/43.75) /(15°/43.75) | 100 | ≥58.8 | ≥39.2 | ≥350 | ≥600 | |
| 12 | 40 | (7.5°/85) /(15°/85) | 500 | ≥147 | ≥78.4 | ≥350 | ≥600 | |
| 12 | 100 | (7.5°/85) /(15°/85) | 100 | ≥147 | ≥78.4 | ≥350 | ≥600 |
35BYJ46 DIMENSIONS: mm
35BYJ46 Torque Curve:
35BYJ46 Stepper Motor Applications:
• Ideal for robotics, 3D printers, Air conditioners, Electric fans and small automation projects.
Custom BYJ Stepper Motors Tailored to Your Specific Needs
- Logo printing :as your need.
- Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
- Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
- Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
- Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.

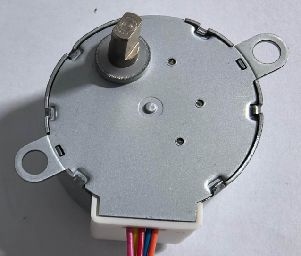

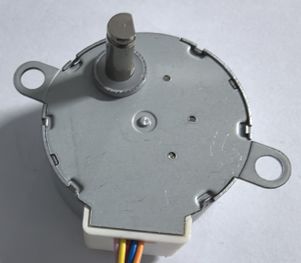

Micro Stepper Motor Samples:
