Custom Gearbox Stepper Motor High Torque Permanent Magnet 3V DC Gear Motor

micro metal gearmotor dc gear motor with gear box precision geared stepper motor

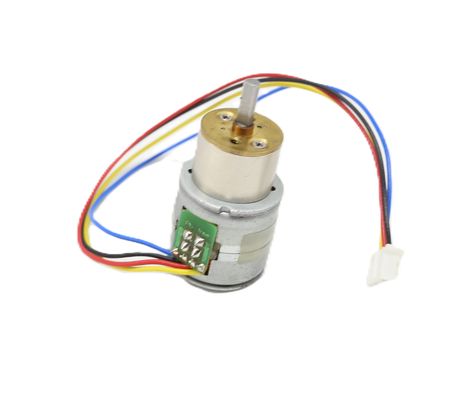

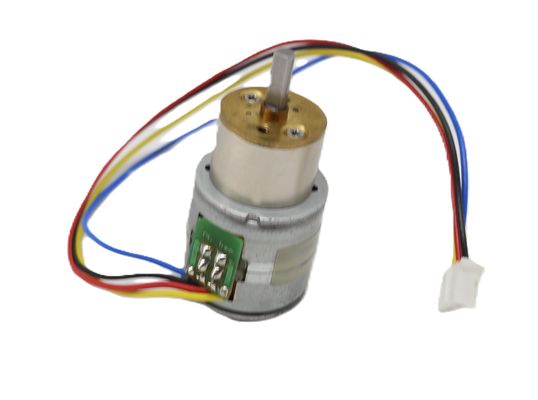

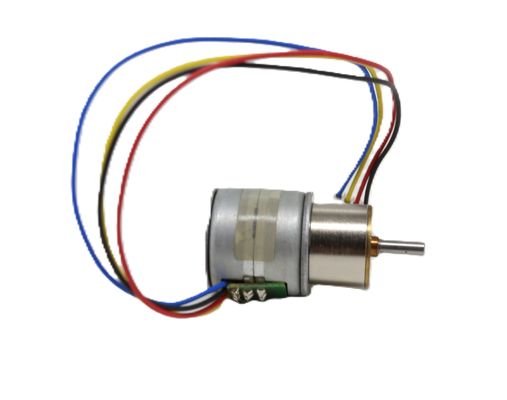

SM10-100G-18M5 geared stepepr motor is made up of 10mm micro stepper motor and the size of 10*12mm metal gear box.The diameter of the motor is 10mm,and the motor resistance is 18 Ω per phase.The step angle is 18° , 20 steps per revolution.The type of Wire Connect is lead wire,there are 4 wires(Red,White,Black and Brown)For motor lead wire housing,Red and White is Phase A,Black and Brown is Phase B.The voltage range of SM10-100G-18M5 micro geared stepper motor is from 3V to 5V ,and the resistance can be customize as your requirments.

For the size of metal gearbox,it is 10mm*12mm,and the metarial is brass.In this 10mm stepper motor,the gear ratio is 1:100,when use 2-2 phase driving method under 660 pps,the rated torque is more than 25 mN.m at 20 rpm.

Mechanical Dimension:MM

For the size of metal gearbox,it is 10mm*12mm,and the metarial is brass.In this 10mm stepper motor,the gear ratio is 1:100,when use 2-2 phase driving method under 660 pps,the rated torque is more than 25 mN.m at 20 rpm.

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications
