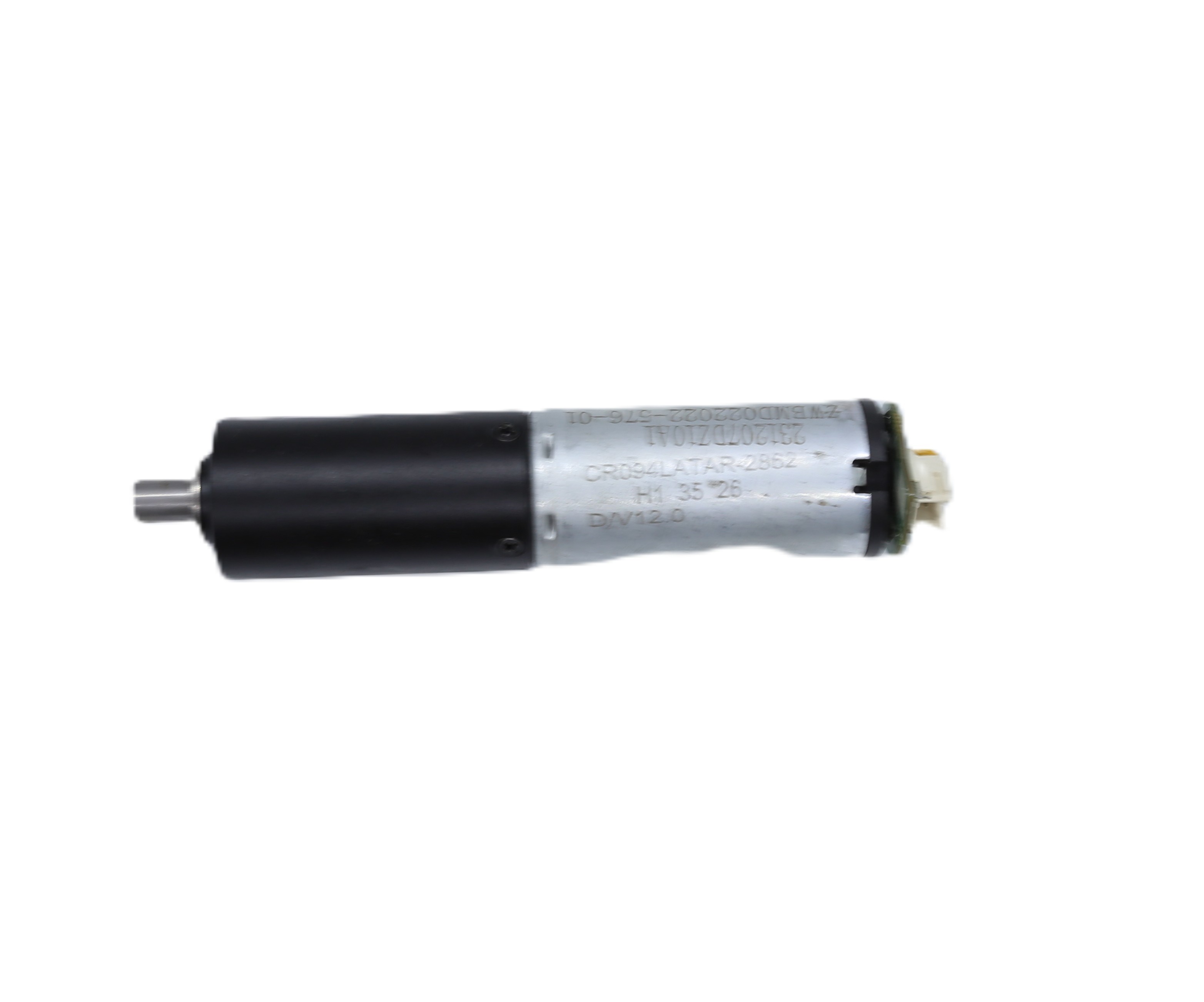

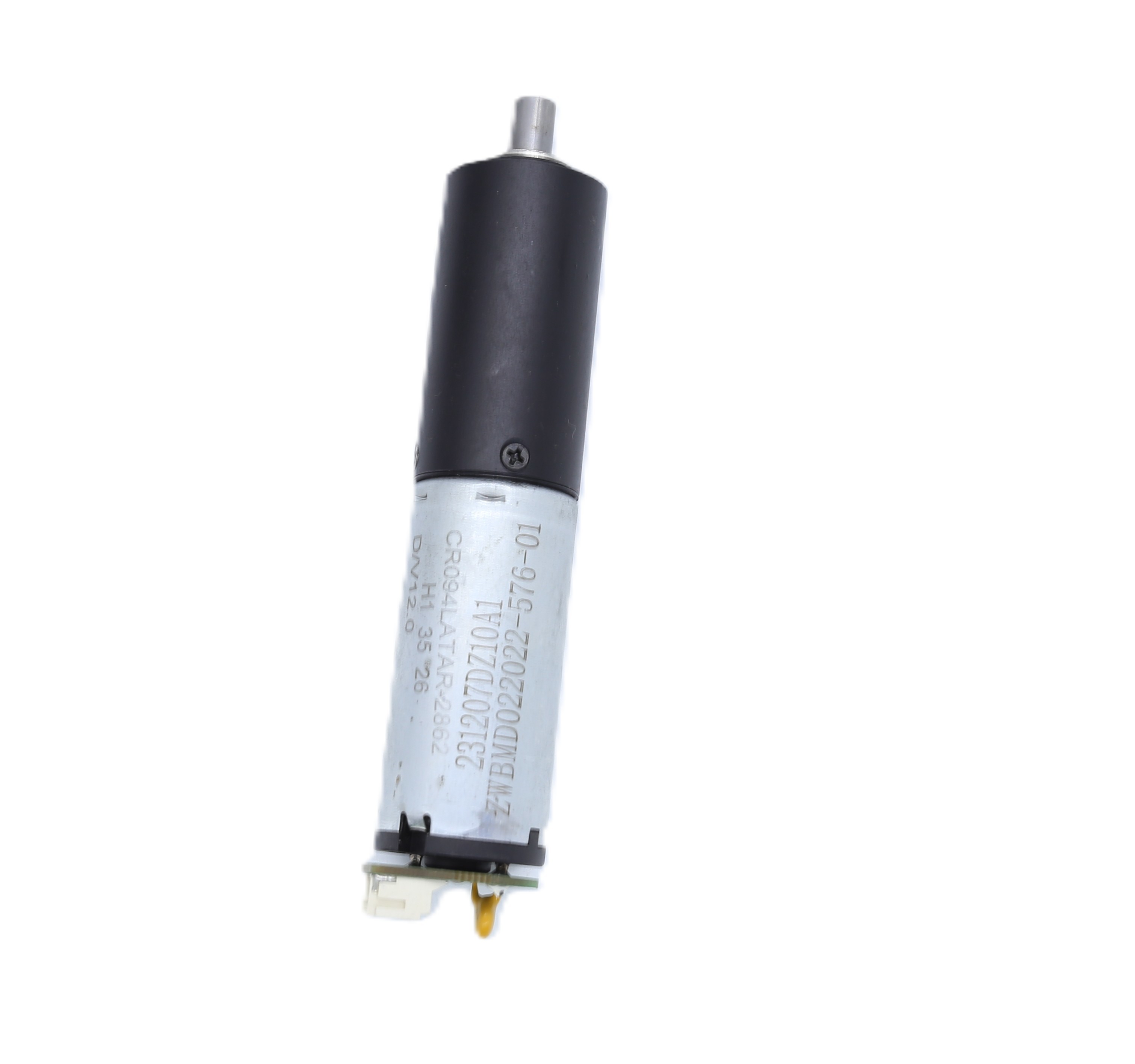

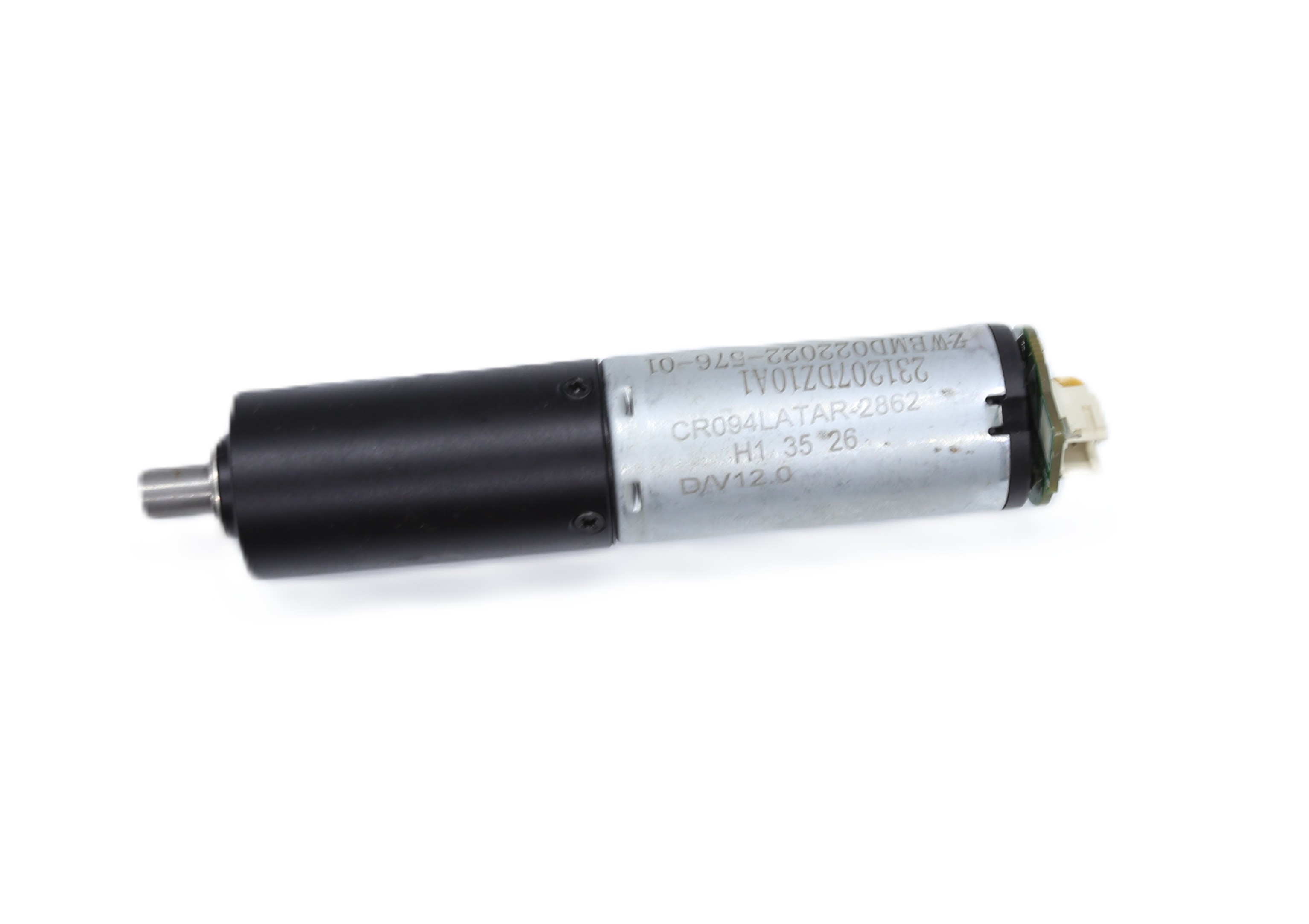

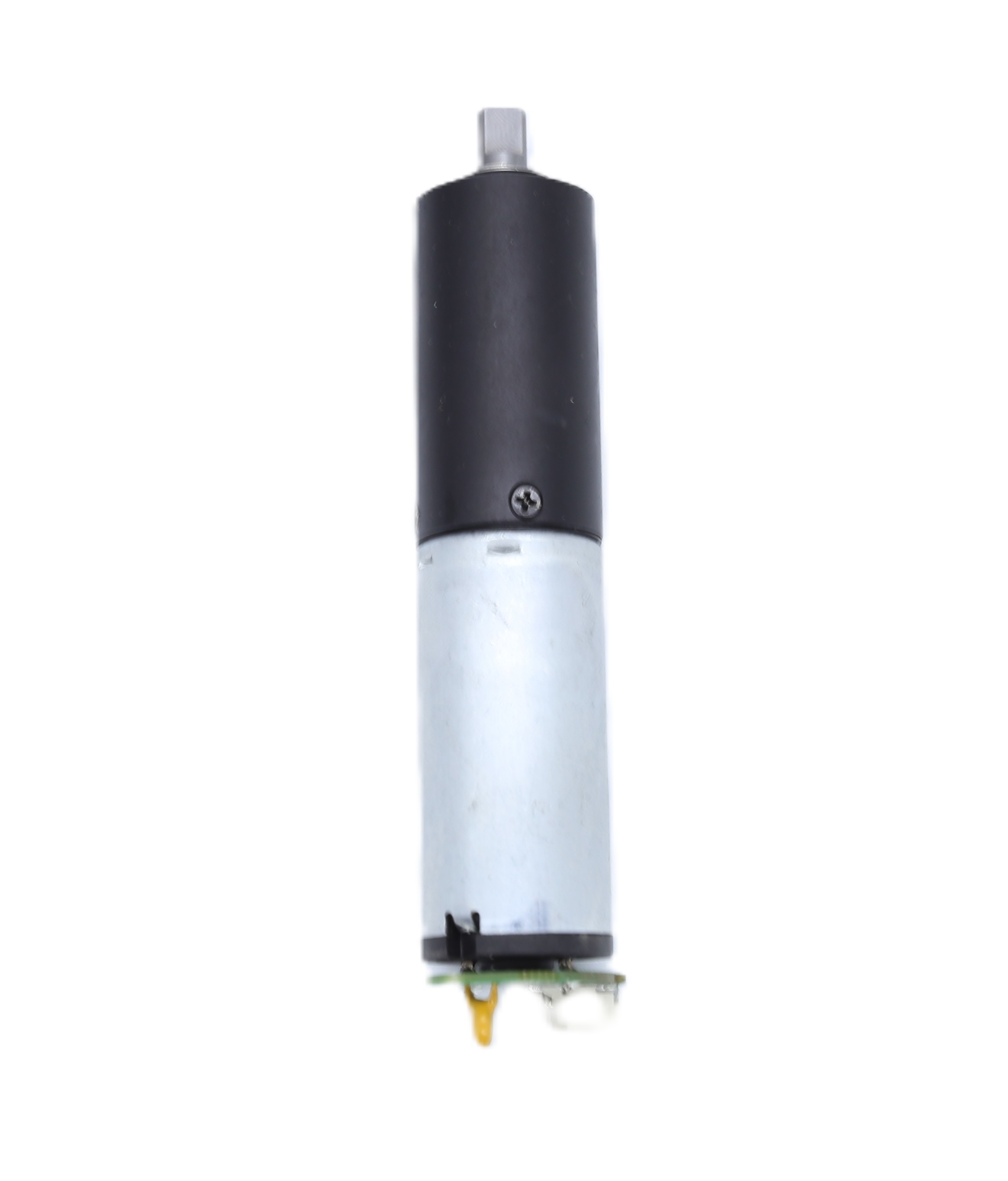

Standard Gearbox Stepper Motor , Step Angle Stepper Motor 2 Phase
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | packed with CTN |
| Delivery Period: | with in 35days |
| Payment Method: | L/C, T/T, D/P |
| Supply Capacity: | 100,000 PCS/month |
Standard Gearbox Stepper Motor
,Gearbox Stepper Motor 2 Phase
,Step Angle Stepper Motor 2 Phase
Gear Box DC Motor Rated Voltage 5 V DC 250 MA/Phase Coil Resistance 12.2±7%/Phase No. Of Phase 2 Phase Step Angle 18°/64 Step Drive Mode 2 Bipolar Drive Excitation Method 2 Phase Exci
| Rated Voltage | 5 V DC | Current Per Phase | 250 MA/phase |
|---|---|---|---|
| Coil Resistance | 12.2±7%/phase | No. Of Phase | 2 Phase |
| Step Angle | 18°/64 Step | Drive Mode | 2 Bipolar Drive |
| Excitation Method | 2 Phase Excitation | Pull-out Torque | More Than 190 Gf.cm At 500 Pps |
| Holding Torque | More Than 450 Gf.cm At 0 Pps | Max Responese Frequency | More Than 1000 Pps |
| Max Starting Frequency | More Than 900 Pps | Insulation Class | Class E For Coils |
| Insulation Strength | 100 V AC For One Second | Insulation Resistance | 500 MΩ DC 500 V |
| Opearating Temperature Range | 0~+55 ℃ |
5V 10m Micro Dc Gear Motor , Low Noise High Torque Small DC Stepper Motor
BLDC Motor has advantages of small size, high power, high efficiency, adjustable speed, long life, no sparkover,etc.
It can widely replace DC Brushed motor, inverter motor, AC asynchronous motor. It's the best solution to match to planetary gearbox and it can also match to normal gearbox. BLDC Motor is the developing direction of transmission and it's the only choice for green energy and driving industry.
It's widely used in car, medical equipments, electrical tools, automatic instrument, home applicance, military industry, environment protection and energy saving industry, aeronaustics industry, office automation, intelligent home, financial machines, game machines, hollow window-blinds, smart toilets, auto racks, power tools, automatic windows, automatic curtains, glass walls, bank ATM machines, automatic cash registers, vending machines and other automated bill machines .
Please let us know the following Parameter if we are lucky to attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
-
Camera
-
label printer
- Electtric Door Locks
-
Label stripping machine
-
ISBN printer
Specifications
| Rated Voltage | 5 V DC |
| Current Per Phase | 250 mA/phase |
| Coil Resistance | 12.2±7%Ω/phase |
| No.of Phase | 2 phase |
| Step Angle | 18°/64 step |
| Excitatation Method | 2 phase excitation |
| Drive Mode | Bipolar drive |
| Pull-out Torque | More than 190 gf.cm at 500 pps |
| Holding Torque | More than 450 gf.cm at 0 pps |
| Max Responese Frequency | More than 1000 pps |
| Max Starting Frequency | More than 900 pps |
| Insulation Class | Class E for coils |
| Insulation Strength | 100 V AC for one second |
| Insulation Resistance | 500 MΩ DC 500 V |
| Opearating Temperature Range | 0~+55 ℃ |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
Torque Curve For Reference
