28BYHJ50-02 Pump Motor Step Angle Stepper Motor 2 Phase 4 Phase
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | CTN OR CUSTOMIZED |
| Delivery Period: | 35DAYS |
| Payment Method: | T/T,D/P,L/C |
| Supply Capacity: | 200000 PCS/MONTH |

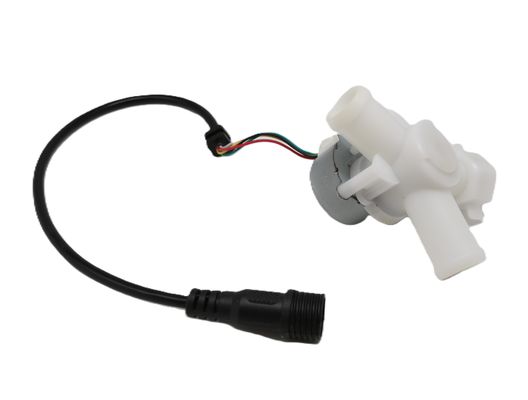

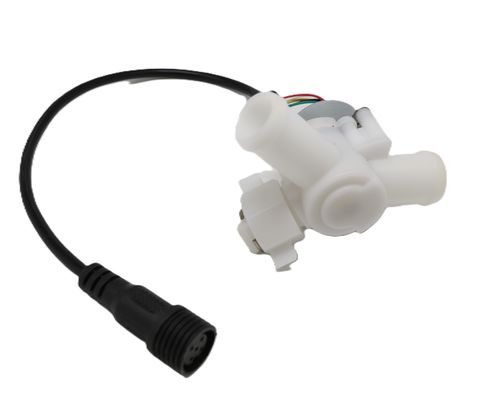

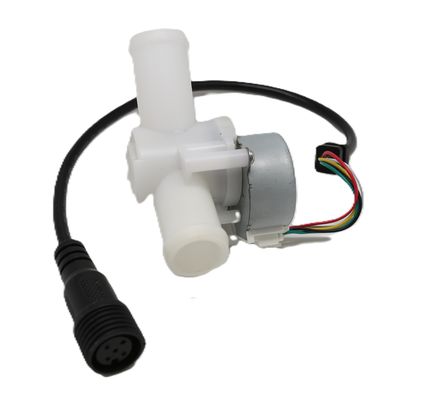

28BYHJ50-02 Pump Motor
,Step Angle Stepper Motor 2 Phase
,Step Angle Stepper Motor 4 Phase
Pump motor Step Angle (Deg.) Phases Voltage (V) Current (A) Resistance (Ω) Inductance (mH) Reduction Ratio No-Load Starting Frequency (pps) Running Torque (g·cm) Lead Wire Specification
o A stepper motor is an electromagnetic mechanical device that converts electrical pulse signals into angular displacement or linear displacement. It has the advantages of high precision, high reliability, and easy control, and is widely used in the following fields:
o Industrial automation and CNC machine tools: It is used to control the movement of the machine tool workbench, the feed of the cutting tool, etc., to achieve precise control of machining dimensions and shapes and ensure machining accuracy.
o Automated production lines, 3D printing, office equipment.
o Medical devices and medical imaging equipment: In devices such as CT and MRI, it is used to control the movement of the scanning bed and the positioning of the detector to ensure the accuracy and stability of imaging, as well as the driving of medical devices.
o Aerospace and intelligent robots: As the driving element of the robot joints, it precisely controls the movement of the robot's arms, legs and other joints, enabling precise movement and attitude control of the robot, allowing the robot to complete various complex tasks.
o Automobile seat adjustment, automobile window control, and so on.
1. Technical Parameters
| Model | Step Angle (Deg.) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Reduction Ratio | No-Load Starting Frequency (pps) | Running Torque (g·cm) | Lead Wire Specification | Wiring Diagram | Outline Diagram |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 28BYHJ50-02 | 15 | 2 | 12 | 0.133 | 90 |
44.6
|
1/50 | 300 | 1700 | — | a | 1 |
| 28BYHJ100-01 | 15 | 2 | 12 | 0.133 | 90 | 44.6 | 1/50 | 280 | 2850 | — | a | 1 |
| 35BYHJ02-04 | 7.5 | 4 | 12 | 0.4 | 30 | 15.4 | 1/2 | 270 | 1500 | UL 1007 26# | b | 2 |
| 35BYHJ05-02 | 7.5 | 4 | 12 | 0.4 | 30 | 18 | 1/5 | 360 | 700 | UL 1007 26# | b | 3 |
| 35BYHJ06-03 | 7.5 | 4 | 12 | 0.4 | 30 | 18 | 1/6 | 360 | 800 | UL 1007 26# | b | 3 |
| 35BYHJ08 | 7.5 | 4 | 12 | 0.4 | 30 | 17 | 1/8.4 | 370 | 800 | UL 1007 26# | b | 3 |
| 35BYHJ10-01 | 7.5 | 2 | 12 | 0.27 | 45 | 52.8 | 1/10.8 | 320 | 1200 | UL 1007 26# | a | 4 |
| 35BYHJ19 | 7.5 | 4 | 12 | 0.4 | 30 | 17 | 1/19 | 360 | 1900 | UL 1007 26# | b | 2 |
| 35BYHJ30 | 7.5 | 4 | 12 | 0.4 | 30 | 17.1 | 1/30 | 360 | 2500 | UL 1007 26# | b | 3 |
| 35BYHJ60 | 7.5 | 4 | 12 | 0.4 | 30 | 17.1 | 1/60 | 360 | 3000 | UL 1007 26# | b | 3 |
| 35BYHJ60-20A | 7.5 | 2 | 12 | 0.4 | 30 | 31 | 1/60 | 420 | 5000 | UL 1529 28# | a | 5 |
| 35BYHJ75-03 | 7.5 | 4 | 24 | 0.5 | 48 | 28 | 1/75 | 410 | 4000 | UL 1007 26# | c | 4 |
| 35BYHJ100-01 | 15 | 2 | 6 | 0.32 | 18.5 | 15 | 1/100 | 310 | 5000 | UL 1529 26# | a | 6 |
| 35BYHJ120 | 7.5 | 4 | 12 | 0.4 | 30 | 17 | 1/120 | 370 | 8000 | UL 1007 26# | b | 3 |
| 35BYHJ266-01 | 7.5 | 4 | 12 | 0.4 | 30 | 16 | 1/266 | 280 | 10000 | UL 1007 26# | b | 7 |
| 35BY48SJ08-07B | 7.5 | 4 | 12 | 0.6 | 20 | 7.8 | 1/8.4 | 560 | 1700 | UL 1007 26# | b | 8 |
| 35BYSJ16 | 7.5 | 4 | 12 | 0.23 | 52.5 | 23 | 1/16 | 470 | 1300 | UL 1007 26# | b | 9 |
| 35BYSJ19 | 7.5 | 4 | 24 | 0.13 | 185 | 92.6 | 1/19 | 430 | 1300 | UL 1007 26# | b | 10 |
| 28BYJ01A | 5.625 | 4 | 12 | 0.06 | 200 | — | 1/64 | 500 | 400 | UL 1061 26# | b | 11 |
| 30BYJ46-01T | 7.5 | 4 | 12 | 0.1 | 120 | — | 1/85.25 | 1000 | 600 | UL 1061 26# | c | 12 |
| 35BYJ01 | 7.5 | 4 | 12 | 0.09 | 130 |
