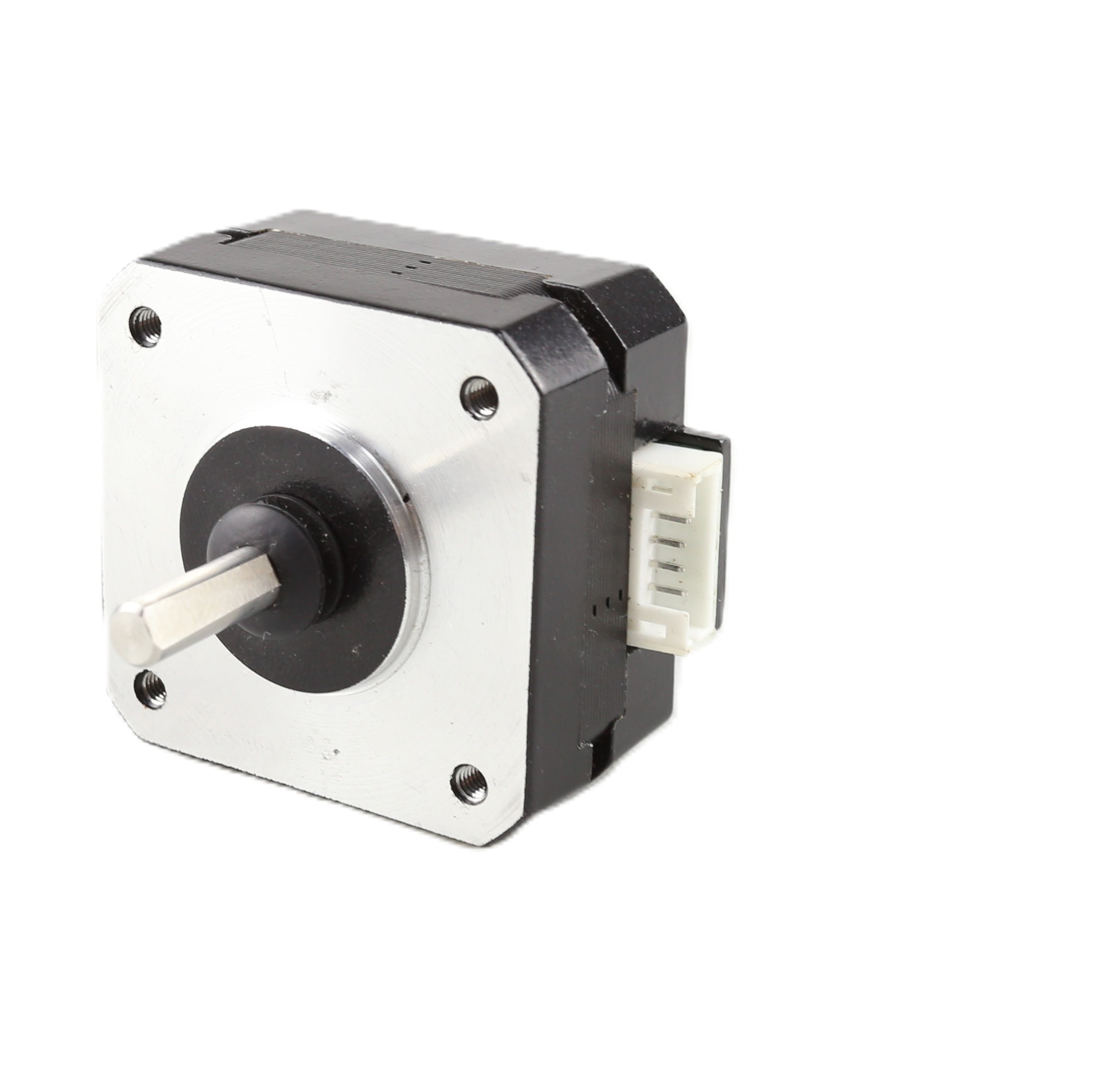

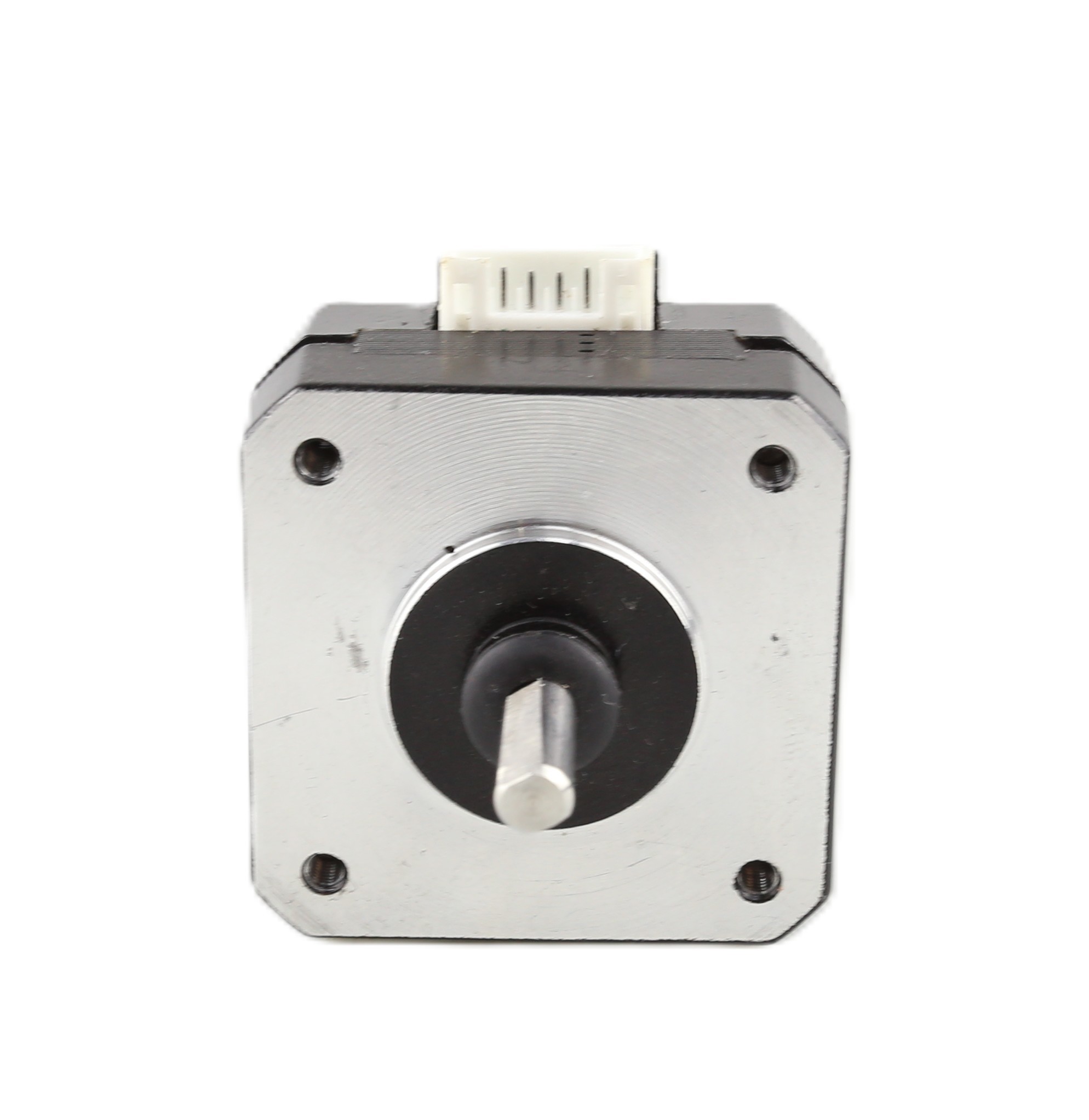

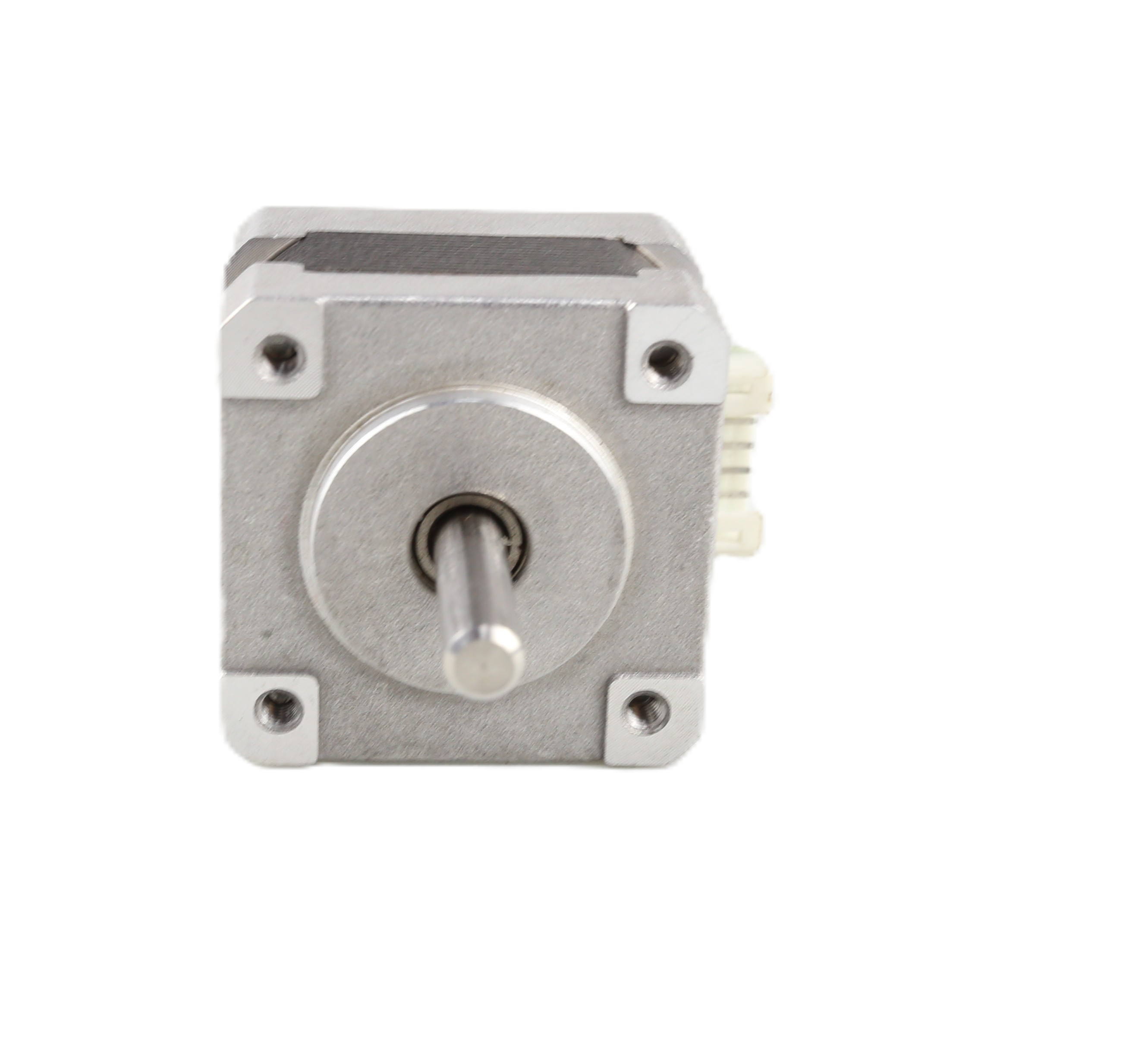

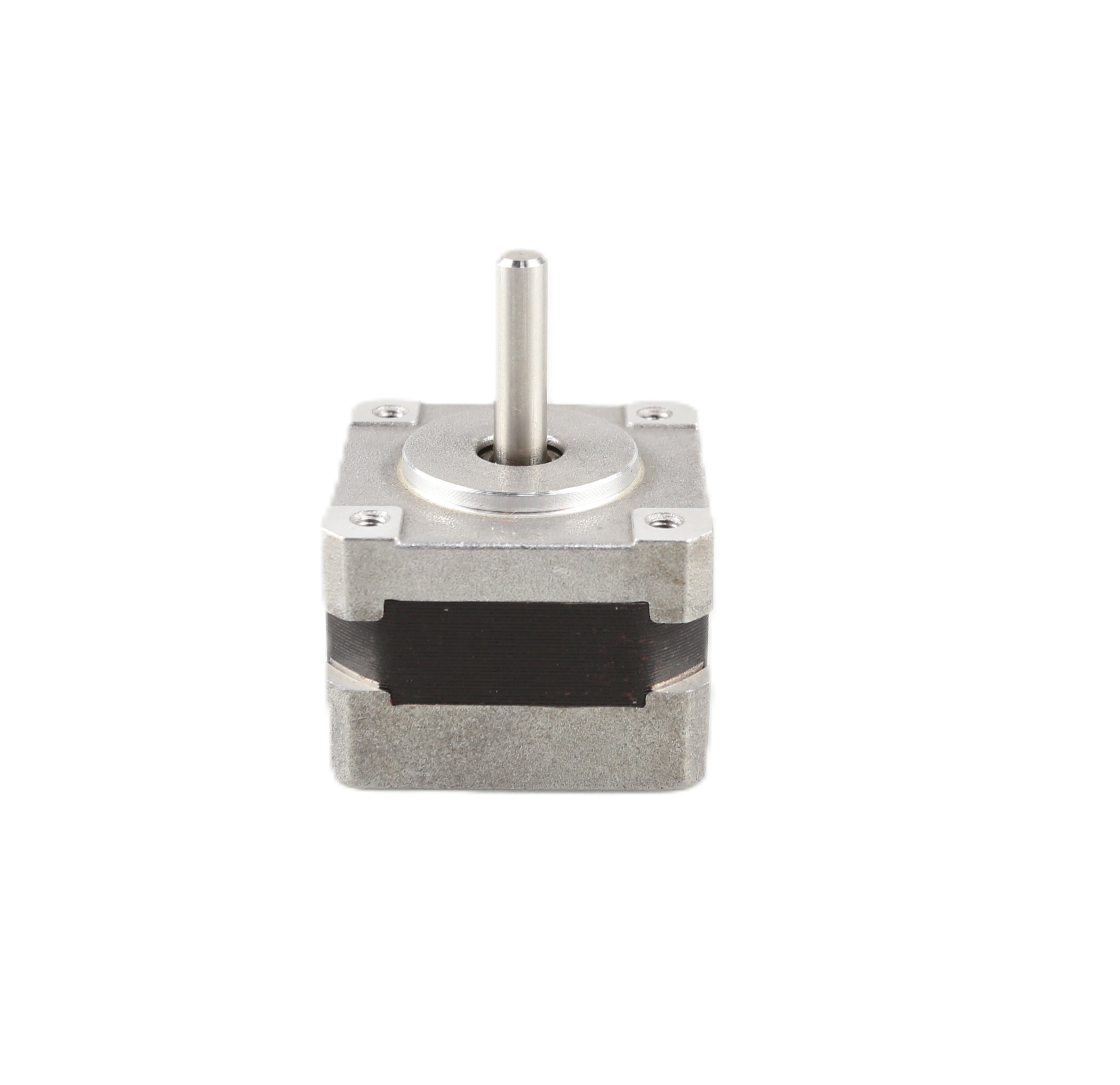

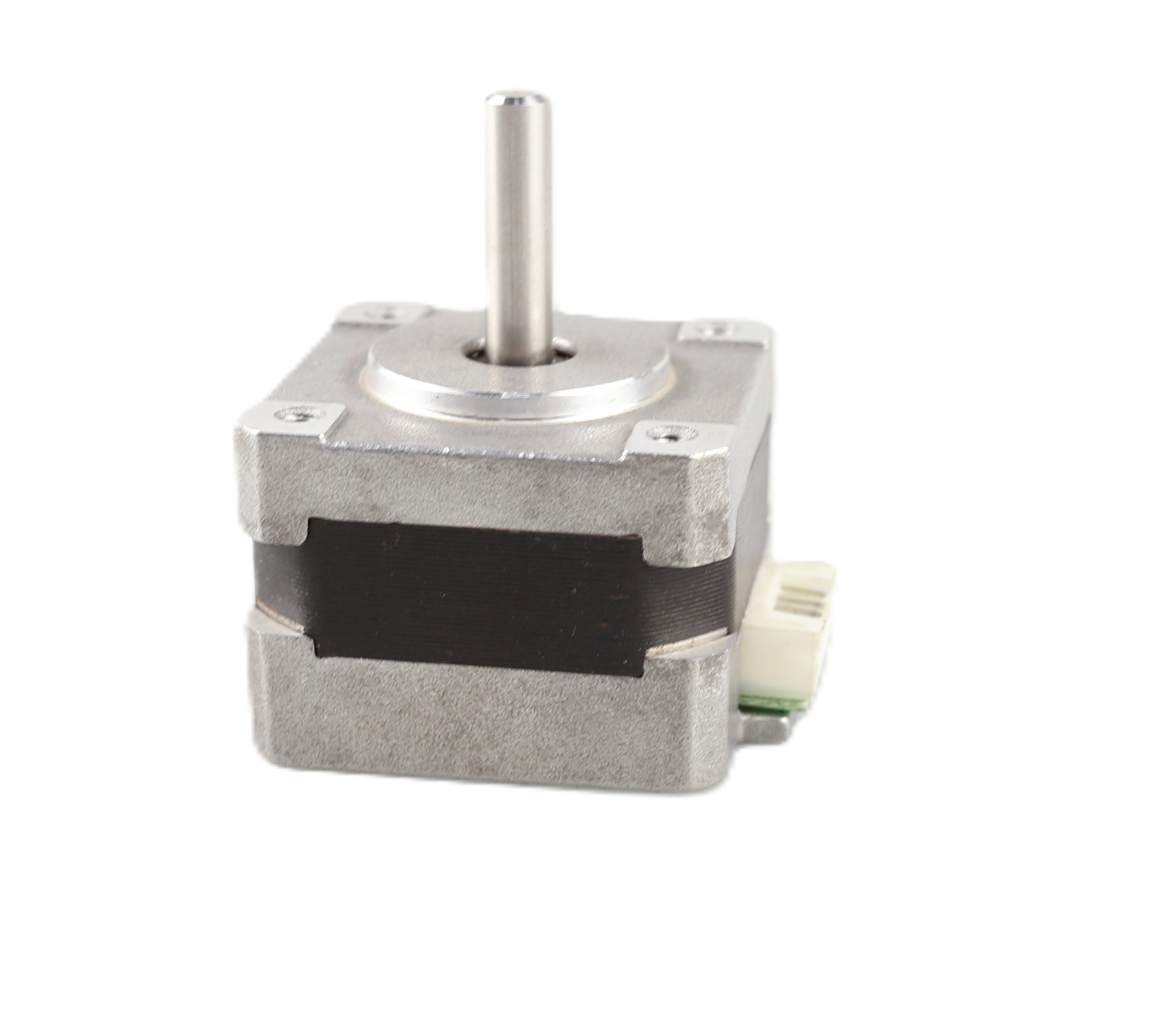

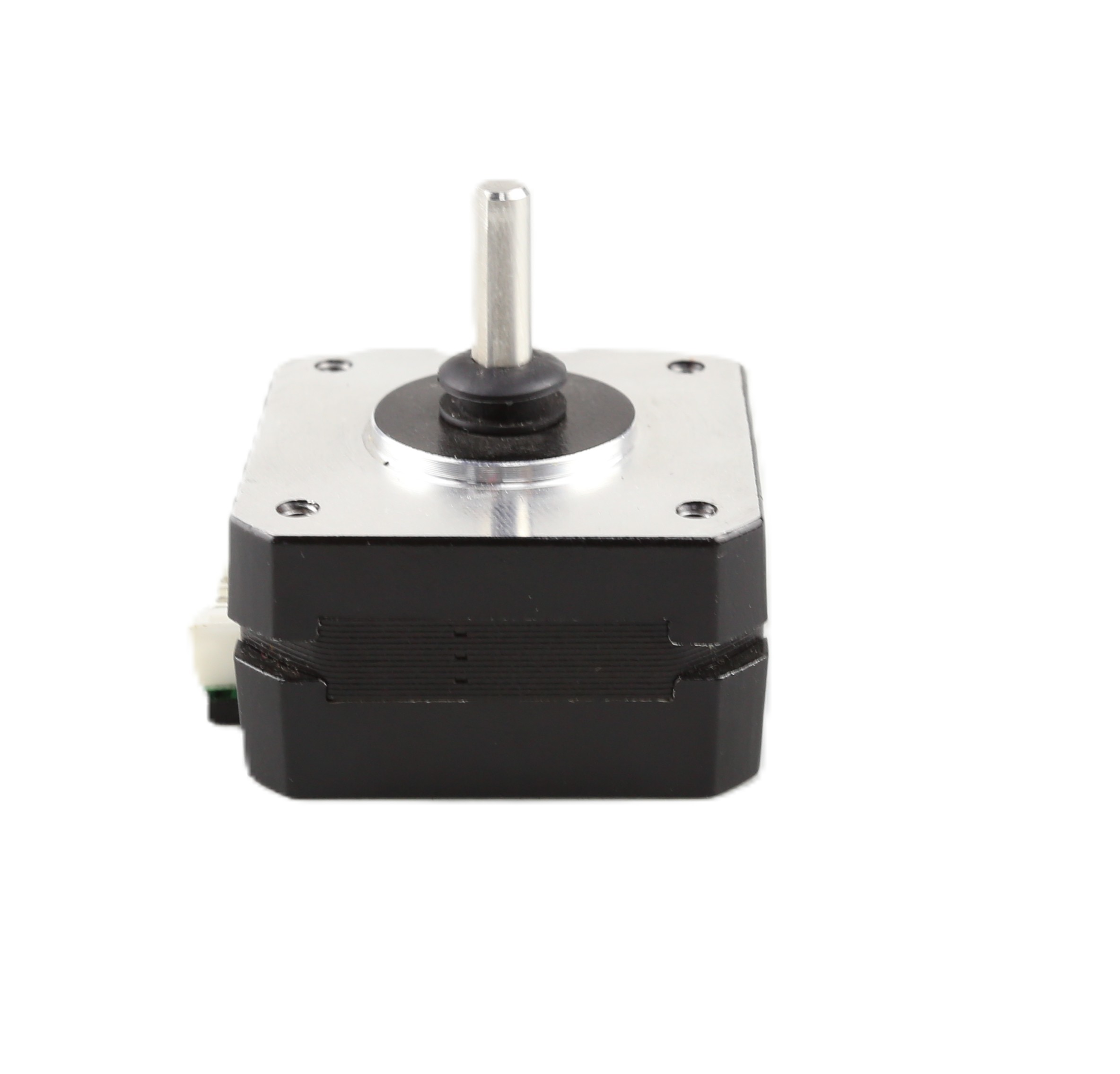

2 Phase Position Control Stepper Motor Step Angle 42BYGH Stepper Motor
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | CTN OR CUSTOMIZED |
| Delivery Period: | 35DAYS |
| Payment Method: | ,T/T,D/P,L/C |
| Supply Capacity: | 100000PCS/MONTH |
2 Phase Position Control Stepper Motor
,Position Control Stepper Motor Step Angle
,42BYGH Stepper Motor
Position Control Stepper Motor 42BYGH Step Angle 0.9° Temperature Rise 80℃ Max Ambient Temperature -20℃~+50℃ Insulation Resistance Dielectric Strength 500VAC For 1 Minute Shaft Radia
| Parameter Name | Parameter Value |
|---|---|
| Step Angle | 0.9° |
| Temperature Rise | 80℃ max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100Ω Min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max. (450g-load) |
| Shaft Axial Play | 0.08 Max. (450g-load) |
| Max. radial Force | 28N (20mm From The Flange) |
| Max. axial Force | 10N |
| Type | Hybrid |
| Phase | 2 |
| Current / Phase | 1.4A |
| Holding Torque | 2.2kgf.cm |
| Step Angle(degrees) | 0.9° |
| Highlight | nema 11 stepper motor, 2 phase hybrid stepper motor |
PRODUCT DESCRIPTION
NEMA17 0.9° 42mm hybrid stepper motor 2 phase motor for 3d printer
Stepper motors are motion systems allowing to have a high positioning precision.
With their high power already at low speed, their stall torque and the possibility to divide the steps in micro steps,
stepper motors can provide direct and precise motions in a small volume.
Permanent magnet and hybrid technologies are used to provide a full range of solutions.
The absence of mechanical commutation gives to these motors a long life time which is usually given by the sleeves
according to the load applied on the shaft.

| Model No. | Step Angle (°) | Motor Length (mm) | Current Per Phase (A) | Resistance / Phase (Ω) | Inductance / Phase (mH) | Holding Torque (kg.cm) | Leads No. | Detent Torque (g.cm) | Rotor Inertia (g.cm²) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 42HM34-1334 | 0.9 | 34 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 200 | 35 | 0.22 |
| 42HM34-0316 | 0.9 | 34 | 0.31 | 38.5 | 33 | 1.58 | 6 | 200 | 35 | 0.22 |
| 42HM34-0956 | 0.9 | 34 | 0.95 | 4.2 | 4 | 1.58 | 6 | 200 | 35 | 0.22 |
| 42HM40-1684 | 0.9 | 40 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | 220 | 54 | 0.28 |
| 42HM40-0406 | 0.9 | 40 | 0.4 | 30 | 30 | 2.59 | 6 | 220 | 54 | 0.28 |
| 42HM40-1206 | 0.9 | 40 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 220 | 54 | 0.28 |
| 42HM48-1684 | 0.9 | 48 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | 250 | 68 | 0.38 |
| 42HM48-1206 | 0.9 | 48 | 1.2 | 3.3 | 4 | 3.17 | 6 | 250 | 68 | 0.38 |
| 42HM48-0406 | 0.9 | 48 | 0.4 | 30 | 38 | 3.17 | 6 | 250 | 68 | 0.38 |
| 42HS60-1684 | 0.9 | 60 | 1.68 | 1.65 | 5 | 5.5 | 4 | 270 | 106 | 0.55 |
