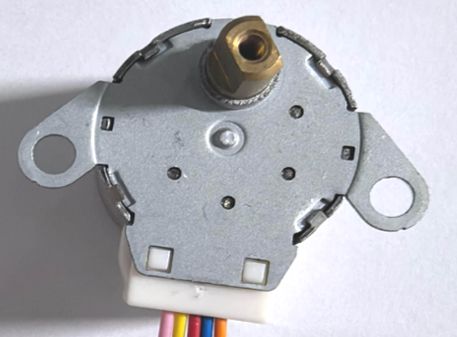

20BYJ46 PM Stepper Motor 5 Wire with 15° Step Angle for Air Conditioners 12V/5V DC
| MOQ: | 5 pcs |
| Price: | 0.5~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
5 Wire Stepper Motor
,15° Step Angle PM Stepper Motor
,12V/5V DC 20BYJ46 Motor
20mm PM Stepper Motor 5 Wire 15° For Air Conditioner
Product Introduction
• DC voltage available in 5V & 12V, resistance up to 250Ω for stable performance.
• 7.5° step angle and pull-in torque of ≥29.4 mN.m, it ensures precise motion and reliable operation.
Product Application
• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.
20BYJ46 Series specifications:
| Model | Voltage(V) | Resistance (Ω) | Step Angle(1-2P)/(2-2P) | Frequency(PPS) | Holding Torque(mN.m) | Self-locating Torque(mN.m) | Max. Starting Rate(PPS) | Max. Slewing Rate(PPS) |
| 20BYJ46 | 5 | 50 | (7.5°/85) /(15°/85) | 400 | ≥29.4 | ≥29.4 | ≥500 | ≥900 |
| 12 | 150 | (7.5°/85) /(15°/85) | 400 | ≥58.8 | ≥29.4 | ≥500 | ≥900 | |
| 12 | 200 | (7.5°/85) /(15°/85) | 400 | ≥39.2 | ≥29.4 | ≥500 | ≥900 |
Friendly Reminder:
The above 20BYJ46 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com
DIMENSIONS: mm
20BYJ46 Torque Curve:
20BYJ46 Series Applications:
Q: Do You Offer OEM Or ODM Service ?
A: Yes.Voltage, Speed, Torque, Power,Dimension And Shaft Etc.. Kindly Send Us Sample Or Share Your Detailed Requirements For Us To Evaluate And Recommend You Best Resolution.
Q: What If My Customized Motor Needs Development Of Mold?
A: First, We Will Try To Find Ready Mold Matching Your Specifications. Or We Can Develop Mold For Mass Production. During Sampling Period, We Try To Make Sample By CNC And With Ready Similar Parts To Save Your Cost Of Testing Samples As What As We Can.
Q: Do You Supply Motor Accessories Such As Patch Cord, Encoder And PCB Etc.?
A: We Can Help You Source In Case You Need.
Q: Can You Also Supply With Terminal Product Related With The Motors?
A: We Can Help Designing And Making Terminal Products To Save Cost And Time.
Q: What's normal lead time of samples and mass production?
A: It takes around 15-20 days to make regular sample and 25-30 days for customized one. It will take about 45 days to complete a 5000pcs
order after samples are confirmed. Mold development time is approx 2-3 months.
Q: What is MOQ?
A: Any quantity is welcome as trial order.
Q: How can you guarantee quality?
A: Sample as per confirmed drawing and data. mass production according to confirmed samples. 100% final inspection before shipment.
Q: What's your after-sale service?
A: Normally one year guarantee after shipment. However, we will always be cooperative to help resolve the problem.
Q: What certificates do you have?
A: All materials passed RohS. Since motors are normally customized and the certification cost and period is different. We can apply for certificates(such as CE, UL,ETL etc.) as per client's request. Certification period normally takes 2-3 months.
Q: Are you manufacture or trading company?
A: We're a manufacturer with professional and experienced technicals,international communicator and after-sales team to be sure of good quality, high efficiency and timely delivery.
Q: Why should I choose you?
A: We're a professional, cooperative and responsible team.
First responsibility then business is our work attitude.
Same price compare quality.
Same quality compare service.
Same service compare responsibility.
