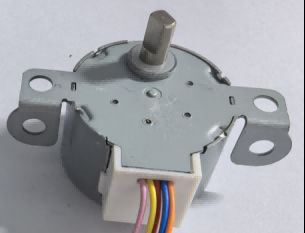

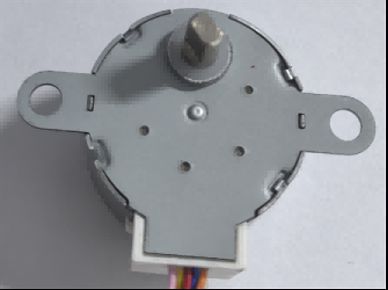

30BYJ46 Mini Type Stepper Motor 30mm Diameter 2-2 Phase 100Ω Resistance for Smart Appliances
| MOQ: | 5 pcs |
| Price: | 0.8~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
30mm Diameter Stepper Motor
,2-2 Phase Stepper Motor
,100Ω Resistance Stepper Motor
12V 30BYJ46 Mini Type Low Noise Stepper Motor For Smart Appliance
Custom BYJ Stepper Motors Tailored to Your Specific Needs:
Logo printing :as your need.
Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
30BYJ46 Series Specifications:
| Model | Voltage(V) | Resistance(Ω) | Step Angle(1-2P)/ (2-2P) | Frequency(PPS) | Pull-in Torque(mN.m) | Self-load Torque(mN.m) | Empty pull-in Frequency(PPS) | Empty pull-out Frequency(PPS) |
| 30BYJ46 | 12 | 100 | (7.5°/85.25) /(15°/85.25) | 100 | ≥147 | ≥78.4 | ≥350 | ≥800 |
| 12 | 130 | (7.5°/85.25) /(15°/85.25) | 100 | ≥98 | ≥39.2 | ≥350 | ≥800 | |
| 12 | 200 | (7.5°/85.25) /(15°/85.25) | 100 | ≥58.8 | ≥39.2 | ≥350 | ≥600 |
30BYJ46 DIMENSIONS: mm
30BYJ46 Torque Curve:
30BYJ46 Stepper Motor Applications:
• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.
Custom BYJ Stepper Motors Tailored to Your Specific Needs
- Logo printing :as your need.
- Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
- Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
- Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
- Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
Part of the micro stepper motor samples:
