30BJY46 Air Conditioner Swing Motor with 2~2 Phase 100Ω 130Ω Or 200Ω Resistance and 5 Wire for Precise Control
| MOQ: | 5 pcs |
| Price: | 1~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days after receiving deposit |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
2~2 Phase 30BJY46 Air Conditioner Swing Motor
,100Ω 130Ω Or 200Ω Resistance Permanent Magnet Synchronous Motor
,5 Wire Stepper Motor

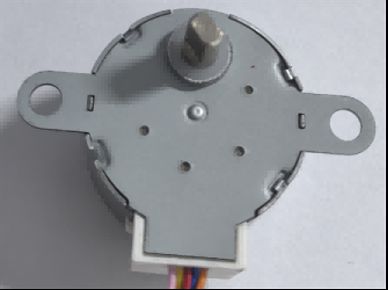

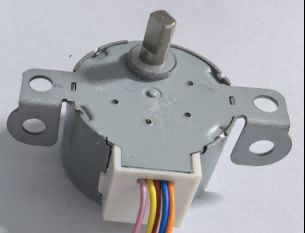

30BJY46 Air Conditioner Swing Motor
Custom BYJ Stepper Motors Tailored to Your Specific Needs:
Logo printing :as your need.
Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
30BYJ46 Series Specifications:
| Model | Voltage(V) | Resistance(Ω) | Step Angle(1-2P)/ (2-2P) | Frequency(PPS) | Pull-in Torque(mN.m) | Self-load Torque(mN.m) | Empty pull-in Frequency(PPS) | Empty pull-out Frequency(PPS) |
| 30BYJ46 | 12 | 100 | (7.5°/85.25) /(15°/85.25) | 100 | ≥147 | ≥78.4 | ≥350 | ≥800 |
| 12 | 130 | (7.5°/85.25) /(15°/85.25) | 100 | ≥98 | ≥39.2 | ≥350 | ≥800 | |
| 12 | 200 | (7.5°/85.25) /(15°/85.25) | 100 | ≥58.8 | ≥39.2 | ≥350 | ≥600 |
30BYJ46 DIMENSIONS: mm
30BYJ46 Torque Curve:
30BYJ46 Stepper Motor Applications:
• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.
Company Introduction:
Changzhou Xinmai Motor Technology Co.,Ltd was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes motors, micro slider motors, micro linear motors,servo motors etc.
The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.
