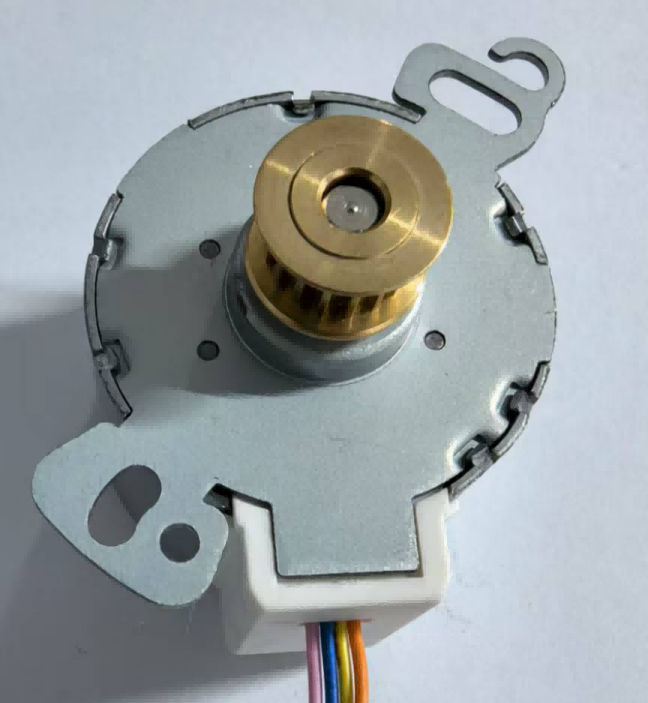

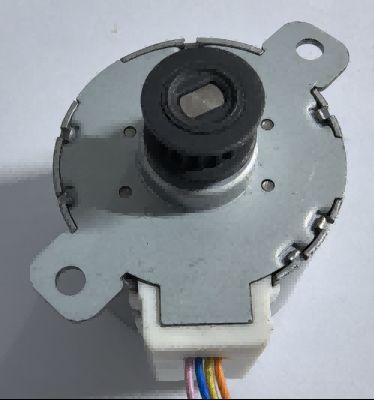

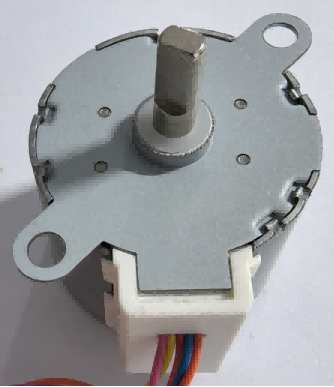

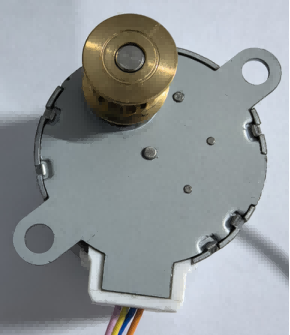

35BYJ412 Stepper Motor 12V for surveillance camera
We are professional manufacturer for 20BYJ46/24BYJ/28BYJ48/24BYJ48/30BYJ/30BYJ46/35BYJ46/35BYJ412 series stepper motor
Motor voltage,speed, torque can be adjusted according to your requirements.
Products are widely used in air conditioning, monitoring, smart toilet, electronic locks, valves, packaging machinery, food machinery, printing machinery, semiconductor processing, medical machinery, textile machinery, office automation equipment, fitness equipment,Engraved, lettering, and other areas of automation and control. We also serve the user at the same time, to provide the entire system control program, motor selection and technical support for the motor control, to undertake the motor control system hardware and software development.
Key Features:
- 12V DC operating voltage
- Smooth and accurate step rotation
- Compact and lightweight design
- 5-wire unipolar configuration
- Pre-soldered JST connector for plug-and-play use
35BYJ412 Series Specifications:
| Model |
Voltage(V) |
Resistance(Ω) |
Step Angle (1-2P)/(2-2P) |
Freq(PPS) |
Pull-in Torque(mN.m) |
Self-locating Torque(mN.m) |
Empty pull in Frequency(PPS) |
Empty pull out Frequency(PPS) |
| 35BYJ212 |
12 |
14 |
(3.75°/22.3) /(7.5°/22.3) |
600 |
≥340 |
≥70 |
≥600 |
≥900 |
| 35BYJ412 |
12 |
120 |
(3.75°/42.5) /(7.5°/42.5) |
100 |
≥147 |
≥78.4 |
≥500 |
≥600 |
| 12 |
150 |
(3.75°/42.5) /(7.5°/42.5) |
100 |
≥98 |
≥78.4 |
≥500 |
≥600 |
35BYJ412 DIMENSIONS: mm
35BYJ412 Torque Curve:
Applications:
• Ideal for robotics, 3D printers, Air conditioners, Electric fans and small automation projects.
