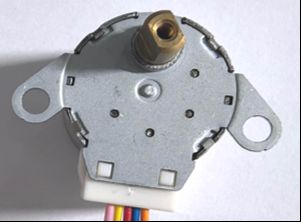

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock

5 pcs
MOQ
1~6 USD/PC
Price
20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock
Features Gallery Product Description Chat Now
Features
Specifications
Step Angle: （5.625°/64） /（11.25°/64）
Material: Copper Wire
Voltage: 12V / 5V DC
Phase: 2~4
Resistance: 20~300Ω
Wire: 5
Application: Fan,Air Conditioner, Camera, Monitor, Air Conditioners, Intelligent Sanitary, Refrigerators, Automatic Door Lock Etc
Name: 20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor For Automatic Door Lock
OEM: Logo, Wire, Holes,parameters,gears
Basic Infomation
Place of Origin: China
Brand Name: XM-Motor
Certification: ISO9001 ROHS
Model Number: 24BYJ48
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 20 to 30 days after receiving deposit
Payment Terms: T/T
Supply Ability: 200,000 PCS/month
Product Description

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock



Product Introduction:

  • Model No: 24BYJ48
  • With same number of poles as the stator, the rotor is composed of permanent magnet material.
  • Features excellent dynamic performance and high output torque



24BYJ48 Stepper Motor Data Sheets:

Model Voltage(V) Resistance(Ω) Step Angle (1-2P) /(2-2P) Frequency(PPS) Pull-in Torque(mN.m) Self-locating Torque(mN.m) No-loading pull-in frequency(PPS) No-loading pull-out frequency(PPS)
24BYJ48 5 20 (5.625°/64) /(11.25°/64) 100 ≥78.4 ≥34.3 ≥500 ≥900
12 50 (5.625°/64) /(11.25°/64) 500 ≥150 ≥49 ≥500 ≥900
12 70 (5.625°/64) /(11.25°/64) 500 ≥13 ≥49 ≥500 ≥900
12 200 (5.625°/64) /(11.25°/64) 400 ≥78.4 ≥34.3 ≥500 ≥900
12 70 (5.625°/16) /(11.25°/16) 400 ≥19.6 ≥19.6 ≥500 ≥900
12 70 (5.625°/32) /(11.25°/32) 400 ≥49 ≥19.6 ≥500 ≥900
12 50 (5.625°/37) /(11.25°/37) 500 ≥100 ≥34.3 ≥500 ≥900
24 200 (5.625°/64) /(11.25°/64) 400 ≥150 ≥34.3 ≥500 ≥900
24 300 (5.625°/64) /(11.25°/64) 400 ≥80 ≥34.3 ≥500 ≥900



Friendly Reminder:

The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com



24BYJ48 DIMENSIONS: mm

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 020byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 120byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 2

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 3

24BYJ48 Stepper Motor Torque Curve:

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 420byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 520byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 620byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 720byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 8

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 9



24BYJ48 Series Applications:


• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.



20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 1020byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 11

20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 12

Workshop :



20byj48 Mini Gear Motor 20mm Permanent Magnet 12V Stepper Motor for Automatic Door Lock 13

Custom BYJ Stepper Motors Tailored to Your Specific Needs



  • Logo printing :as your need.
  • Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
  • Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
  • Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
  • Gear customization: Dupont plastic gears, powder metallurgy gears or POM  clear powder gears for select.
