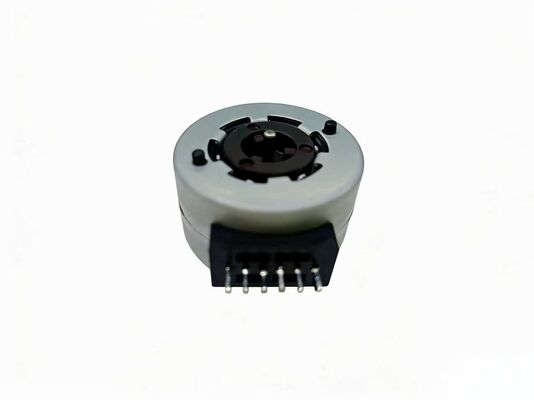

32mm Permanent Magnet (PM) Stepper Motor For Precision Positioning Device
| MOQ: | 100pcs |
| Price: | 0.5~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20~30 days |
| Payment Method: | Western Union,T/T |
| Supply Capacity: | 200,000 PCS/month |
Detail Information
Place of Origin
China
Brand Name
XM-Motor
Certification
ISO9001 ROHS CE
Model Number
32BY46
Material:
Copper Coil
Rated Voltage:
5~12V DC
Product Sizes:
25*12.4mm
Step Angle:
7.5 Or 15
Pull-in Torque:
≥600 Gf.cm
Noise:
≤35
Services:
OEM / ODM
Sample Time:
7 Days
Inner Package:
Anti-static Bag + Foam Fixed
Product Description
Product Overview
The 32BY46 is a compact permanent magnet (PM) stepper motor, primarily designed for office automation (OA) equipment and other space-constrained applications. It is widely recognized for its small footprint, low noise, and high reliability.
Key Features
- Structural Design: Built with a permanent magnet rotor, metal housing, and copper wire windings, it offers excellent wear resistance and corrosion resistance.
- Installation Compatibility: Equipped with a multi-pin interface, it enables direct connection to the control boards of office equipment, simplifying the assembly process.
- Performance Advantages: Operates with low noise and minimal temperature rise, suitable for continuous long-term use, and complies with RoHS environmental standards.
Typical Specifications (Reference for Similar Series)
- Outer Diameter: Approximately 32mm (the "32" in the model name indicates the flange diameter)
- Step Angle: Commonly 7.5° or 15°, with some models incorporating built-in reduction gears
- Rated Voltage: 5V~12V DC
- Holding Torque: Approximately 0.02~0.05N·m, ideal for light-load applications
- Operating Temperature Range: -20℃~+50℃
Main Applications
This motor is ideal for scenarios requiring compact size and low noise:
- Office Equipment: Paper feeding and scanning mechanisms in printers, scanners, and fax machines
- Consumer Electronics: Drive components in optical disc drives and smart door locks
- Small Automation Devices: Micro valves and precision positioning systems
Core Technical Parameters
| Parameter | Typical Value | Unit |
|---|---|---|
| Step Angle | 7.5° / 15° | Degrees (°) |
| Rated Voltage | 5V DC / 12V DC | V DC |
| Phase Resistance | 70Ω ±10% | Ω |
| Drive mode | unipolar | |
| Drive circuit | H-bridge drive | |
| Insulation resistance | ≥100wΩ | wΩ |
| Insulation voltage | AC 500 V | 1 min |
Interface & Installation
- Connector: 6-pin PCB header (compatible with standard OA equipment control boards)
- Mounting: Flange-mounted with M2 screws (standard pitch)
- Samples:
- Q2: Do you provide samples?
A2: Yes, we support sample orders (MOQ=1pc). Sample delivery time is 1-2 working days, and the sample fee can be refunded when you place a bulk order.
Q3: Can I customize the cable length/connector?
A3: Yes, we provide OEM/ODM customization service. You can tell us your required cable length, connector type and other requirements, and we can customize it according to your needs.
Q4: What is your delivery time for bulk orders?
A4: For in-stock products, the delivery time is 3-5 working days; for customized products, the delivery time is 7-15 working days (depending on the order quantity).
Q5: What shipping methods do you support?
A5: We support DHL/FedEx/UPS/TNT for fast delivery, and sea/air shipping for bulk orders. We will choose the most cost-effective shipping method according to your order quantity and delivery address.
We are a professional manufacturer of micro stepper motors with over 12 years of production experience. Our motors has passed strict quality inspection, and the product quality is guaranteed.
If you have any questions about the product model matching, customization, price or delivery, please feel free to contact us! We will reply to you within 24 hours and provide you with the most professional product solutions and the most favorable price.
Looking forward to your inquiry and cooperation!
For bulk orders, custom shaft lengths, windings, or lead wires are available upon request.
Contact us for technical support or customized solutions.
