Name: Small Geared Stepper Motor Permanent Magnet 12V Stepper Motor High Torque
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: 24BYJ48
Price: 5.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Phase No: 4 Phases (Uni-polar)

Resistance: 60~300Ω

Voltage: 12V

Step Angle: 5.625 °/64

Material: Copper Wire

Stepper Motor: 4 Wire Stepper Motor

Name: Small Geared Stepper Motor Permanent Magnet 12V Stepper Motor High Torque

Highlight:

Geared Stepper Motor Permanent Magnet

Small Geared Stepper Motor 12V

12V Stepper Motor High Torque

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: 24BYJ48

Payment & Shipping Terms

Packaging Details: CTN or customized

Delivery Time: 35days

Payment Terms: T/T,D/P,L/C

Supply Ability: 100000pcs/month

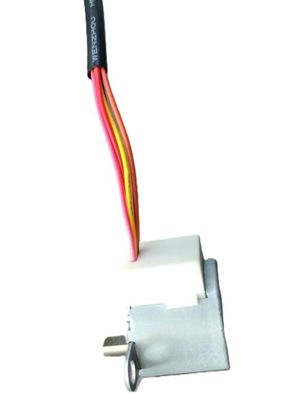

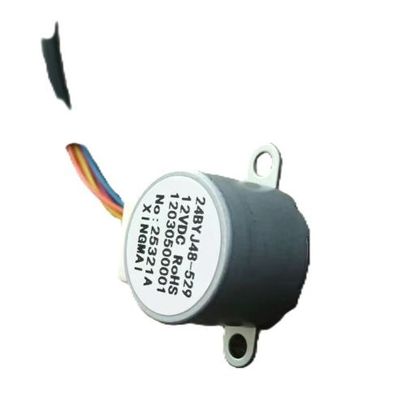

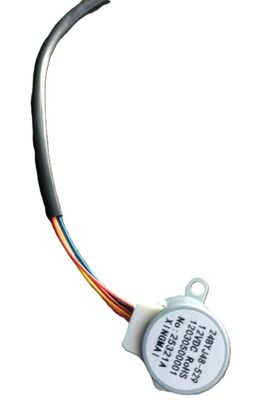

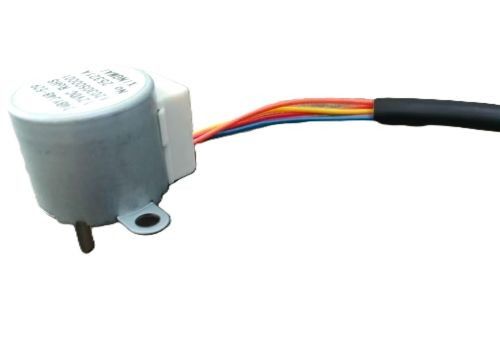

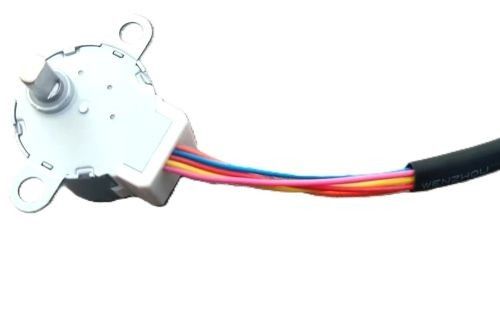

Gallery

Small Geared Stepper Motor Permanent Magnet 12V Stepper Motor High Torque

Product Description

Small Geared Stepper Motor Permanent Magnet 12V Stepper Motor High Torque

Permanent Magnet Geared Stepper Motor 24BYJ48-529 motor,geared motors

o A stepper motor is an electromagnetic mechanical device that converts electrical pulse signals into angular displacement or linear displacement. It has the advantages of high precision, high reliability, and easy control, and is widely used in the following fields:

o Industrial automation and CNC machine tools: It is used to control the movement of the machine tool workbench, the feed of the cutting tool, etc., to achieve precise control of machining dimensions and shapes and ensure machining accuracy.

o Automated production lines, 3D printing, office equipment.

o Medical devices and medical imaging equipment: In devices such as CT and MRI, it is used to control the movement of the scanning bed and the positioning of the detector to ensure the accuracy and stability of imaging, as well as the driving of medical devices.

o Aerospace and intelligent robots: As the driving element of the robot joints, it precisely controls the movement of the robot's arms, legs and other joints, enabling precise movement and attitude control of the robot, allowing the robot to complete various complex tasks.

o Automobile seat adjustment, automobile window control, and so on.

Small Geared Stepper Motor Permanent Magnet 12V Stepper Motor High Torque 0

24BYJ Technical specifications:

Model	Voltage(V)	Resistance(Ω)	Step Angle (1-2P) /(2-2P)	Frequency(PPS)	Pull-in Torque(mN.m)	Self-locating Torque(mN.m)	No-loading pull-in frequency(PPS)	No-loading pull-out frequency(PPS)
24BYJ48	5	20	(5.625°/64) /(11.25°/64)	100	≥78.4	≥34.3	≥500	≥900
	12	50	(5.625°/64) /(11.25°/64)	500	≥150	≥49	≥500	≥900
	12	70	(5.625°/64) /(11.25°/64)	500	≥13	≥49	≥500	≥900
	12	200	(5.625°/64) /(11.25°/64)	400	≥78.4	≥34.3	≥500	≥900
	12	70	(5.625°/16) /(11.25°/16)	400	≥19.6	≥19.6	≥500	≥900
	12	70	(5.625°/32) /(11.25°/32)	400	≥49	≥19.6	≥500	≥900
	12	50	(5.625°/37) /(11.25°/37)	500	≥100	≥34.3	≥500	≥900
	24	200	(5.625°/64) /(11.25°/64)	400	≥150	≥34.3	≥500	≥900
	24	300	(5.625°/64) /(11.25°/64)	400	≥80	≥34.3	≥500	≥900

24BYJ48 Stepper Motor Production:
