Product Description:
A Permanent magnet PM stepper motor is a type of open loop stepper motor that is commonly used in various applications due to its precision and reliability. This particular stepper motor features a step angle of 1.8 degrees, making it ideal for applications that require precise positioning and control.
With two phases, the Permanent magnet PM stepper motor is designed to provide smooth and accurate motion control. The two-phase configuration allows for better control over the motor's movement, making it suitable for small reduction stepper motor applications where precise positioning is essential.
The shaft diameter of 8 mm ensures compatibility with a wide range of applications, providing versatility and ease of integration. Whether used in industrial automation, robotics, or 3D printing, this stepper motor can deliver consistent performance and reliable operation.
One of the key features of the Permanent magnet PM stepper motor is its holding torque accuracy of ±10%. This high level of accuracy ensures that the motor can maintain its position even under varying loads or external disturbances, making it a dependable choice for applications that require stability and precision.
Operating at a rated voltage of 24 V, this stepper motor offers efficient performance while minimizing power consumption. The rated voltage provides the necessary power to drive the motor effectively, making it suitable for high speed stepper motor applications where quick and precise movements are required.
In conclusion, the Permanent magnet PM stepper motor is a versatile and reliable choice for a wide range of applications. With its precise step angle, two-phase configuration, 8 mm shaft diameter, ±10% holding torque accuracy, and 24 V rated voltage, this stepper motor is well-suited for open loop stepper motor applications that demand small reduction and high speed capabilities.
Product Details
| Type |
Gearbox Stepper Motor |
Phase No. |
4 Phases (Uni-polar) |
| Coil Resistance |
100Ω/phase |
Rated Voltage |
12V DC |
| Gear Ratio |
64:1 |
Step Angle |
5.625 °/64 |
| Highlight |
64:1 ratio 28BYJ48 stepping motor
,
28mm 28BYJ48 stepping motor
,
4 phases 28BYJ48 stepping motor
|
Product Description
Efficient 28mm High-Torque 28BYJ48 Unipolar 4 phases 64:1 ratio geared reducer stepping motor
This is a 28mm diameter permanent magnet stepper motor with 64:1 gear ratio gearbox.
This is an uni-polar motor with 4 phases, 5 wires.
The red cable is common line in the middle of each phase.
With low price and reliable quality, this motor is widely used in home appliance industries, such as air conditioning, smart home system, smart toilet and so on.
We provide customization service on gear ratio, coil resistance, phase number, and connector types.
Customers can customize motor’s parameter based on specific requirement, we have 16:1 to 85:1 gear ratio for option.
Parameter:
| Model No. |
28BYJ48 |
| Motor diameter |
28mm |
| Phase No. |
4 phases(Unipolar) |
| Driving method |
1-2 phase driving (half step driving) |
| Step Angle |
5.625°/64 |
| Coil resistance |
100Ω/phase |
| Rated voltage |
12V DC |
| Max starting frequency(12V) |
>600 PPS |
Customization options:
Model No.: 28BYJ48
Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step
Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable
|
Voltage
(V)
|
Resistance
(Ω)
|
Pull-in torque
100PPS
(mN*m)
|
Detent Torque
(mN*m)
|
Unload pull-in
Frequency
(PPS)
|
| 5 |
18 |
≥98 |
≥29.4 |
≥500 |
| 12 |
60 |
≥117 |
≥29.4 |
≥500 |
| 12 |
70 |
≥68.7 |
≥29.4 |
≥500 |
| 12 |
200 |
≥68.7 |
≥29.4 |
≥500 |
| 12 |
300 |
≥58.8 |
≥29.4 |
≥500 |
Design drawing(Unit:mm)

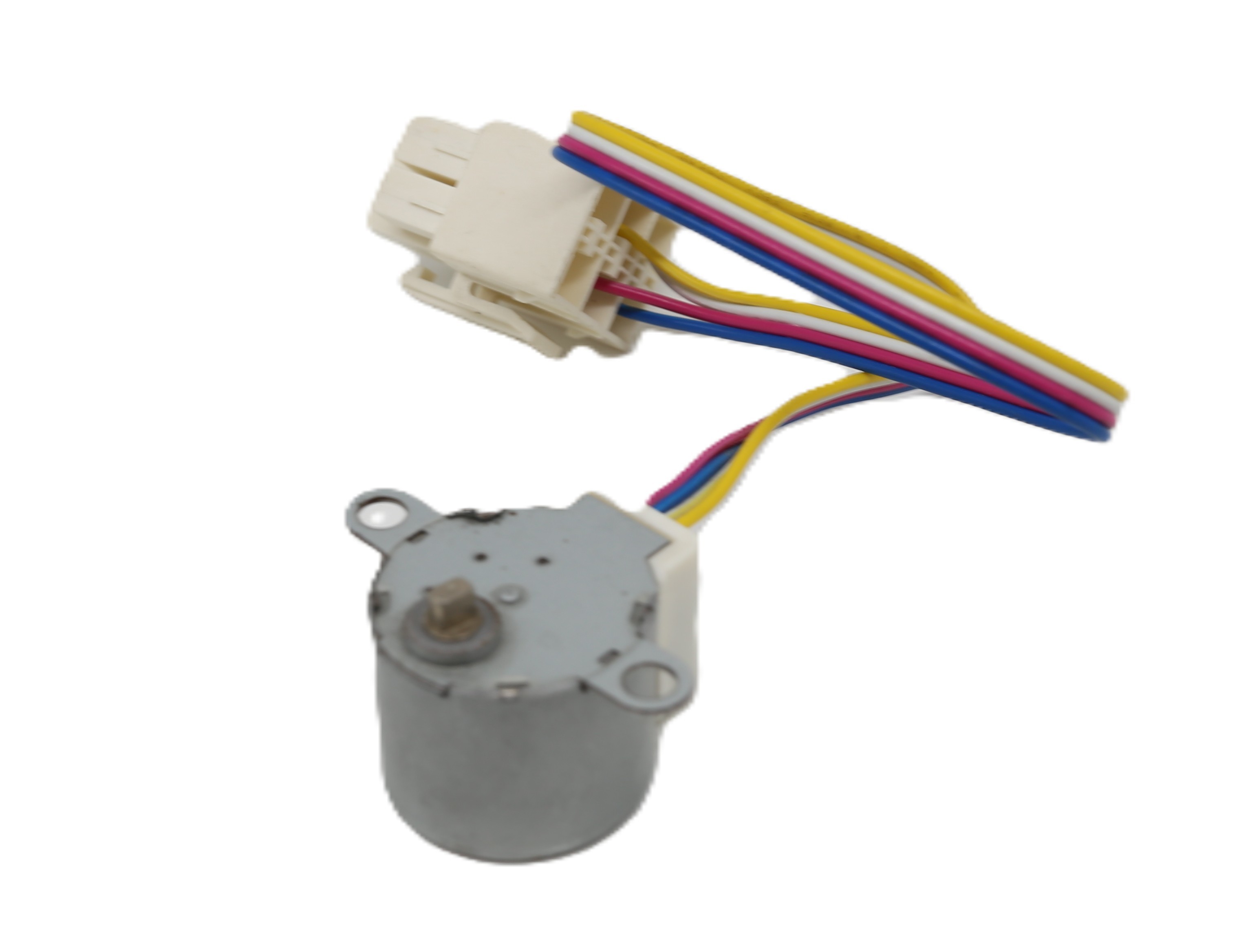

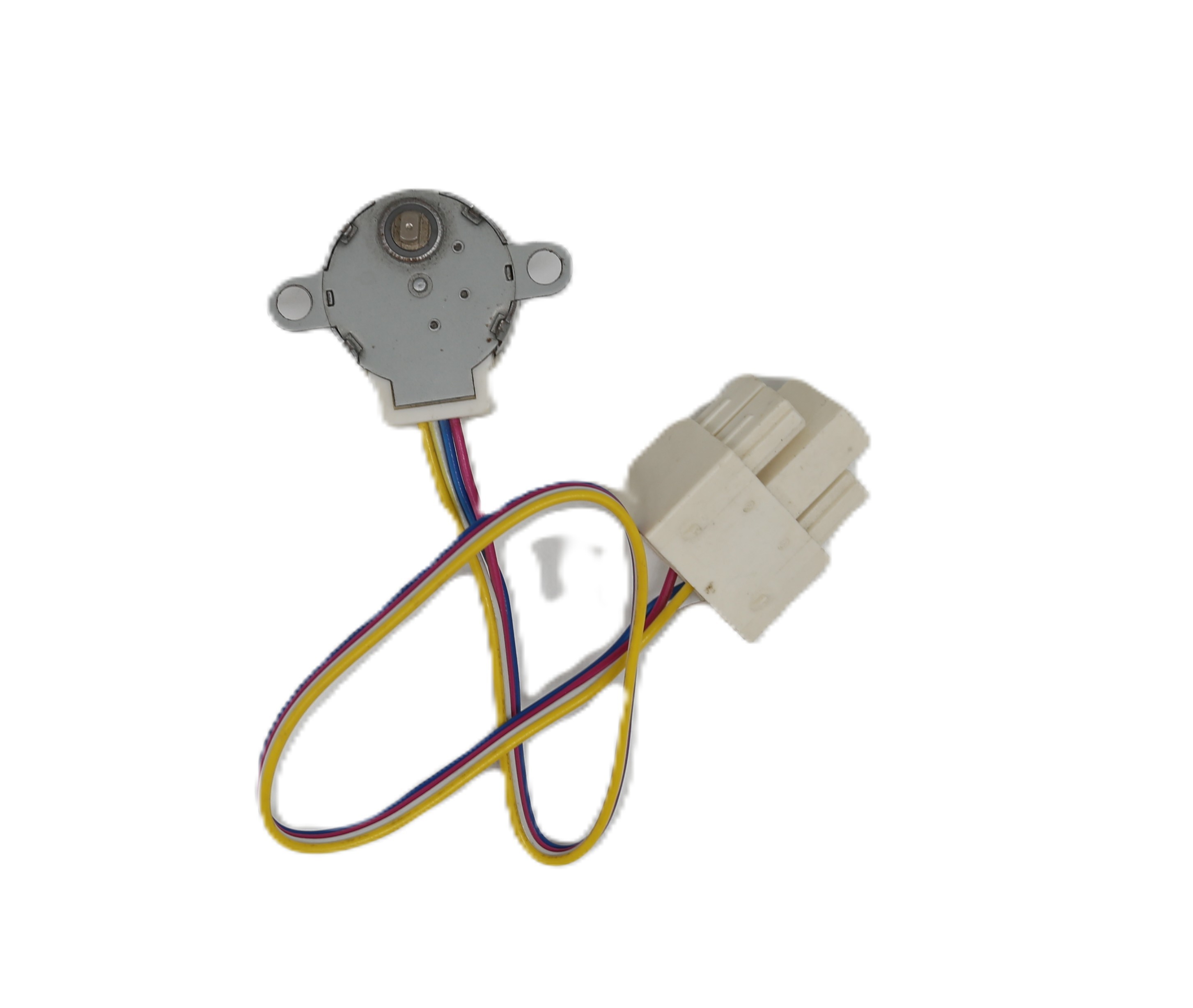

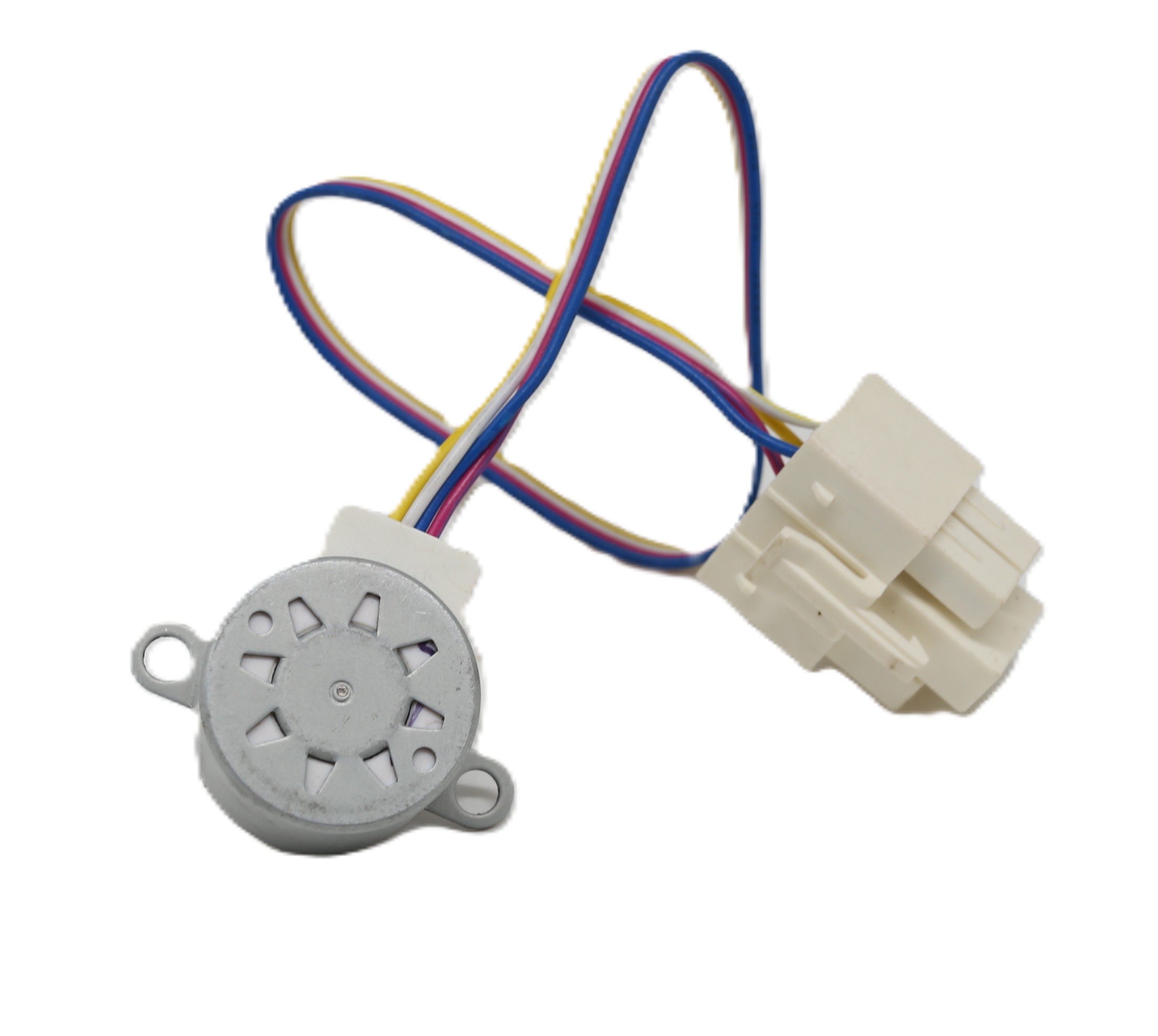

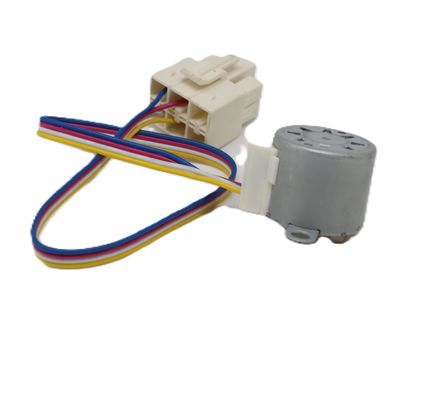

Product display:
Support and Services:
The Product Technical Support and Services for the Permanent magnet PM stepper motor include:
- Assistance with motor selection and sizing
- Installation support and guidance
- Troubleshooting and diagnostics
- Repair and maintenance services
- Technical documentation and resources
