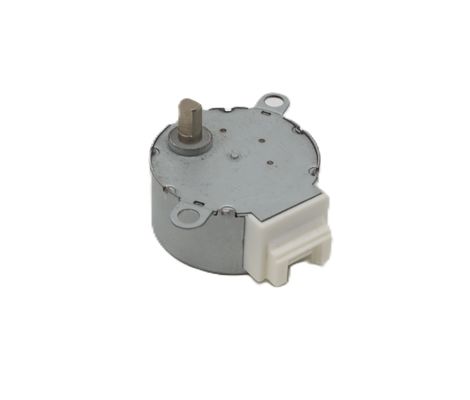

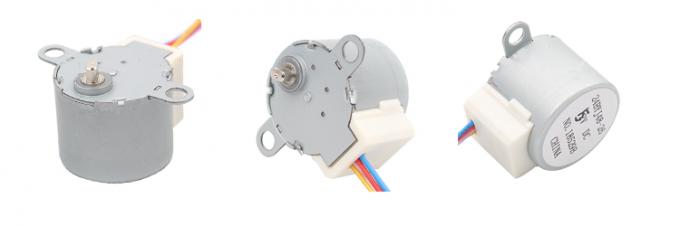

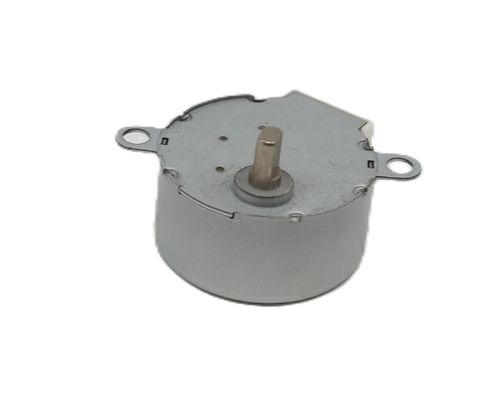

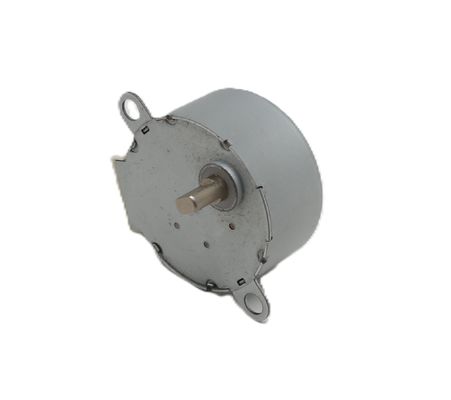

5V 24BYJ48 permanent magnet motor 2 phase 4 wire 1/64 ratio stepper motor
This product is mainly used for sanitary ware, thermostatic valve, hot water faucet, automatic adjustment of water temperature and water flow, etc.
At the same time, it can realize other fields that require precise control. Due to the realization of open-loop control, low-cost position control is realized.
This is a pm reduction stepper motor with a diameter of 28mm,Out put gear with friction clutch
The gear ratio of this motor is 16:1, 25:1, 32:1, 48.8:1, 64:1, 85:1.
The motor has a step angle of 5.625°/64 and is driven by 1-2 phase excitation or 2-2 phase excitation.
Rated voltage: 5VDC; 12VDC; 24VDC
Used in gas valves, water purifier valves, instruments and other automatic control areas of precision control.
At the same time, the external wiring part can be used according to customer requirements for various types and lengths of connecting lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys, V-grooves and turbine screws.
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!

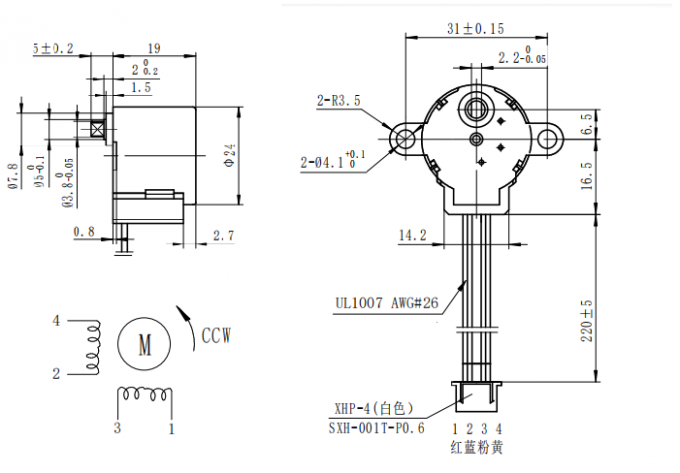

Mechanical Dimension:MM
Parameters
| Voltage (V) |
Resistance(Ω) |
Pull-in torque 100PPS(mN*m) |
Detent torque(mN*m) |
Unload pull-in Frequency(PPS) |
| 5 |
18 |
≥98 |
≥29.4 |
≥500 |
| 12 |
60 |
≥117 |
≥29.4 |
≥500 |
| 12 |
70 |
≥68.7 |
≥29.4 |
≥500 |
| 24 |
200 |
≥68.7 |
≥29.4 |
≥500 |
| 24 |
300 |
≥58.8 |
≥29.4 |
≥500 |
Typical Applications
- Smart Toilet
- Smart kitchen
- Air Conditioning
- Refrigerator
- Vending Machine
- Entertainment Equipment
Specifications
| PRODUCT NAME |
24BYJ48 PM Stepping Motor Gearbox |
| MODEL |
24BYJ48-26 |
| STARTING FREQUENCY |
400 PPS min. (AT 5V DC) |
| RUNNING FREQUENCY |
450PPS min. (AT 5V DC) |
| DETENT TORQUE |
29.4mN.m |
| RESISTENCE |
100MΩ±7%/phase |
| OEM & ODM SERVICE |
AVAILABLE |
Features & Advantage
1. High precision positioning
Since steppers move in precise repeatable steps, they excel in applications requiring precise
positioning, by the number of steps the motor moves
2. High Precision speed control
Precise increments of movement also allow for excellent control of rotational speed for process
automation and robotics. The rotational speed is determined by the frequency of the pulses.
3. Pause and holding function
With control of the drive, the motor has lock function (there is current through motor windings, but
the motor does not rotate), and there is still a holding torque output.
4. Long life & low electromagnetic interference
The stepper motor has no brushes, and does not need to be commutated by brushes like a brushed
DC motor. There is no friction of the brushes, which increases the service life, has no electric sparks, and reduces electromagnetic interference.
