Name: Permanent Magnet Synchronous Motor
Construction: PM
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Highlight:

Permanent Magnet Micro DC Motor 8V

,

Small Permanent Magnet Motor 6 Wire

,

PMSM DC Motor 4 Phase

Basic Infomation
Place of Origin: China
Brand Name: XM-Motor
Certification: ISO9001
Model Number: SM35-048-372
Payment & Shipping Terms
Packaging Details: packed with CTN
Delivery Time: with in 35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100,000 PCS/month
Product Description

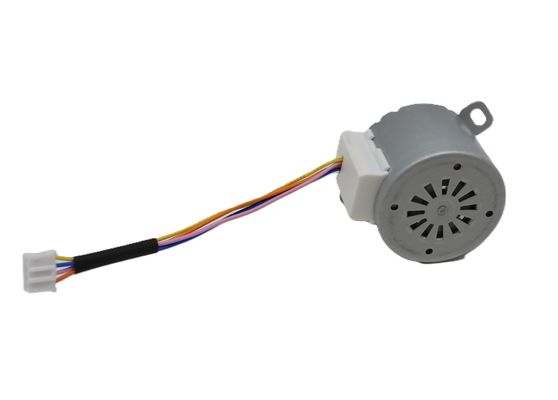

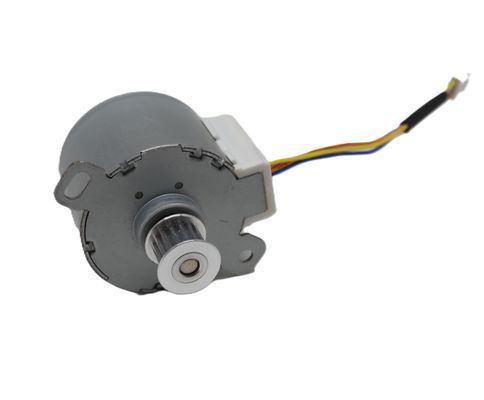

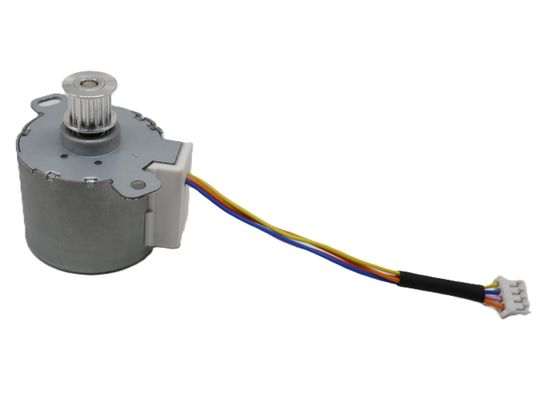

Permanent Magnet Dc Motor ,4 Phase Micro Stepper Motor

Product Description:

Product Details
Type Gear Motor Construction Permanent Magnet
Continuous Current(a) Customized Certification ROHS
Voltage(v) 8 V Phase 4
Highlight

small permanent magnet motor

,

permanent magnet dc motor

,

4 Phase Micro Stepper Motor

Product Description

geared stepper motor 4 phase 6 wires 7.5° pm stepper motor high torque stepper motor with gearbox

SM35-048-372 micro stepper motor awhich can be customized according to customer needs.

Suitable for printers, scanners, monitors, etc.


Motor basic step angle is 7.5 degrees, that is, 48 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements.

Precise control of the rotating position of the field.


Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.

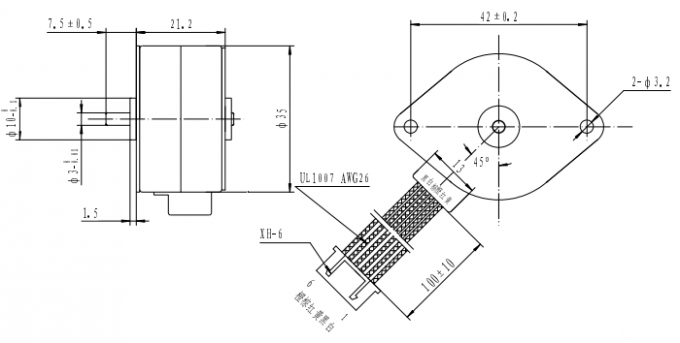

Mechanical Dimension:MM

4 Phase 6 Wire Permanent Magnet Stepper Motor / 7.5° High Torque  micro Stepper Motor 1

Technical Features





This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name 15 mm geared stepper motor
Model SM35-048-372
Resistance 16 Ω±10%
Operating Temputure Range -0~+55 ℃
OEM & ODM SERVICE AVAILABLE



Motor Parameters
Rated Voltage 5.0 V DC 5.0 V DC 3.0 V DC
Phase 2 Phase 2 Phase 2 Phase
Exciting Method 2-2 Phase exciting/2-2 2-2 Phase exciting/2-2 2-2 Phase exciting/2-2
Step Angle 18° 18° 18°
Rotation CW/CCW CW/CCW CW/CCW
Resistance 31.0Ω±7% 8.3Ω±7% 15Ω±7%
Inductance 11.0mH(Ref) 11.0mH(Ref) 5.0mH(Ref)
Max. Starting Pulse Rate 800PPS Min 1300PPS Min 700PPS Min
Max. Slewing Pulse Rate 900PPS Min 1800PPS Min 900PPS Min
Holding Torque 35gf-cm Min. 35gf-cm Min. 30gf-cm Min.
Dielectric Strength 3mA Max. 3mA Max. 3mA Max.
Insulance Resistance 100MΩ (Min.) 100MΩ (Min.) 100MΩ (Min.)
Rotor Inertia 0.05gf-cm2 (Ref) 0.05gf-cm2 (Ref) 0.05gf-cm2 (Ref)
Insulation Class Class F Class F Class F
Operation Conditions -10℃~70 , ORDINARY HUMIDITY/ ℃ ,
15~80%RH(NO CONDENSATION OF MOISTURE
Storage Conditions 40℃~70 , ORDINARY HUMIDITY/ ℃
10~90%RH(NO CONDENSATION OF MOISTURE
With Gear Box (Typical Gear Ratio)
Drive
PPS
Out shaft speed (rpm) Out Torque (g.cm)
1:10 1:20 1:50 1:100 1:298 1:380 1:10 1:20 1:50 1:100 1:298 1:380
200 60.00 30.00 12.00 6.00 2.01 1.58 160 320 800 1440 2880 3200
400 120.00 60.00 24.00 12.00 4.03 3.16 120 240 600 1080 2160 2400
600 180.00 90.00 36.00 18.00 6.04 4.74 80 160 400 720 1440 1600
800 240.00 120.00 48.00 24.00 8.05 6.32 50 100 250 450 900 1000
