Home /Products/Permanent Magnet Synchronous Motor/20BY46-4 Permanent Magnet Synchronous Motor 20mm Stepper Motor High Torque

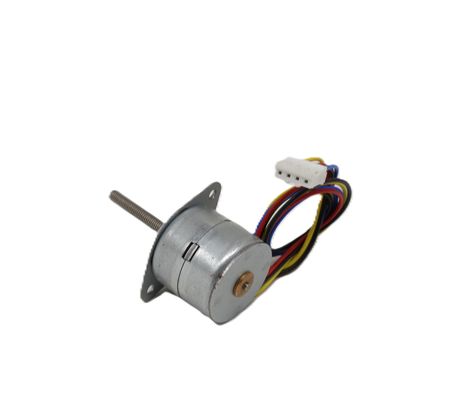

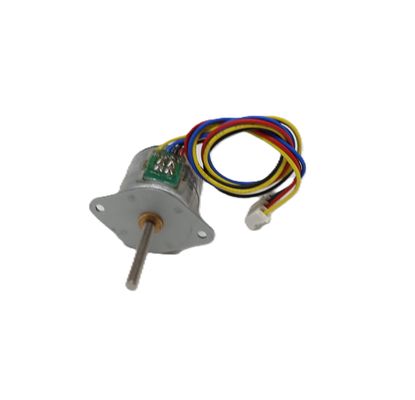

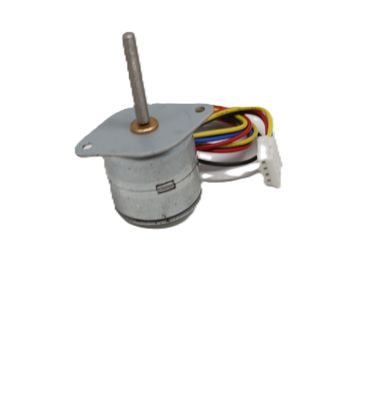

20BY46-4 Permanent Magnet Synchronous Motor 20mm Stepper Motor High Torque

10000PCS
MOQ
1~10 USD/PC
Price
20BY46-4 Permanent Magnet Synchronous Motor 20mm Stepper Motor High Torque
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Permanent Magnet Synchronous Motor
Material: Black Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
Size: Standard
Packing: CTN Or Customized
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

Permanent Magnet Synchronous Motor 20mm

,

High Torque Stepper Motor 20mm

,

20mm Stepper Motor High Torque
Basic Infomation
Place of Origin: China
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 20BYJ46-4
Payment & Shipping Terms
Packaging Details: packed with CTN
Delivery Time: with in 35days
Payment Terms: L/C, T/T, D/P
Supply Ability: 200,000 PCS/month
Product Description

20BY46-4 Rated Voltage 10.2 V Coil Resistance 80 Ω ± 10% No. Of phase 2 Phases



Specifications



Product Name 20 mm permanent magnet stepper motor
Model 20BY46-4
Rated Voltage 10.2 V
Coil Resistance 80 Ω ± 10%
No. Of phase 2 Phases
Step Angle 15 degree
Detent Torque 30.0 gf-cm max. (No exiting 0 V DC)
Pull-Out Torque 79 gf-cm min. (AT 0 PPS, 10.2 V DC)
Max. Starting Frequency 400 PPS min. (AT 10.2 V DC)
Max. Slewing Frequency 450 PPS min. (AT 10.2 V DC)
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 500 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 28 g(Ref.)
OEM & ODM SERVICE AVAILABLE



20BY46-4 Permanent Magnet Synchronous Motor 20mm Stepper Motor High Torque 0



Packing and Shipping:

Product Packaging for Permanent Magnet Synchronous Motor:

Our Permanent Magnet Synchronous Motor is carefully packaged to ensure safe delivery to our customers. Each motor is securely placed in a sturdy cardboard box with ample cushioning to prevent any damage during transit.

Shipping Information:

Orders are typically processed and shipped within 1-2 business days. We use reputable shipping carriers to deliver your Permanent Magnet Synchronous Motor promptly and safely to your desired destination.

Tag:

PM Synchronous Motor

PMSM Motor

PMSM Permanent Magnet Synchronous Motor
