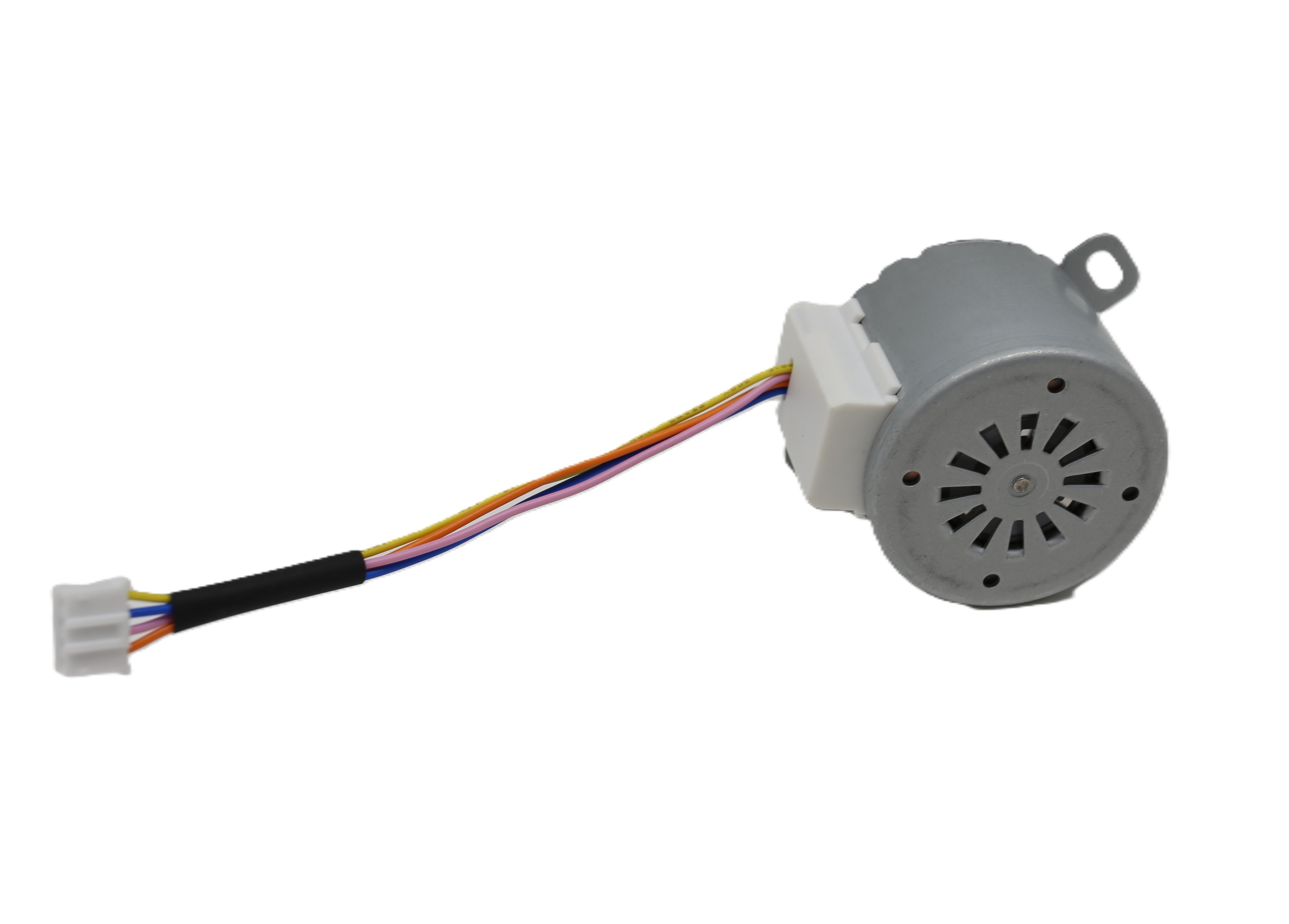

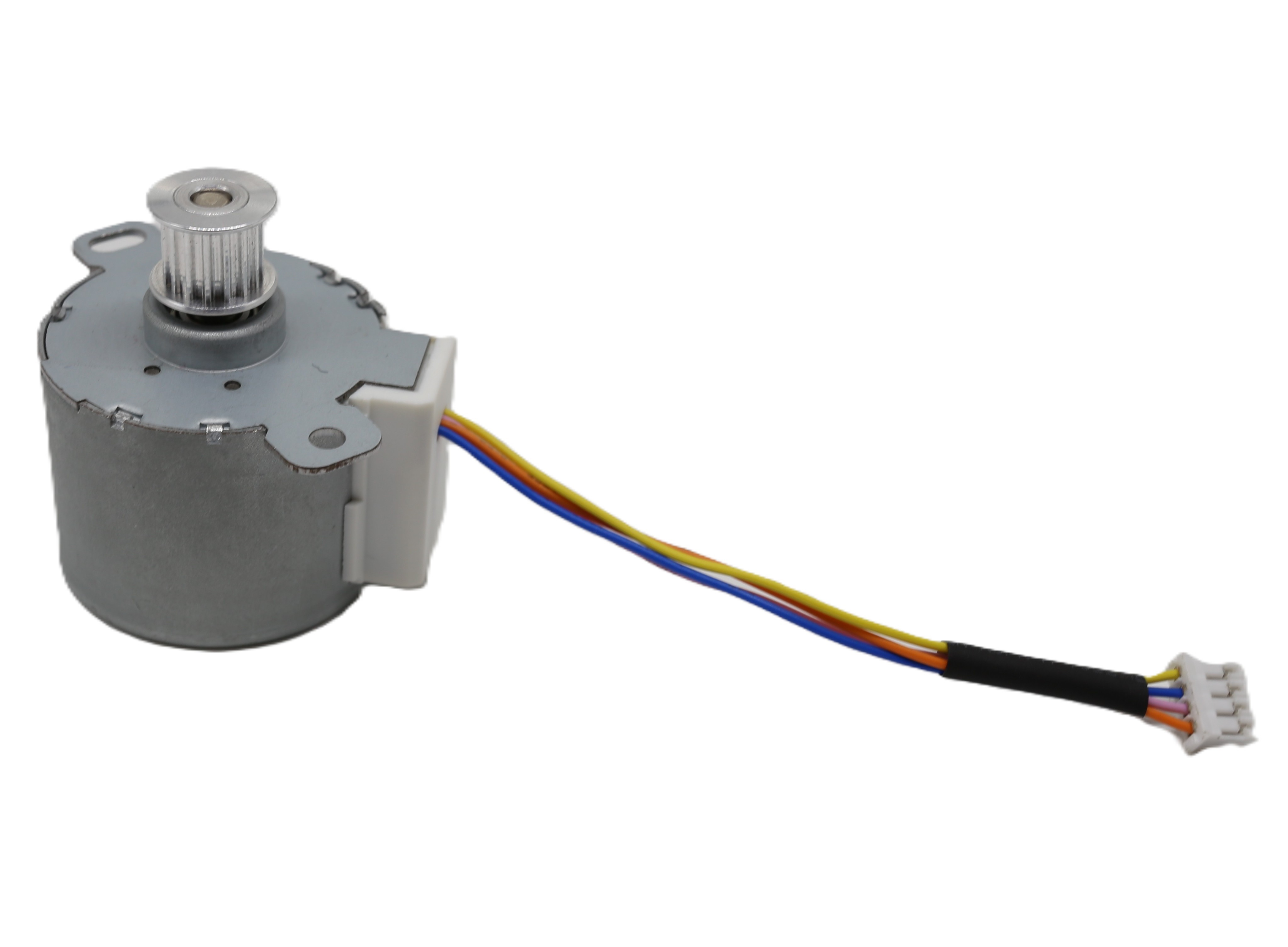

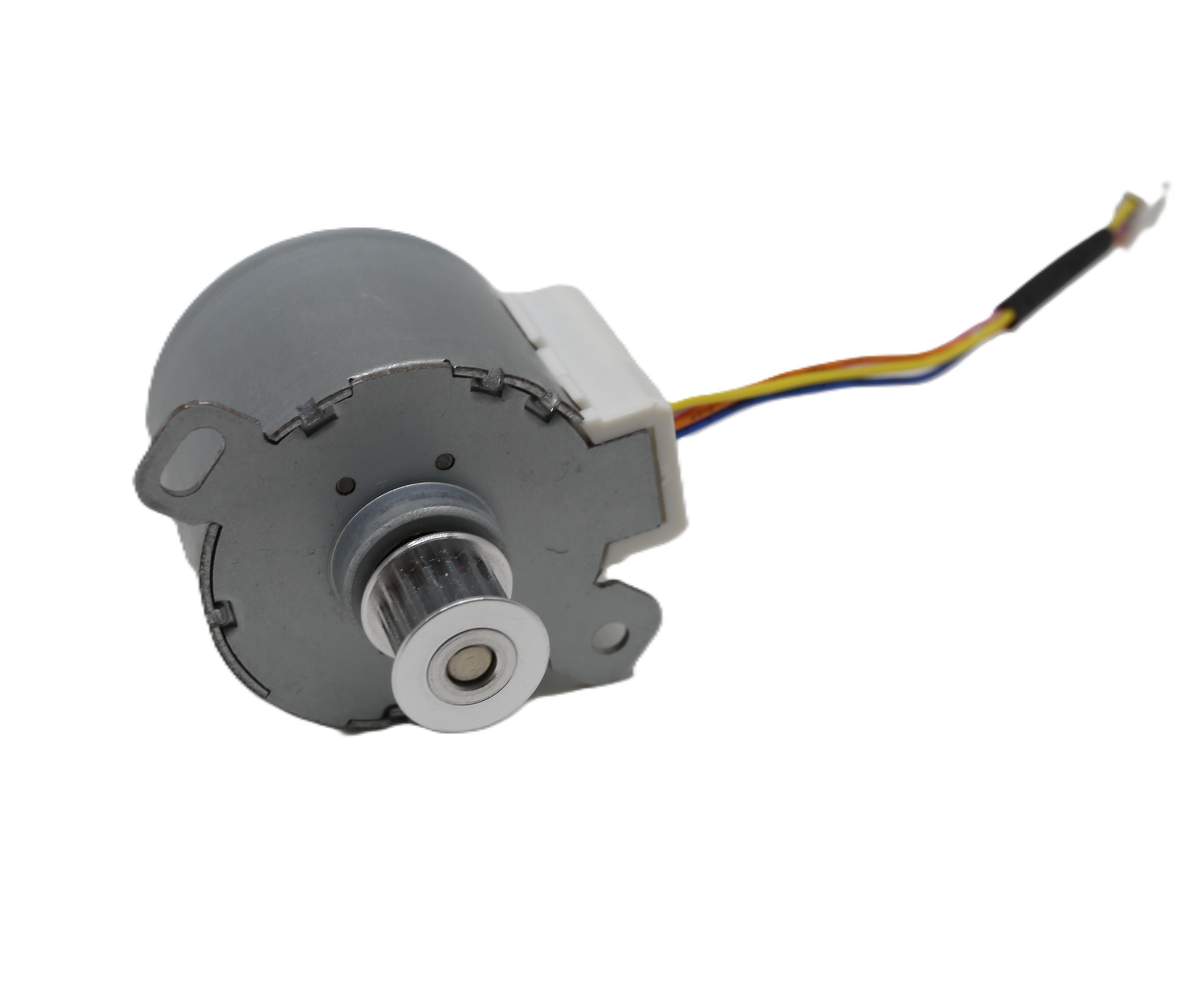

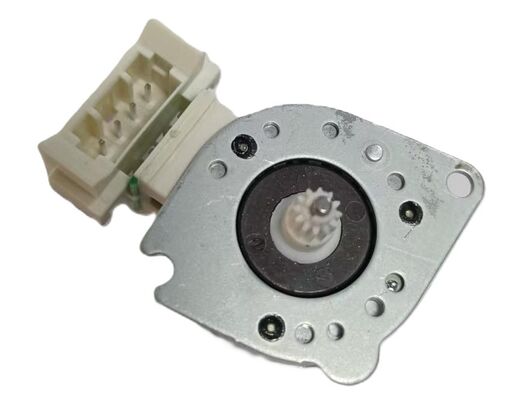

25BY48L029 Synchronous Permanent Magnet Motor 24V PMDC Motor Manufacturer
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | CTN OR CUSTOMIZED |
| Delivery Period: | 35DAYS |
| Payment Method: | T/T,D/P,L/C |
| Supply Capacity: | 200000pcs/month |
Detail Information
Place of Origin
CHINA
Brand Name
XM-Motor
Certification
ISO9001
Model Number
25BY48L029
Name:
24V PMDC Motor
Material:
Black Or Customized
Size:
Standard
Motor:
Stepper Motor
Phase:
2~4
Stepper Motor:
4 Wire Stepper Motor
Packing:
CTN Or Customized
High Torque:
Small Stepper Motor High Torque
Construction:
PM
Colour:
Customized
Color:
Customized
Highlight:
Synchronous Permanent Magnet Motor 24V
,24V PMDC Motor Manufacturer
,PMDC Motor 24V
Product Description
Permanent Magnet Synchronous Motors 25BY48L029 Step Angle 7.5 Phases 4 Voltage 24V Current 0.4A
Specification Data
| Model | Step Angle (Deg.) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | No-Load Starting Frequency (pps) | Starting Torque (g.cm) | Detent Torque (g.cm) | Max Holding Torque (g.cm) | Lead Wire Specification | Wiring Diagram | Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25BY24L01 | 15 | 4 | 9 | 0.45 | 20 | 14.75 | 600 | 20 | 60 | 135 | UL 1061 28# | c | 1 |
| 25BY24L02 | 15 | 4 | 12 | 0.4 | 30 | 6 | 580 | 40 | 75 | 130 | UL 1061 28# | c | 2 |
| 25BY24L040 | 15 | 2 | 24 | 0.275 (Constant Current) | 16 | 9.46 | 870 | 40 | 70 | 125 | — | a | 3 |
| 25BY48B02 | 7.5 | 4 | 12 | 0.375 | 32 | 5.5 | 850 | 50 | 30 | 130 | UL 1061 28# | c | 4 |
| 25BY48B040 | 7.5 | 2 | 5 | 0.25 | 20 | 9.3 | 580 | 20 | 30 | 90 | UL 1061 28# | a | 5 |
| 25BY48L01 | 7.5 | 4 | 3 | 0.3 | 10 | 2.1 | 700 | 15 | 45 | 90 | UL 1061 28# | c | 6 |
| 25BY48L029 | 7.5 | 4 | 24 | 0.4 | 60 | 11.6 | 950 | 60 | 50 | 200 | UL 1061 28# | c | 7 |
| 25BY48B031 | 7.5 | 2 | 12 | 0.03 | 400 | 168 | 400 | 5 | — | 50 | UL 1007 26# | a | 8 |
| 25Y48Y-02 | 7.5 | 2 | 5 | 0.5 | 10 | 5.6 | 840 | 45 | 40 | 150 | UL 1061 28# | a | 9 |
| EDM1 | 7.5 |
4 | 12 | 0.08 | 150 | 31 | 550 | 50 | 40 | 85 | — | c | 10 |
