24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
| MOQ: | 5 pcs |
| Price: | 0.8~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days after receiving deposit |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
Detail Information
Place of Origin
China
Brand Name
XM-Motor
Certification
ISO9001 ROHS
Model Number
24BYJ48
Step Angle:
（5.625°/64） /（11.25°/64）
Material:
Copper Coil
Voltage:
12V / 5V DC
Phase:
2~4
Resistance:
20~300Ω
Wire:
5
Application:
Fan,Air Conditioner, Camera, Monitor, Air Conditioners, Intelligent Sanitary, Refrigerators, Automatic Door Lock Etc
Name:
24BYJ48 Series Advanced Permanent Magnet Synchronous Motor For Refrigerator With High Output Torque And Efficiency
Warranty:
12 Months
Sample Time:
7 Days
Inner Package:
Anti-static Bag+foam Fixed
Highlight:
12V/5V DC Permanent Magnet Synchronous Motor
,2~4 Phase PMSM Motor
,20~300Ω Resistance Stepper Motor
Product Description
24BYJ48 series Advanced Permanent Magnet Synchronous Motor for Refrigerator with High Output Torque and Efficiency
Product Introduction:
- Model No: 24BYJ48
- With same number of poles as the stator, the rotor is composed of permanent magnet material.
- Features excellent dynamic performance and high output torque
24BYJ48 Series Specifications:
| Model | Voltage (V) | Resistance (Ω) | Step Angle (1-2P) /(2-2P) | Frequency (PPS) | Pull-in Torque(mN.m) | Self-locating Torque(mN.m) | No-loading pull-in frequency(PPS) | No-loading pull-out frequency(PPS) |
| 24BYJ48 | 5 | 20 | (5.625°/64) /(11.25°/64) | 100 | ≥78.4 | ≥34.3 | ≥500 | ≥900 |
| 12 | 50 | (5.625°/64) /(11.25°/64) | 500 | ≥150 | ≥49 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/64) /(11.25°/64) | 500 | ≥13 | ≥49 | ≥500 | ≥900 | |
| 12 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥78.4 | ≥34.3 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/16) /(11.25°/16) | 400 | ≥19.6 | ≥19.6 | ≥500 | ≥900 | |
| 12 | 70 | (5.625°/32) /(11.25°/32) | 400 | ≥49 | ≥19.6 | ≥500 | ≥900 | |
| 12 | 50 | (5.625°/37) /(11.25°/37) | 500 | ≥100 | ≥34.3 | ≥500 | ≥900 | |
| 24 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥150 | ≥34.3 | ≥500 | ≥900 | |
| 24 | 300 | (5.625°/64) /(11.25°/64) | 400 | ≥80 | ≥34.3 | ≥500 | ≥900 |
Friendly Reminder:
The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com
DIMENSIONS: mm
24BYJ48 Torque Curve:
24BYJ48 Series Applications:
• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.
Custom BYJ Stepper Motors Tailored to Your Specific Needs
- Logo printing :as your need.
- Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
- Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
- Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
- Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.

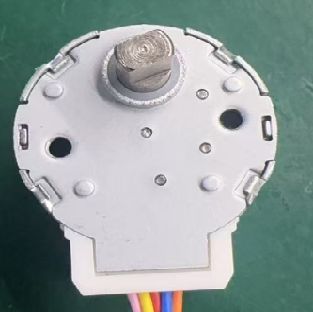

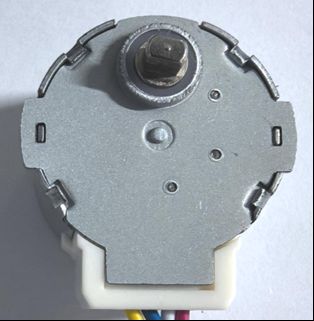

Part of micro stepper motor samples:
