High Torque Micro Metal Gearmotor With Encoder 40Ω / 20Ω Voltage 5V

Micro Metal Gearmotor Torque High Torque Construction PM Continuous Current (A) 40Ω Or 20Ω Voltage (V) 5V

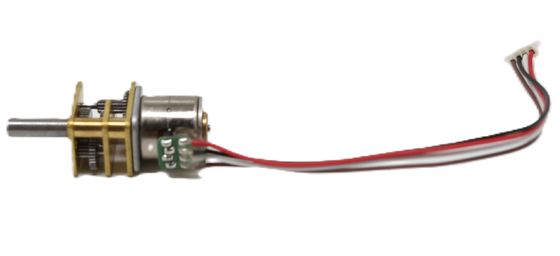

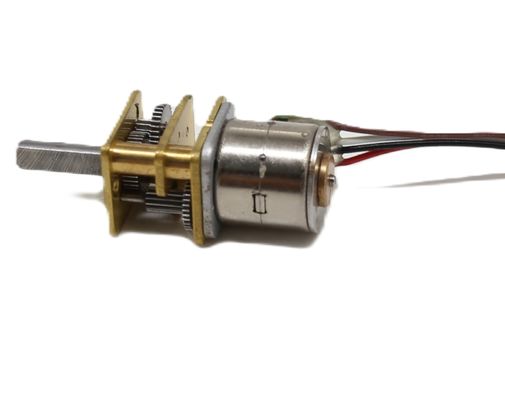

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder

This is a combination of a 10MM micro stepper motor and a 10 * 12 precision metal gearbox, with an encoder.
The basic step angle of the motor is 18 degrees, which is 20 steps per revolution. Combined with the deceleration effect of the gearbox, the final resolution of the motor rotation angle can reach 0.05-6 degrees, which can be used for various requirements. Accurately control the rotation position of the magnetic field.
Gearbox gear ratio: 1:2,1:5,1:10, 1:15,1:20,1:30, 1:36,1:50, 1:63,1:67,1:89,1:100, 1:110,1:120,1:150, 1:172, 1:210,1:250,1:275,1:298,1:380, 1:420, 1:500, 1:600, 1:1000. Customers can match the gear ratio according to different torque and speed requirements.
Given an appropriate driving frequency, a stepper motor can achieve the determination of speed and torque.
The power input section and standard stepper motor can be used as probe structures, FPC, FFC, PCB cables, and other forms.
The partial output of the motor can be used for various output structures, such as circular shafts, D-axes, etc!

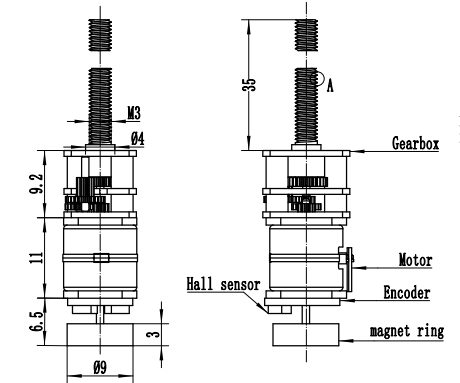

Mechanical Dimension:MM

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

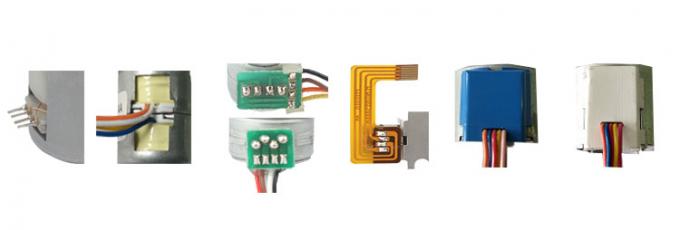

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

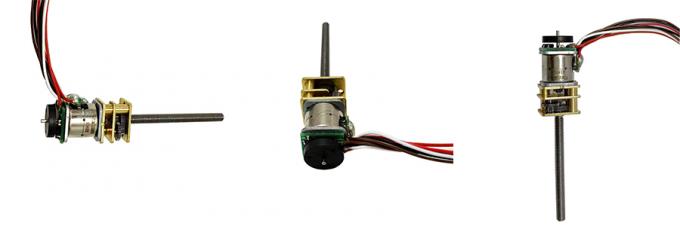

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :  DIA3mm. 4mm. 5mm

• D-cut Type:     DIA3-D2.5 DIA4-D3 etc

• Screw Type:    M3 M4 M5 Serial

• Trape Type

• I-cut Type:       DIA3-I2   DIA4-I3

• Other Type:      Shaft with a hole etc

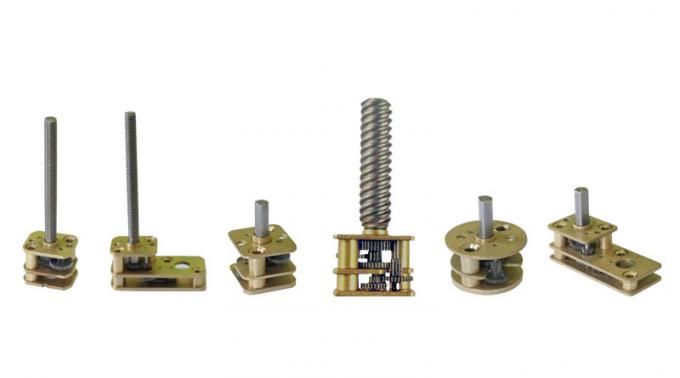

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.
