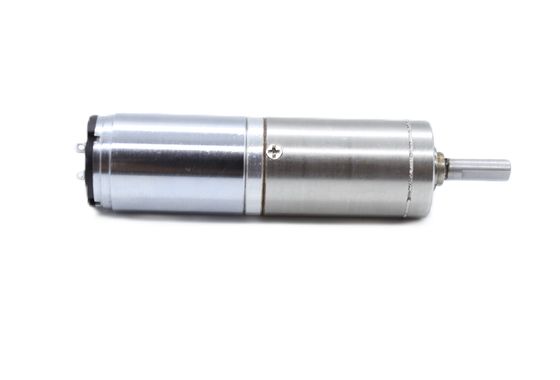

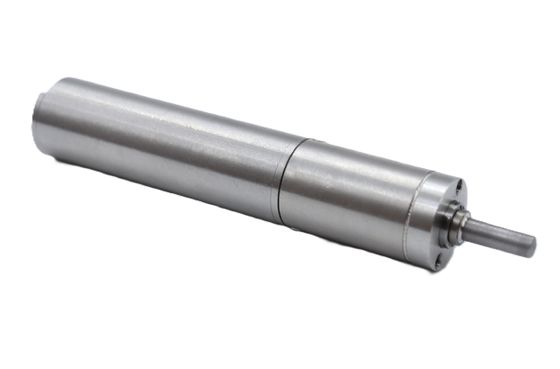

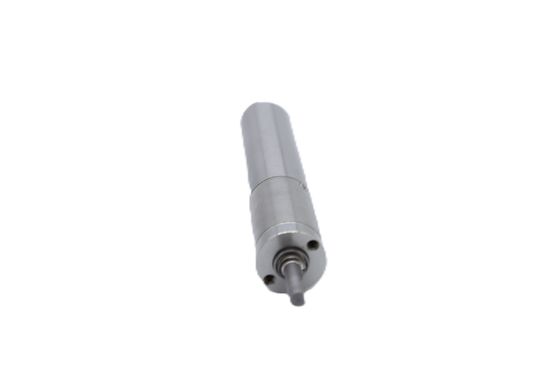

2 Phase Micro Metal Gearmotor Step Angle Mini DC Gear Motor 5V

10000PCS
MOQ
1~10 USD/PC
Price
2 Phase Micro Metal Gearmotor Step Angle Mini DC Gear Motor 5V
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Micro Metal Gearmotor
Material: Black Or Customized
Size: Standard
Rated Voltage: 5 V DC
Current Per Phase: 250 MA/phase
Packing: CTN Or Customized
Coil Resistance: 12.2±7%/phase
No. Of Phase: 2 Phase
Step Angle: 18°/64 Step
Drive Mode: 2 Bipolar Drive
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

2 Phase Micro Metal Gearmotor

,

Micro Metal Gearmotor Step Angle

,

Mini DC Gear Motor 5V

Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: Micro Metal Gearmotor SM10-IG64
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: T/T,D/P,L/C
Supply Ability: 100000PCS/MONTH
Product Description
Micro Metal Gearmotor Rated Voltage 5 V DC Current Per Phase 250 MA/Phase Coil Resistance 12.2±7%/Phase No. Of Phase 2 Phase Step Angle 18°/64 Step Drive Mode 2 Bipolar Drive
Product Details
Rated Voltage 5 V DC Current Per Phase 250 MA/phase
Coil Resistance 12.2±7%/phase No. Of Phase 2 Phase
Step Angle 18°/64 Step Drive Mode 2 Bipolar Drive
Excitation Method 2 Phase Excitation Pull-out Torque More Than 190 Gf.cm At 500 Pps
Holding Torque More Than 450 Gf.cm At 0 Pps Max Responese Frequency More Than 1000 Pps
Max Starting Frequency More Than 900 Pps Insulation Class Class E For Coils
Insulation Strength 100 V AC For One Second Insulation Resistance 500 MΩ DC 500 V
Opearating Temperature Range 0~+55 ℃
Highlight

micro dc gear motor

,

small brushless dc motor


Product Description

5V 10m Micro Dc Gear Motor , Low Noise High Torque Small DC Stepper Motor

BLDC Motor has advantages of small size, high power, high efficiency, adjustable speed, long life, no sparkover,etc.
It can widely replace DC Brushed motor, inverter motor, AC asynchronous motor. It's the best solution to match to planetary gearbox and it can also match to normal gearbox. BLDC Motor is the developing direction of transmission and it's the only choice for green energy and driving industry.

2 Phase Micro Metal Gearmotor Step Angle Mini DC Gear Motor 5V 0

Mechanical Dimension:MM

2 Phase Micro Metal Gearmotor Step Angle Mini DC Gear Motor 5V 1


It's widely used in car, medical equipments, electrical tools, automatic instrument, home applicance, military industry, environment protection and energy saving industry, aeronaustics industry, office automation, intelligent home, financial machines, game machines, hollow window-blinds, smart toilets, auto racks, power tools, automatic windows, automatic curtains, glass walls, bank ATM machines, automatic cash registers, vending machines and other automated bill machines .



Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements

Typical Applications

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments
  • Camera

  • label printer

  • Electtric Door Locks
  • Label stripping machine

  • ISBN printer



Specifications

Rated Voltage 5 V DC
Current Per Phase 250 mA/phase
Coil Resistance 12.2±7%Ω/phase
No.of Phase 2 phase
Step Angle 18°/64 step
Excitatation Method 2 phase excitation
Drive Mode Bipolar drive
Pull-out Torque More than 190 gf.cm at 500 pps
Holding Torque More than 450 gf.cm at 0 pps
Max Responese Frequency More than 1000 pps
Max Starting Frequency More than 900 pps
Insulation Class Class E for coils
Insulation Strength 100 V AC for one second
Insulation Resistance 500 MΩ DC 500 V
Opearating Temperature Range 0~+55 ℃



The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

Torque Curve For Reference



Product Detail Presentation
