5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox

MOQ:	10000PCS
Price:	1~10 USD/PC
Standard Packaging:	CTN OR CUSTOMIZED
Delivery Period:	35DAYS
Payment Method:	T/T,D/P,L/C
Supply Capacity:	100000PCS/MONTH

Product Details

Type	Gear Motor	Torque	High Torque
Construction	Permanent Magnet	Continuous Current(a)	Customized
Certification	ROHS	Voltage(v)	5V
Output Shaft	Customizable	Reduction Ratio	Customizable1:3~1000
Directions	CW/CCW	Step Angle	18 Degree
Highlight	miniature dc gear motor , metal gear dc motor

Product DescriptionVSM15-816G 15mm micro metal gearmotor for 3D printer 5V DC metal geared motor

VSM15-816G is the use of diameter 15MM micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 1:500 and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time

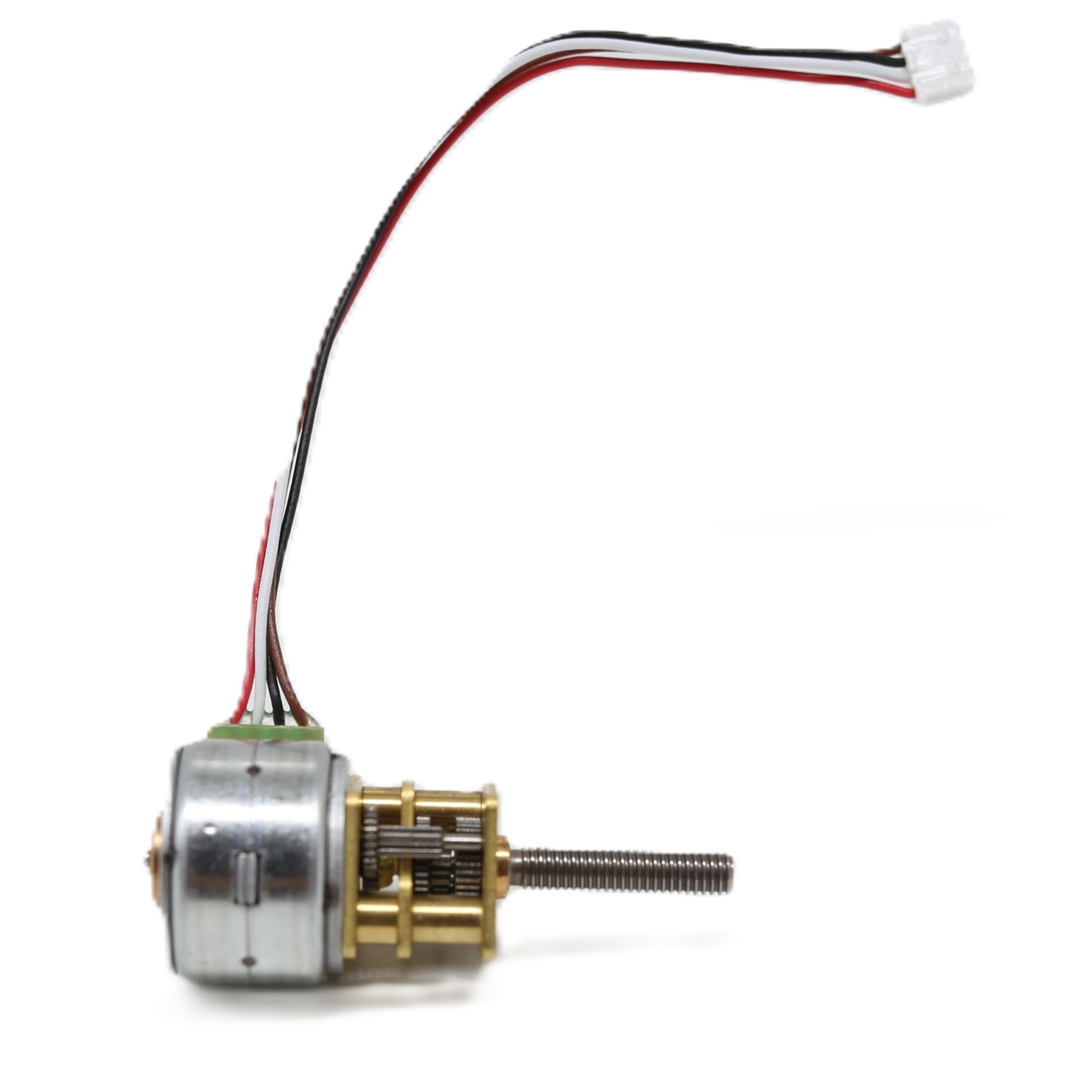

5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox 0

Mechanical Dimension:MM

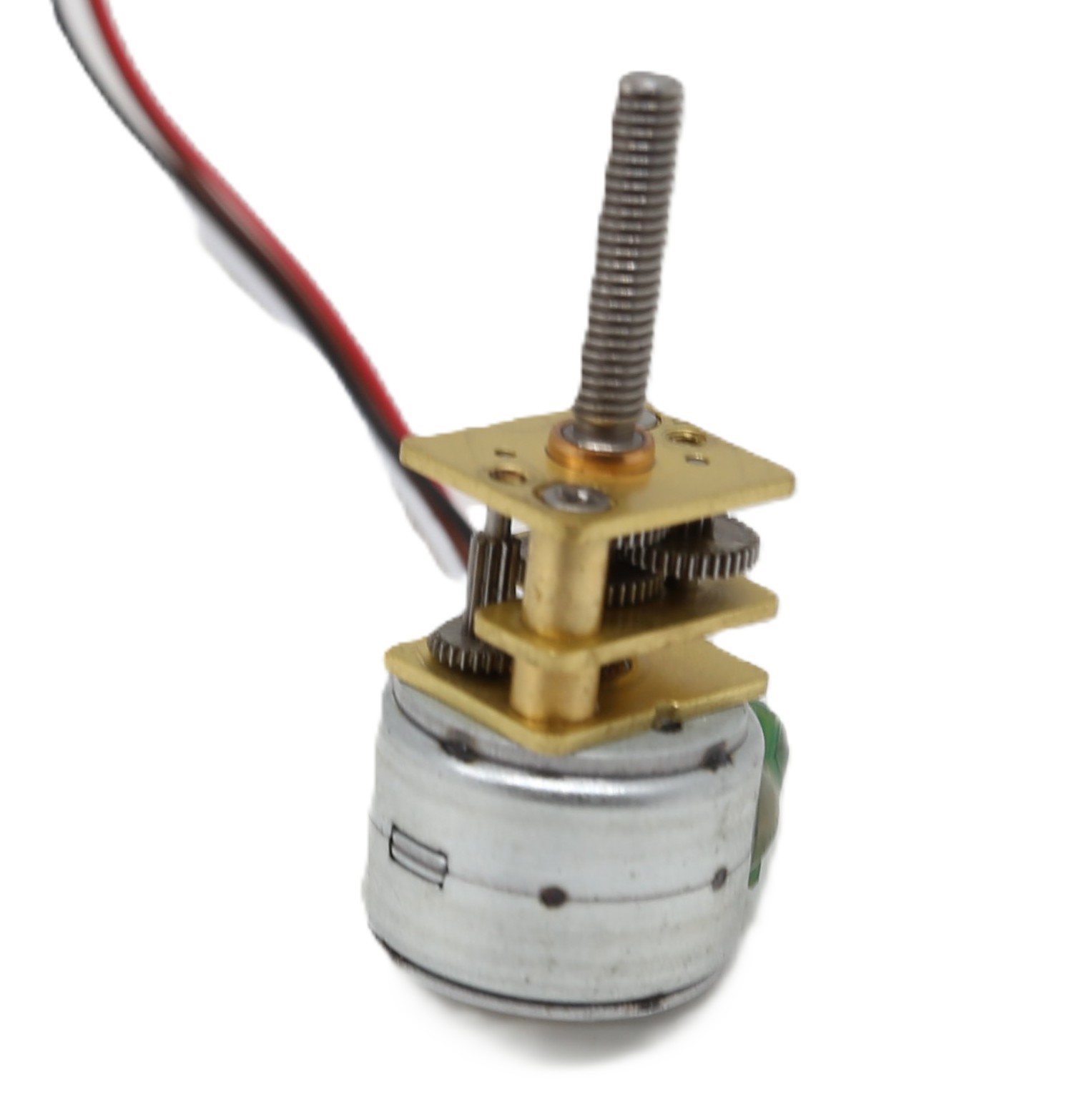

5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox 1

Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

Saliva Analyzer
Blood Analyzer
Welding Machine
Intelligent Security Products
Fiber Fusion Splicer
Digital Electronics

Specifications

PRODUCT NAME	15mm geared stepper motor
MODEL	VSM15-816G
RESISTENCE	31Ω±7%
OPERATING TEMPERATURE RANGE	-0~+55 ℃
OEM & ODM SERVICE	AVAILABLE

Product Detail Presentation

Torque Curve For Reference

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

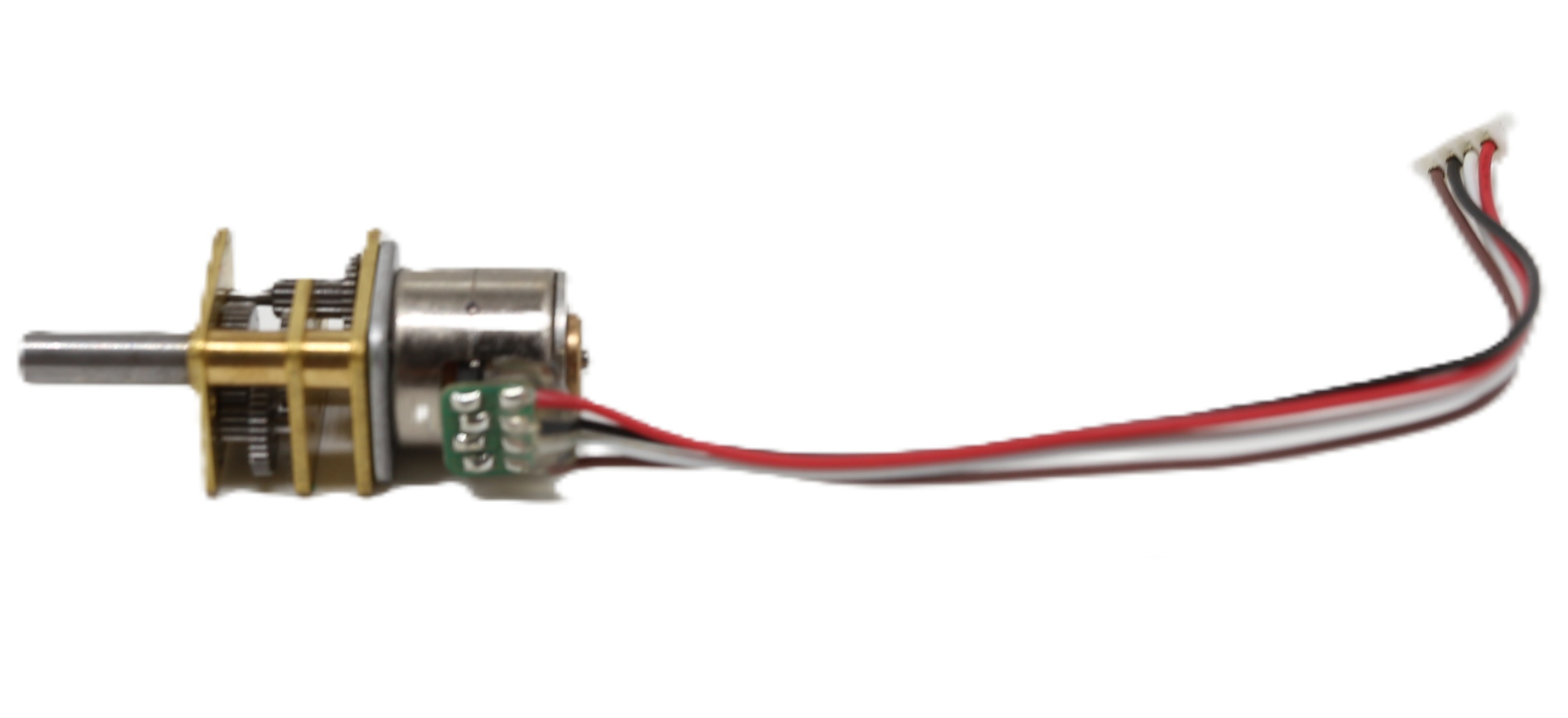

5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox 2

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

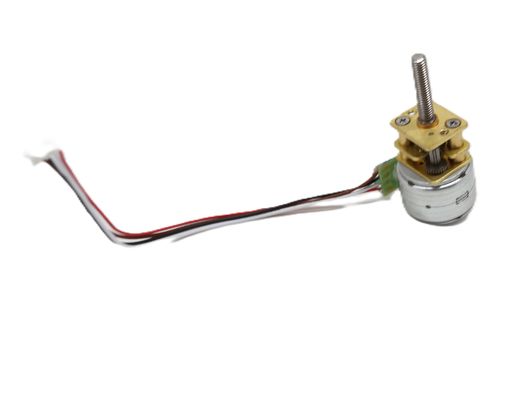

5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox 3

Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

5V DC Metal Geared Motor 15mm Miniature Electric Motors With Gearbox 4
