Features

Specifications

Step Angle: （5.625°/64） /（11.25°/64）

Material: Copper Wire

Voltage: 12V / 5V DC

Phase: 2~4

Resistance: 20~300Ω

Wire: 5

Application: Fan,Air Conditioner, Camera, Monitor, Air Conditioners, Intelligent Sanitary, Refrigerators, Automatic Door Lock Etc

Name: 24BYJ48 12V DC Reduction Stepper Motor Micro Reducer Stepping Motor 4Phase 5Wire

OEM: Logo, Wire, Holes,parameters,gears

Highlight:

12V DC Stepper Motor

4Phase 5Wire Reduction Stepper Motor

Copper Wire Stepper Motor

Basic Infomation

Place of Origin: China

Brand Name: XM-Motor

Certification: ISO9001 ROHS

Model Number: 24BYJ48

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 20 to 30 days after receiving deposit

Payment Terms: T/T

Supply Ability: 200,000 PCS/month

Gallery

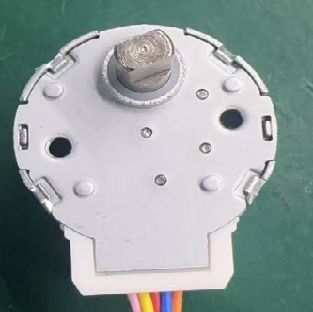

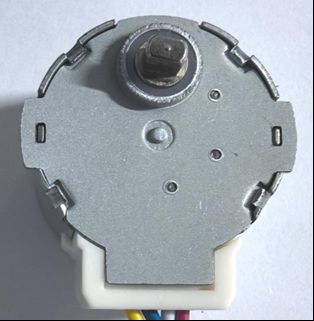

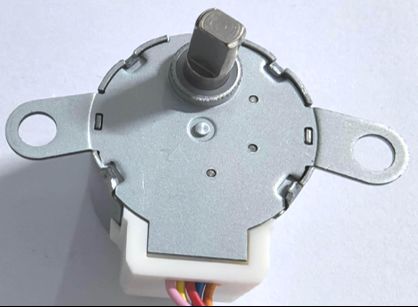

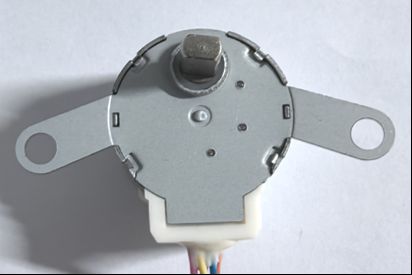

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications

Product Description

24BYJ48 12V DC Reduction Stepper Motor Micro Reducer Stepping Motor 4Phase 5Wire

Product Introduction:

Model No: 24BYJ48
With same number of poles as the stator, the rotor is composed of permanent magnet material.
Features excellent dynamic performance and high output torque

24BYJ48 Series Specifications:

Model	Voltage(V)	Resistance(Ω)	Step Angle (1-2P) /(2-2P)	Frequency(PPS)	Pull-in Torque(mN.m)	Self-locating Torque(mN.m)	No-loading pull-in frequency(PPS)	No-loading pull-out frequency(PPS)
24BYJ48	5	20	(5.625°/64) /(11.25°/64)	100	≥78.4	≥34.3	≥500	≥900
	12	50	(5.625°/64) /(11.25°/64)	500	≥150	≥49	≥500	≥900
	12	70	(5.625°/64) /(11.25°/64)	500	≥13	≥49	≥500	≥900
	12	200	(5.625°/64) /(11.25°/64)	400	≥78.4	≥34.3	≥500	≥900
	12	70	(5.625°/16) /(11.25°/16)	400	≥19.6	≥19.6	≥500	≥900
	12	70	(5.625°/32) /(11.25°/32)	400	≥49	≥19.6	≥500	≥900
	12	50	(5.625°/37) /(11.25°/37)	500	≥100	≥34.3	≥500	≥900
	24	200	(5.625°/64) /(11.25°/64)	400	≥150	≥34.3	≥500	≥900
	24	300	(5.625°/64) /(11.25°/64)	400	≥80	≥34.3	≥500	≥900

Friendly Reminder:

The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com

DIMENSIONS: mm

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 0

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 3

24BYJ48 Torque Curve:

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 4

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 9

24BYJ48 Series Applications:

• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 10

24BYJ48 12V DC Reduction Stepper Motor with 4Phase 5Wire and Copper Wire for High Precision Applications 12

Custom BYJ Stepper Motors Tailored to Your Specific Needs

Logo printing :as your need.
Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
