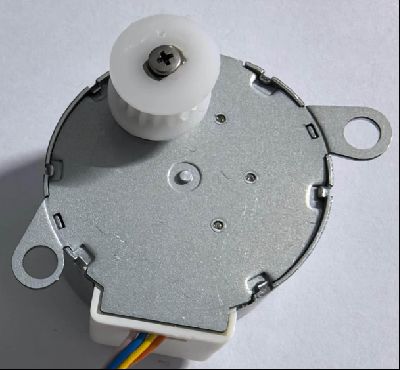

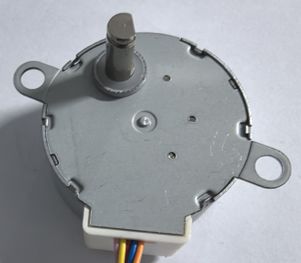

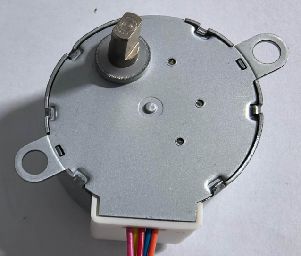

35BYJ46 Compact High Precision 4phase Stepper Motor for Robotics and Automation
| MOQ: | 5 pcs |
| Price: | 1~6 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 to 30 days after receiving deposit |
| Payment Method: | T/T |
| Supply Capacity: | 200,000 PCS/month |
Compact Stepper Motor
,High Precision Stepper Motor
,Robotics Stepper Motor
35BYJ46 4phase PM stepper motors for robotics, 3D printers and small automation projects
35BYJ46 series geared stepper Motor is a high-precision stepper motor designed for reliable and efficient performance in a compact form. Operating at 12V DC , it is ideal for applications that require accurate positioning and smooth motion control. this motor is commonly used in automation systems, robotics, home appliances and industrial machinery.
Its 5-wire unipolar configuration and compact size make it perfect for low-power applications, while offering consistent and repeatable movement.
Key Features:
- 12V DC operating voltage
- Smooth and accurate step rotation
- Compact and lightweight design
- 5-wire unipolar configuration
- Pre-soldered JST connector for plug-and-play use
35BYJ46 Series Specifications:
| Model | Voltage (V) | Resistance (Ω) | Step Angle (1-2P)/(2-2P) | Freq (PPS) | Pull-in Torque(mN.m) | Self-location Torque(mN.m) | Empty pull-in freq(PPS) | Empty Pull-out Freq(PPS) |
| 35BYJ46 | 12 | 130 | (7.5°/41.6) /(15°/41.6) | 100 | ≥98 | ≥39.2 | ≥350 | ≥600 |
| 12 | 40 | (7.5°/43.75) /(15°/43.75) | 500 | ≥100 | ≥39.2 | ≥350 | ≥600 | |
| 12 | 100 | (7.5°/43.75) /(15°/43.75) | 100 | ≥58.8 | ≥39.2 | ≥350 | ≥600 | |
| 12 | 40 | (7.5°/85) /(15°/85) | 500 | ≥147 | ≥78.4 | ≥350 | ≥600 | |
| 12 | 100 | (7.5°/85) /(15°/85) | 100 | ≥147 | ≥78.4 | ≥350 | ≥600 |
35BYJ46 DIMENSIONS: mm
35BYJ46 Torque Curve:
35BYJ46 Stepper Motor Applications:
• Ideal for robotics, 3D printers, Air conditioners, Electric fans and small automation projects.
Company Introduction:
Changzhou Xinmai Motor Technology Co.,Ltd was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes motors, micro slider motors, micro linear motors,servo motors etc.
The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.
