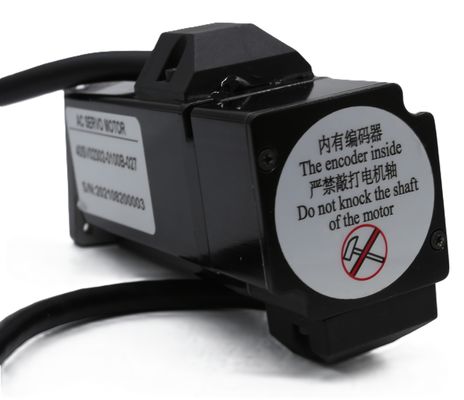

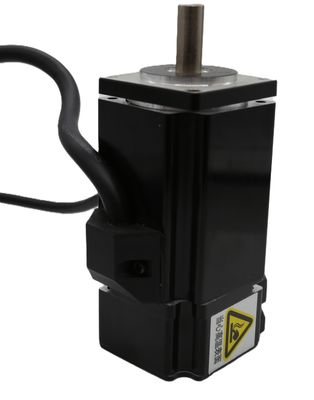

NEMA23 Servo Motor 1.8° Step Angle Simple Servo Motor XM57HS-ED
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | CTN OR CUSTOMIZED |
| Delivery Period: | 35DAYS |
| Payment Method: | D/P,T/T,L/C |
| Supply Capacity: | 100000PCS/MONTH |
NEMA23 Servo Motor
,Step Angle Simple Servo Motor
,Simple Stepper Motor NEMA23
Servo Motor Step Angle) 1.8° (Insulation Resistance) 100 MΩ Min. ,500VDC Shaft Axial Play) 0.08Max. (450g-Load)
Product details
Model: NEMA23 Two-phase simple servo stepper motor -XM57HS-ED
General Specification:
|
Item |
Specifications |
|
Step Angle |
1.8° |
|
Temperature Rise) |
80℃max |
|
Ambient Temperature |
-20℃~+50℃ |
|
Insulation Resistance |
100 MΩ Min. ,500VDC |
|
Dielectric Strength): |
500VAC for 1minute |
|
Shaft Radial Play) |
0.02Max. (450g-load) |
|
Shaft Axial Play) |
0.08Max. (450g-load) |
|
Max. radial force) |
75N (20mm from the flange) |
|
Max. axial force |
15N |
Electrical Specification:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
N.m |
No. |
g.cm |
g.cm |
Kg |
|
|
XM57HS41-4204BFED-0.35M |
1.8 |
41 |
4.2 |
0.3 |
0.7 |
0.55 |
4 |
250 |
150 |
0.65 |
|
XM57HS56-4204BFED-0.35M |
1.8 |
56 |
4.2 |
0.4 |
1.2 |
1.1 |
4 |
350 |
280 |
0.98 |
|
XM57HS76-4204BFED-0.35M |
1.8 |
76 |
4.2 |
0.6 |
1.8 |
1.8 |
4 |
600 |
440 |
1.1 |
|
XM57HS82-4204BFED-0.35M |
1.8 |
82 |
4.2 |
0.7 |
2.5 |
2.2 |
4 |
1000 |
600 |
1.2 |
|
XM57HS112-4204BFED-0.35M |
1.8 |
112 |
4.2 |
0.9 |
3.8 |
3.1 |
4 |
1200 |
800 |
1.4 |
Above only for representative products, products of special request can be made according to the customer request.
Motor exterior drawing /Dimensions:(Unit=mm)
Wiring Diagram:
