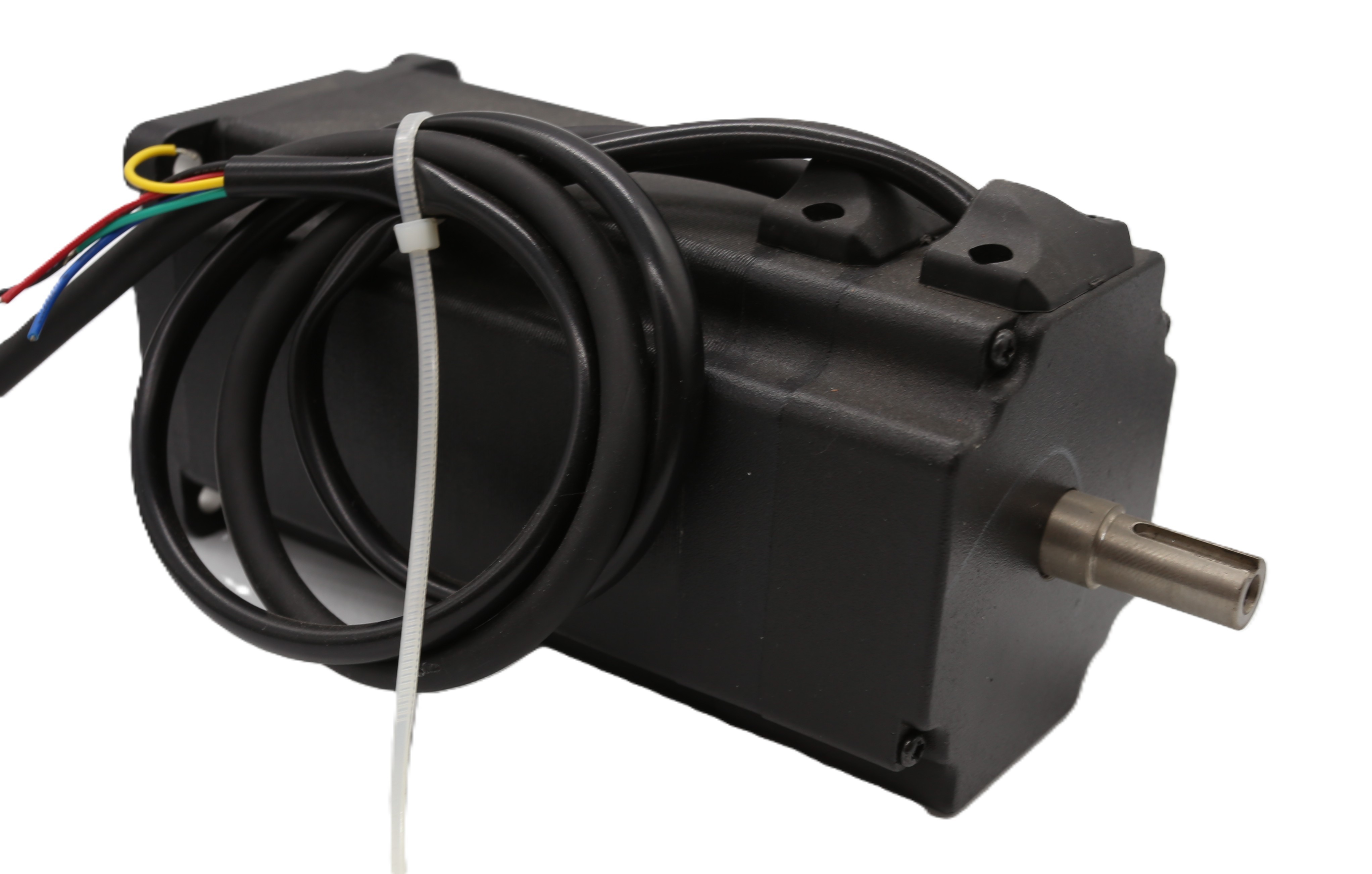

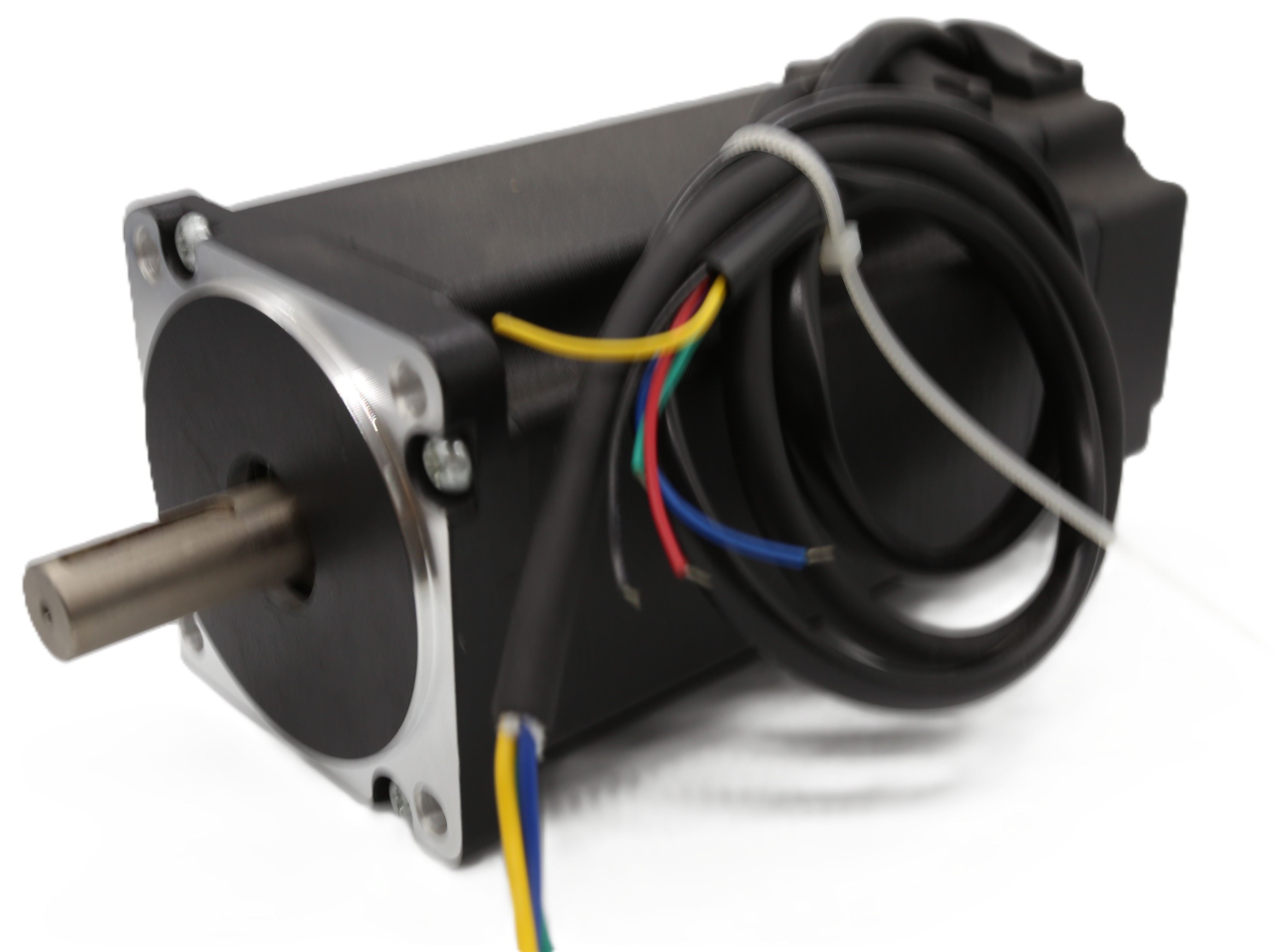

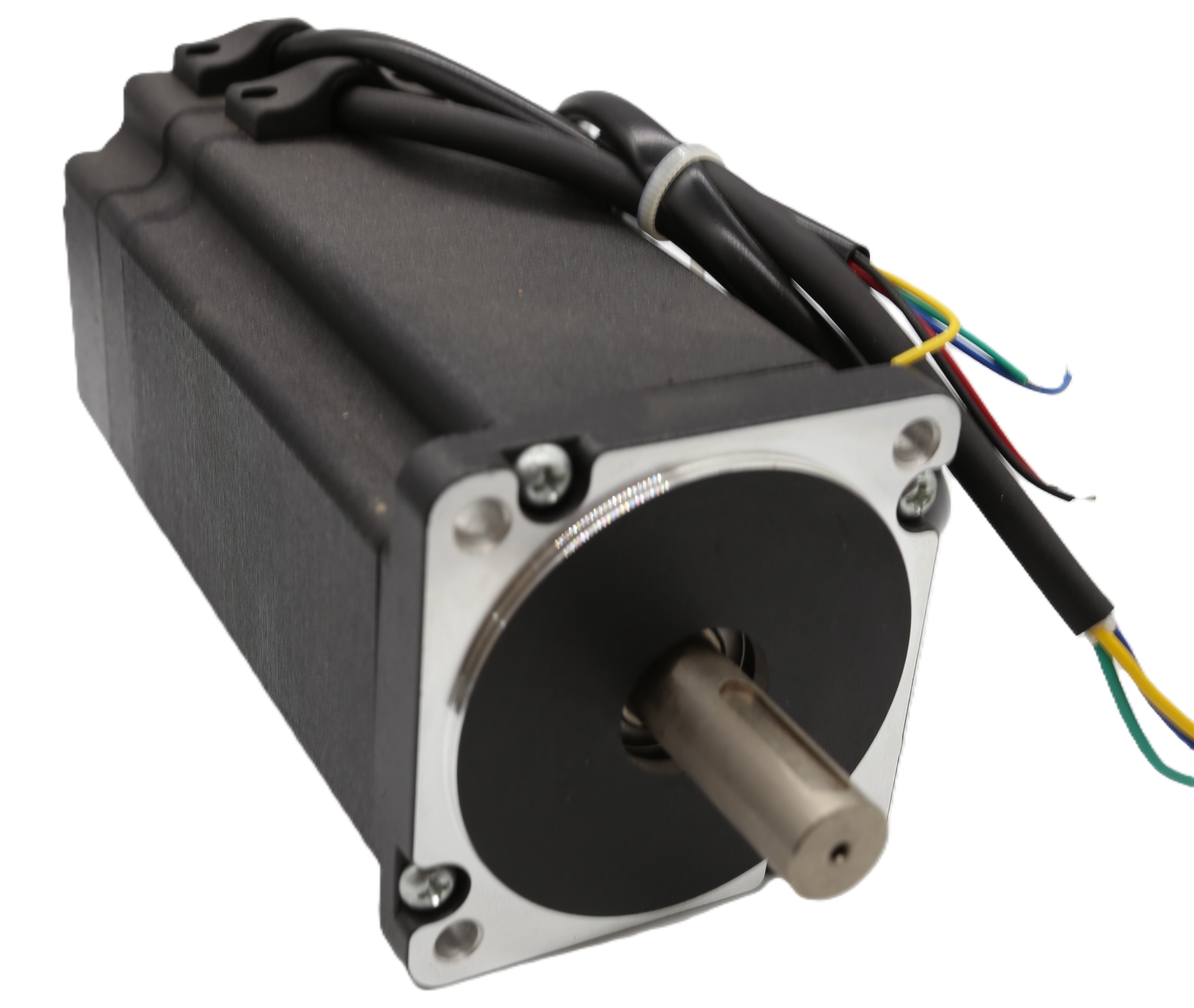

XM86HS Two Phase Servo Motor , Servo Stepper Motor High Torque
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | packed with CTN |
| Delivery Period: | with in 35days |
| Payment Method: | L/C, T/T, D/P |
| Supply Capacity: | 100,000 PCS/month |
Detail Information
Place of Origin
CHINA
Brand Name
XM-Motor
Certification
ISO9001
Model Number
XM86HS Servo Motor
Name:
Two Phase Servo Motor
Motor:
Stepper Motor
Phase:
2~4
Stepper Motor:
4 Wire Stepper Motor
High Torque:
Small Stepper Motor High Torque
Construction:
PM
Colour:
Customized
Color:
Customized
Highlight:
XM86HS Servo Motor
,Two Phase Servo Motor
,Servo Stepper Motor High Torque
Product Description
XM86HS Servo Motor Two - Phase Simple Servo Stepper Motor Shaft Radial Play) 0.02Max. (450g-Load) Max. Radial Force) 220N (20mm From The Flange)
Motor Model: NEMA34 Two - phase simple servo stepper motor-XM86HS-ED
Genaral Specification:
| (Specifications) | |
| Step Angle | 1.8° |
| (Temperature Rise) | 80℃max |
| (Ambient Temperature) | -20℃~+50℃ |
| (Insulation Resistance) | 100 MΩ Min. ,500VDC |
| (Dielectric Strength): | 820VAC for 1s 3mA |
| (Shaft Radial Play) | 0.02Max. (450g-load) |
| (Shaft Axial Play) | 0.08Max. (450g-load) |
| (Max. radial force) | 220N (20mm from the flange) |
| (Max. axial force) | 60N |
Electrical Specification:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm |
Kg | |
| 86HS78-6004XBJED-0.35M | 1.8 | 78 | 6 | 0.27 | 2 | 4.5 | 4 | 1.2 | 1400 | 2.8 |
| 86HS115-6004YBJED-0.35M | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 | 4.3 |
| 86HS155-6004YBJED-0.35M | 1.8 | 155 | 6 | 0.44 | 3.8 | 12 | 4 | 3.6 | 4000 | 5.9 |
Above only for representative products, products of special request can be made according to the customer request.
Dimensions:
Wiring Diagram:()
(Torque-frequency characteristic curve):
