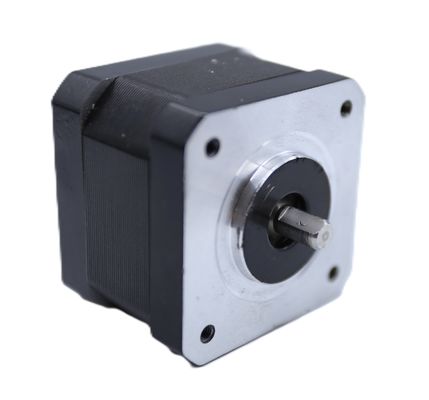

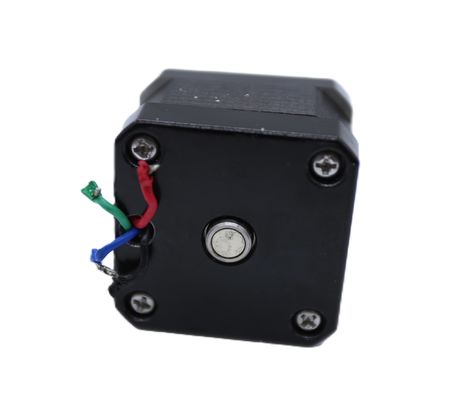

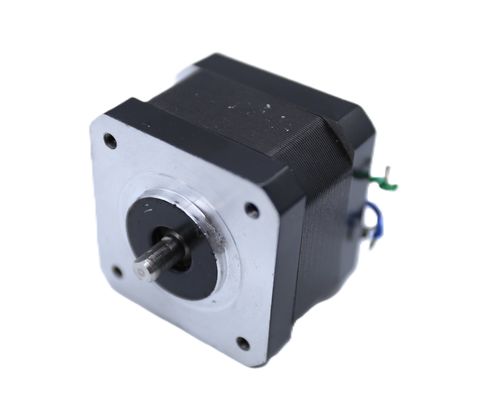

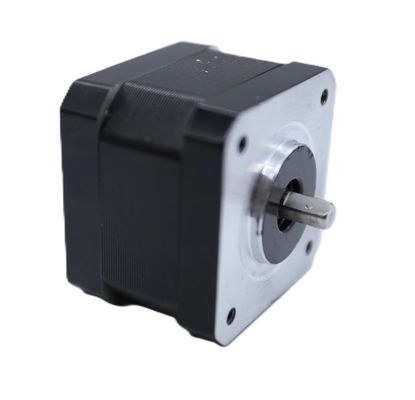

Micro PM Servo Motor 2 Phase 4 Phase 1.8 ° 28HS Hybrid Stepper Motor
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | packed with CTN |
| Delivery Period: | with in 35days |
| Payment Method: | L/C, T/T, D/P |
| Supply Capacity: | 100,000 PCS/month |
Detail Information
Place of Origin
CHINA
Brand Name
XM-Motor
Certification
ISO9001
Model Number
1.8 ° 28HS Hybrid Stepper Motor
Name:
PM Servo Motor
Size:
Standard
Packing:
CTN Or Customized
Motor:
Stepper Motor
Phase:
2~4
Stepper Motor:
4 Wire Stepper Motor
High Torque:
Small Stepper Motor High Torque
Construction:
PM
Colour:
Customized
Color:
Customized
Highlight:
Micro PM Servo Motor
,Micro Servo Motor 2 Phase
,28HS Hybrid Stepper Motor
Product Description
1.8 ° 28HS Hybrid Stepper Motor (Insulation Resistance 100 MΩ Min. ,500VDC Dielectric Strength 500VAC For 1minute Shaft Radial Play 0.02Max. (450g-Load)
1.8 ° 28HS Hybrid Stepper Motor
Basic performance:
| (Item) | (Specifications) |
| (Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| (Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| (Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Motor specifications
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm |
Kg | |
| 28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
| 28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| 28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
| 28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| 28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
| 28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
