Name: Small Servo Motor 24V DC Servo Stepper Motor
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: 40SV(D)02302-0050B
Price: 5.00 USD
Availability: InStock

MOQ:	10000PCS
Price:	1~10 USD/PC
Standard Packaging:	packed with CTN
Delivery Period:	with in 35days
Payment Method:	L/C, T/T, D/P
Supply Capacity:	100,000 PCS/month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

XM-Motor

Certification

ISO9001

Model Number

40SV(D)02302-0050B

Phase:

2~4

Stepper Motor:

4 Wire Stepper Motor

High Torque:

Small Stepper Motor High Torque

Motor:

Stepper Motor

Construction:

Color:

Customized

Highlight:

Black Small Servo Motor

Small Servo Motor 24VDC

24VDC Servo Motor

Product Description

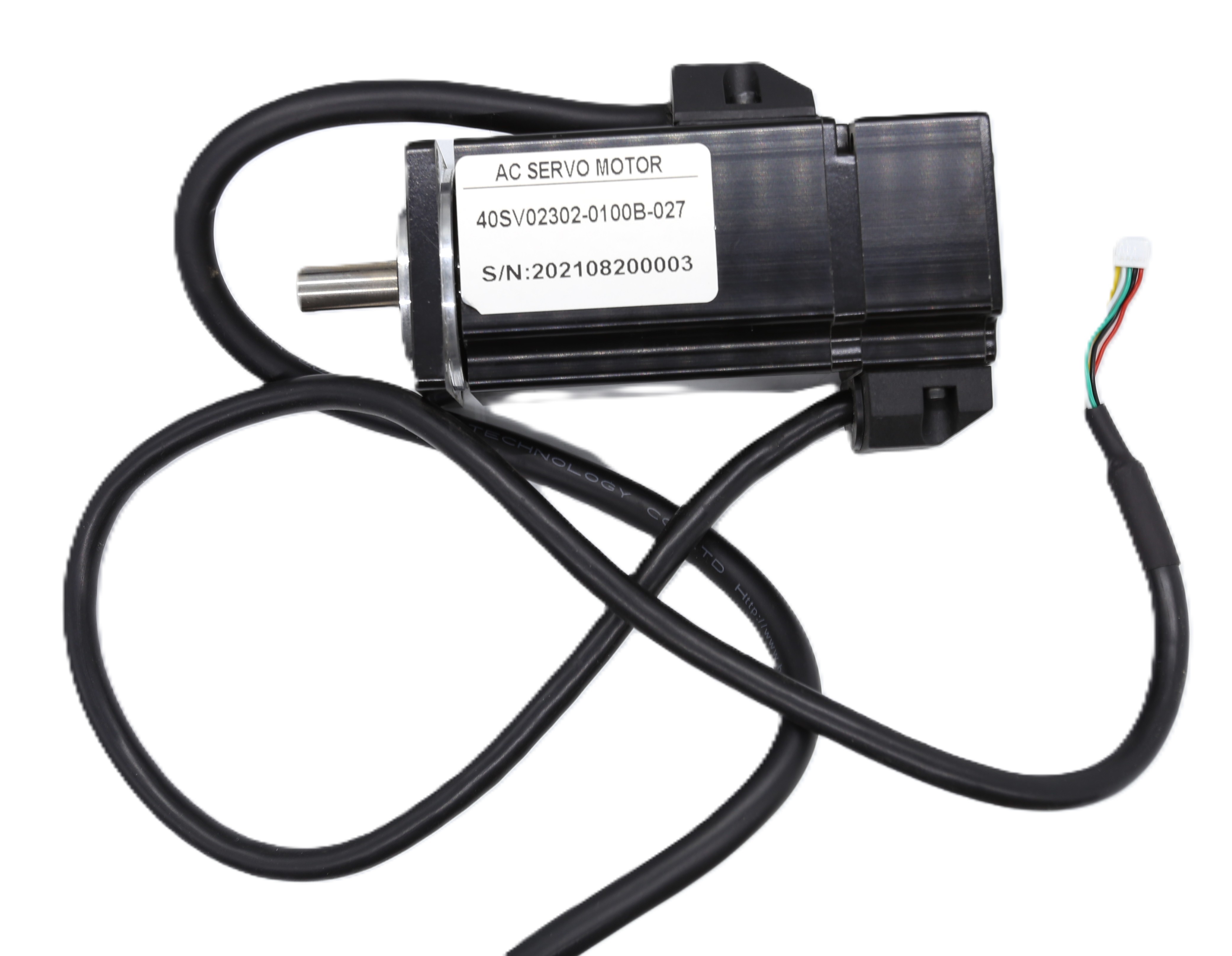

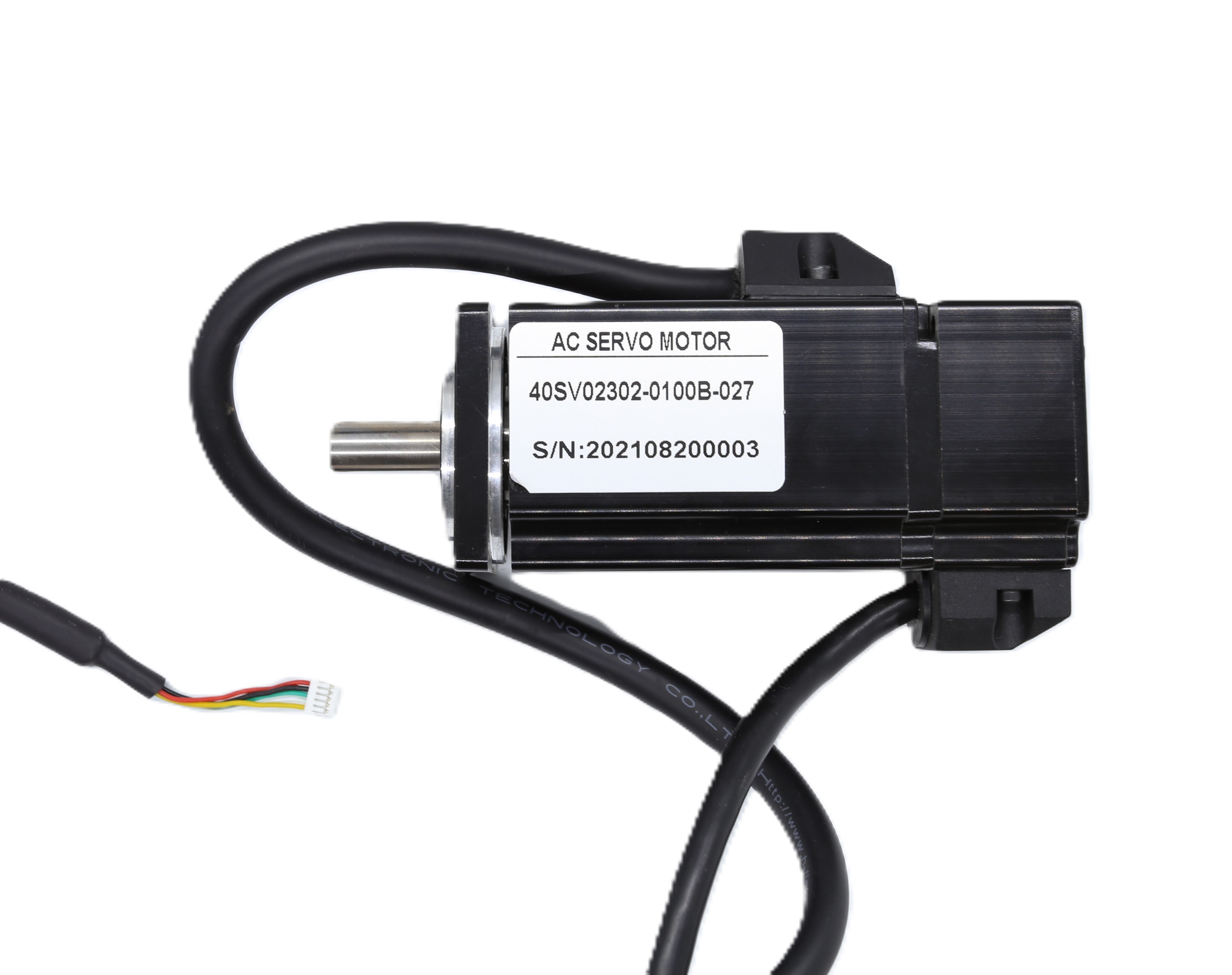

40SV(D)02302-0050B Rated Power P W 50 Rated Torque T N·M 0.16 Rated Voltage U VDC 24 Rated Current I A 3.5 Rated Speed N Rpm 3000

Motor Model: 40SV(D)02302-0050B two - phase simple servo stepper motor-40SV(D)02302-0050B

Genaral Specification:

Here is the technical specification parameters converted into English:

Attribute	Unit	Parameter
Rated Power $P$	W	50
Rated Torque $T$	N·m	0.16
Rated Voltage $U$	VDC	24
Rated Current $I$	A	3.5
Rated Speed $n$	rpm	3000
Number of Pole Pairs $p$	-	4
Instantaneous Maximum Torque $T_{max}$	N·m	0.32
Instantaneous Maximum Current $I_{max}$	A	7
Maximum Speed $n_{max}$	rpm	5400
Line Resistance $R$	Ω	0.68
Line Inductance $L$	mH	0.38
Rotor Inertia $J$		0.036
Back EMF Constant $K_{e}$	V/krpm	3.1
Electrical Time Constant $T_{e}$	ms	0.56
Length (Including Brake) $L_{含刹车}$ *	mm	80 (108)
Insulation Class	-	F (155℃)
Protection Class	-	IP54 (Customizable upon customer request)
Operating Temperature	℃	-20～40℃
Environment	-	Ambient Temperature: -20～40℃; Relative Humidity: <90%; Altitude: <1000m

Above only for representative products, products of special request can be made according to the customer request.

Dimensions:

Small Servo Motor 24V DC Servo Stepper Motor 0

Wiring Diagram:(接线图)

矩频特性曲线(Torque-frequency characteristic curve):

Small Servo Motor 24V DC Servo Stepper Motor 4
