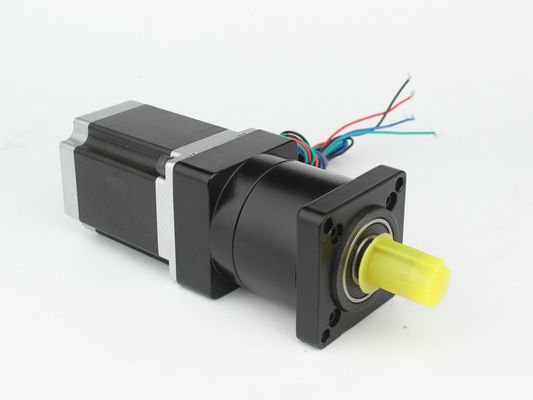

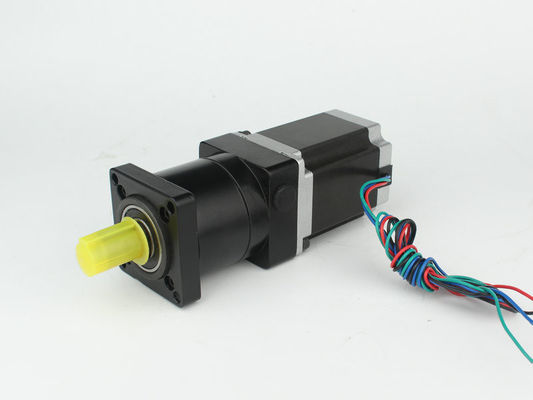

NEMA 24 Servo Motor 2 Phase Simple Servo Stepper Motor XM60HS-ED
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | CTN OR CUSTOMIZED |
| Delivery Period: | 35DAYS |
| Payment Method: | D/P,T/T,L/C |
| Supply Capacity: | 100000PCS/MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
XM-Motor
Certification
ISO9001
Model Number
NEMA24 Two-Phase Simple Servo Stepper Motor
Name:
NEMA 24 Servo Motor
Size:
Standard
Motor:
Stepper Motor
Phase:
2~4
Packing:
CTN Or Customized
Stepper Motor:
4 Wire Stepper Motor
High Torque:
Small Stepper Motor High Torque
Construction:
PM
Colour:
Customized
Color:
Customized
Highlight:
NEMA 24 Servo Motor
,Servo Motor 2 Phase
,Simple Servo Stepper Motor
Product Description
Servo Motor NEMA24 Two-Phase Simple Servo Stepper Motor XM60HS-ED Shaft Axial Play) 0.08Max. (450g-Load)
Product details
Model: NEMA24 NEMA24 Two-Phase Simple Servo Stepper Motor-XM60HS-ED
Genaral Specification:
| (Item) | Specifications) |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1s 3mA |
| (Shaft Radial Play) | 0.02Max. (450g-load) |
| (Shaft Axial Play) | 0.08Max. (450g-load) |
| Max. radial force) | 75N (20mm from the flange) |
| Max. axial force) | 15N |
Electrical Specification:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
| 60HS88-4004BFED-0.35M | 1.8 | 88 | 4.0 | 0.65 | 2.4 | 3.1 | 4 | 1000 | 840 | 1.4 |
| 60HS100-4004BFED-0.35M | 1.8 | 100 | 4.0 | 0.7 | 3.0 | 4.0 | 4 | 1100 | 980 |
2.0
|
Above only for representative products, products of special request can be made according to the customer request.
Dimensions:
Wiring Diagram:
