Name: 76ZYT High Torque Brushed DC Motor 3300Rpm Standard Size ROHS
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: 76ZYT DC Brushed motor
Price: 5.00 USD
Availability: InStock

76ZYT High Torque Brushed DC Motor 3300Rpm Standard Size ROHS

10000PCS

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: DC Brushed Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

76ZYT DC Brushed Motor

High Torque Brushed DC Motor

High Torque Brushed Motor 3300Rpm

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: 76ZYT DC Brushed motor

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35DAYS

Payment Terms: T/T,D/P,L/C

Supply Ability: 100000PCS/MONTH

Gallery

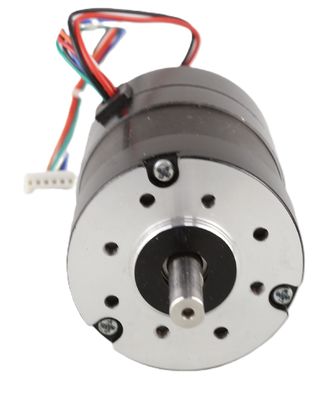

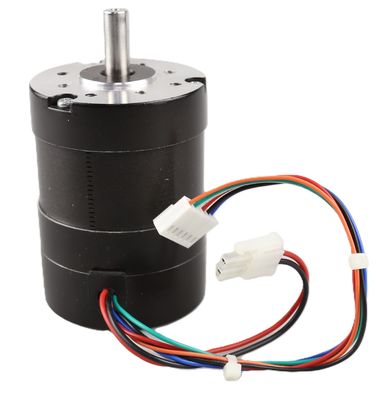

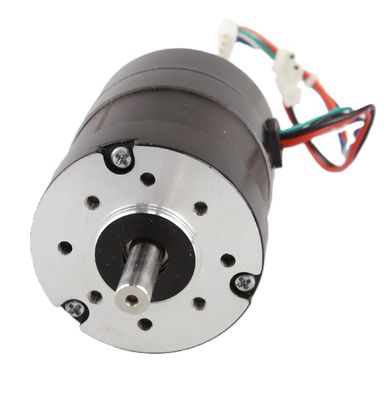

76ZYT High Torque Brushed DC Motor 3300Rpm Standard Size ROHS

Product Description

DC Brushed Motor 76ZYT DC Brushed Motor Rated Speed 3300 Rated Torque 0.3 No LoadSpeed 4000

Product details

Motor Specifications:

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection level: IP54Protection class IP54, option for IP56

Insulation level: Operating temperature :-40℃~+140℃ Insulation class: F

Authentication:CE & ROHS Certified by CE and ROHS

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

Motor Main Characteristics:

Model	76ZYT01A	76ZYT02A	76ZYT02B	76ZYT02C	76ZYT03A	76ZYT04A	76ZYT05.A
Rated Voltage V dc	24v (option for 12v up to 230vdc)
Rated Speed rpm	3300	3200	4000	7500	3200	3150	3150
Rated Torque N.m	0.3	0.4	0.4	0.5	0.6	0.7	0.8
No loadSpeed rpm	4000	3800	4500	8200	3800	3700	3700
Weight kg	1.5	2	2	2	2.5	2.85	3
Motor Length mm	98	118	118	118	138	150	160
Output Power W	104	151	168	393	201	231	264

76ZYT High Torque Brushed DC Motor 3300Rpm Standard Size ROHS 1 Drawing
