Home /Products/Brushless DC Motor/36mm Brushless Motor XM36BL 120 Degree Electrical Angle High Torque DC Brushless Motor

36mm Brushless Motor XM36BL 120 Degree Electrical Angle High Torque DC Brushless Motor

10000PCS
MOQ
1~10 USD/PC
Price
36mm Brushless Motor XM36BL 120 Degree Electrical Angle High Torque DC Brushless Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 36mm Brushless Motor
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Material: Black Or Customized
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

36mm Brushless Motor

,

High Torque DC Brushless Motor
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: Brushless DC motor 36MM-XM36BL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35days
Payment Terms: L/C,D/P,T/T
Supply Ability: 100000PCS/month
Product Description
Brushless DC Motor Brushless DC Motor 36MM-XM36BL Hall Effect Angle 120 Degree Electrical Angle
Brushless DC motor 36MM-XM36BL

A stepper motor is an electromagnetic mechanical device that converts electrical pulse signals into angular displacement or linear displacement. It has the advantages of high precision, high reliability, and easy control, and is widely used in the following fields:



Industrial automation and CNC machine tools: It is used to control the movement of the machine tool workbench, the feed of the cutting tool, etc., to achieve precise control of machining dimensions and shapes and ensure machining accuracy.



Automated production lines, 3D printing, office equipment.



Medical devices and medical imaging equipment: In devices such as CT and MRI, it is used to control the movement of the scanning bed and the positioning of the detector to ensure the accuracy and stability of imaging, as well as the driving of medical devices.



Aerospace and intelligent robots: As the driving element of the robot joints, it precisely controls the movement of the robot's arms, legs and other joints, enabling precise movement and attitude control of the robot, allowing the robot to complete various complex tasks.



Automobile seat adjustment, automobile window control, and so on.


Model: Brushless DC motor 36MM-XM36BL



General Specification
Item Specification
 Winding type  Star
Hall effect angle  120 degree electrical angle
 Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
Max.radial force 15N ＠10mm form the flange
 Max.axial force 10N
 Insulation class Class B
 Dielectric strength 500VDC for one minute
 Insulation resistance 100MΩ Min.,500VDC
Electrical Specification:
    /Model
Specification Unit JK36BL40 JK36BL50 JK36BL60
Number Of Phase Phase 3
Number Of Poles Poles 4
 Rated Voltage VDC 12 24
 Rated Speed Rpm 4000 6000 8000
 Rated Torque mN.m 12 21 30
 Rated Power W 5 13 25
 Peak Torque mN.m 36 63 90
 Peak Current Amps 1.6 2.1 3.8
 Torque Constant mN.m/A 20.8 30.6 24.1
 Rotor Inertia g.c㎡ 4.6 8.2 12
 Body Length mm 40 50 60
Weight Kg 0.15 0.18 0.22
Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
 Working Humidity 85% RH
 Working Environment Outdoors (without direct sunlight), no corrosive gases, no flammable gases, no oil mist, no dust
Altitude 1000 meters or below



Dimensions:





Dimensions:

(Unit=mm)

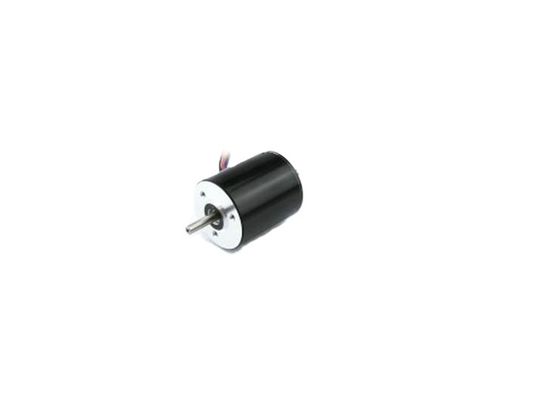

36mm Brushless Motor XM36BL 120 Degree Electrical Angle High Torque DC Brushless Motor 0

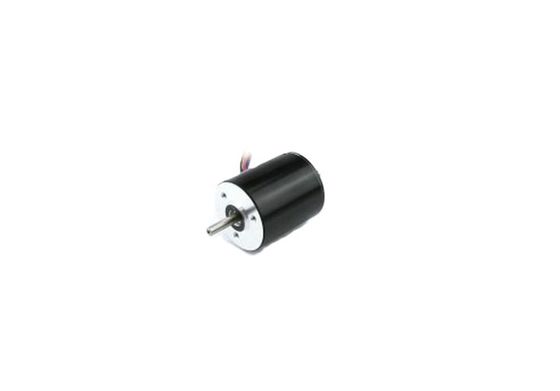

36mm Brushless Motor XM36BL 120 Degree Electrical Angle High Torque DC Brushless Motor 1
