Home /Products/Brushless DC Motor/IP30 Brushless DC Motor 36mm-XM36BL 42mm Round Brushless Direct Current BLDC Motor

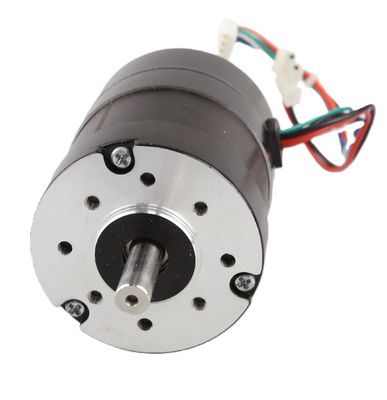

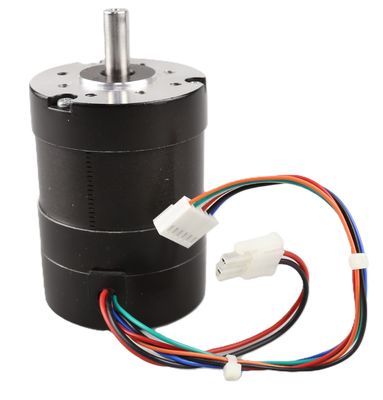

IP30 Brushless DC Motor 36mm-XM36BL 42mm Round Brushless Direct Current BLDC Motor

10000PCS
MOQ
1~10 USD/PC
Price
IP30 Brushless DC Motor 36mm-XM36BL 42mm Round Brushless Direct Current BLDC Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Brushless DC Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Hall Effect Angle: 120 Degree Electrical Angle
Max.radial Force: 15N ＠10mm Form The Flange
Shaft Run Out: 0.025mm
Insulation Class: Class B
Dielectric Strength: 500VDC For One Minute
Insulation Resistance: 100MΩ Min.,500VDC
Degree Of Protection: IP30
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

IP30 Brushless DC Motor

,

Round Brushless Direct Current Motor

,

Brushless Direct Current BLDC Motor
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 42MM Round Brushless Direct Current (BLDC) Motor-XM42BL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35days
Payment Terms: L/C,D/P,T/T
Supply Ability: 100000PCS/month
Product Description
Brushless DC Motor Brushless DC Motor 36MM-XM36BL 42MM Round Brushless Direct Current (BLDC) Motor-XM42BL

Model: 42MM Round Brushless Direct Current (BLDC) Motor-XM42BL



General Specification
(Item Specification
Winding type  Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
 Max.radial force 15N ＠10mm form the flange
 Max.axial force 10N
 Insulation class Class B
Dielectric strength 500VDC for one minute
 Insulation resistance 100MΩ Min.,500VDC
Electrical Specification:
    Model
Specification Unit JK42BL30 JK42BL60 JK42BL85 JK42BL93
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24 36 24 24
 Rated Speed Rpm 3500 4000 4000 6300
 Rated Torque mN.m 18 80 150 115
Rated Power W 6.5 32 62 76
Peak Torque mN.m 60 240 450 500
Peak Current Amps 1.5 5 7.5 10
 Torque Constant mN.m/A 48.7 38.5 38.6 28.7
 Rotor Inertia g.c㎡ 15.6 33 84 94
 Body Length mm 30 60 85 93
Weight Kg 0.25 0.35 0.7 0.8
Sensor /Honeywell
Insulation Class B
 Degree of Protection IP30
Storage Temperature -25～+70℃
 Operating Temperature -15～+50℃
 Working Humidity 85% RH
 Working Environment Outdoors (without direct sunlight), no corrosive gases, no flammable gases, no oil mist, no dust
Altitude 1000 meters or less

Dimensions:

(Unit=mm)

IP30 Brushless DC Motor 36mm-XM36BL 42mm Round Brushless Direct Current BLDC Motor 0





IP30 Brushless DC Motor 36mm-XM36BL 42mm Round Brushless Direct Current BLDC Motor 1

A stepper motor is an electromagnetic mechanical device that converts electrical pulse signals into angular displacement or linear displacement. It has the advantages of high precision, high reliability, and easy control, and is widely used in the following fields:



Industrial automation and CNC machine tools: It is used to control the movement of the machine tool workbench, the feed of the cutting tool, etc., to achieve precise control of machining dimensions and shapes and ensure machining accuracy.



Automated production lines, 3D printing, office equipment.



Medical devices and medical imaging equipment: In devices such as CT and MRI, it is used to control the movement of the scanning bed and the positioning of the detector to ensure the accuracy and stability of imaging, as well as the driving of medical devices.



Aerospace and intelligent robots: As the driving element of the robot joints, it precisely controls the movement of the robot's arms, legs and other joints, enabling precise movement and attitude control of the robot, allowing the robot to complete various complex tasks.



Automobile seat adjustment, automobile window control, and so on.
