Home /Products/Brushless DC Motor/High Speed Brushless DC Motor 2 Phase 4 Phase 22mm Brushless Motor

High Speed Brushless DC Motor 2 Phase 4 Phase 22mm Brushless Motor

10000PCS
MOQ
1~10 USD/PC
Price
High Speed Brushless DC Motor 2 Phase 4 Phase 22mm Brushless Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 22mm Brushless Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2-4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

22mm Brushless Motor

,

High Speed Brushless DC Motor

,

High Speed BLDC Motor 2 Phase
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: XM22BL 22mm
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35days
Payment Terms: L/C,D/P,T/T
Supply Ability: 100000PCS/month
Product Description
Brushless DC Motor 86BL Radial Play 0.02mm＠450g Max.Radial Force 10N ＠10mm Form The Flange Insulation Resistance 100MΩ Min.,500VDC

Brushless DC motor XM22BL 22mm

A stepper motor is an electromagnetic mechanical device that converts electrical pulse signals into angular displacement or linear displacement. It has the advantages of high precision, high reliability, and easy control, and is widely used in the following fields:



Industrial automation and CNC machine tools: It is used to control the movement of the machine tool workbench, the feed of the cutting tool, etc., to achieve precise control of machining dimensions and shapes and ensure machining accuracy.



Automated production lines, 3D printing, office equipment.



Medical devices and medical imaging equipment: In devices such as CT and MRI, it is used to control the movement of the scanning bed and the positioning of the detector to ensure the accuracy and stability of imaging, as well as the driving of medical devices.



Aerospace and intelligent robots: As the driving element of the robot joints, it precisely controls the movement of the robot's arms, legs and other joints, enabling precise movement and attitude control of the robot, allowing the robot to complete various complex tasks.



Automobile seat adjustment, automobile window control, and so on.

General Specification
(Item) (Specification)
 Winding type  Star
 Hall effect angle  120 degree electrical angle
Shaft run out 0.025mm
 Radial play 0.02mm＠450g
 End play 0.08mm＠450g
 Max.radial force 10N ＠10mm form the flange
Max.axial force 2N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC
Electrical Specification:
    Model
Specification Unit JK22BL45 JK22BL70
Number Of Phase Phase 3
 Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed Rpm 4600 3500
 Rated Torque mN.m 8 22
Rated Power W 3.4 8
Peak Torque mN.m 21 50
 Peak Current Amps 1.1 1.5
 Torque Constant mN.m/A 30.2 35.5
 Rotor Inertia g.c㎡ 0.66 1.32
 Body Length mm 45 70
Weight Kg 0.07 0.12
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
 Operating Temperature -15～+50℃
 Working Humidity 85% RH
Working Environment Outdoors (without direct sunlight), no corrosive gases, no flammable gases, no oil mist, no dust
 Altitude 1000 meters or less





Dimensions:

(Unit=mm)

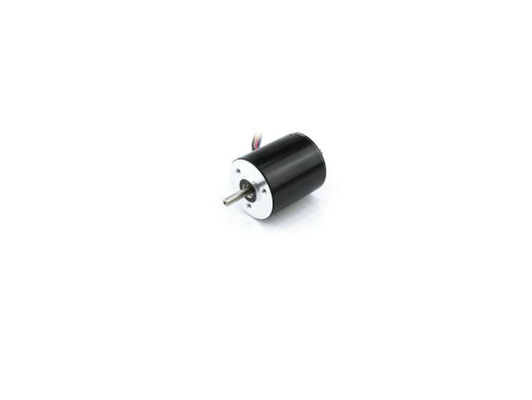

High Speed Brushless DC Motor 2 Phase 4 Phase 22mm Brushless Motor 0

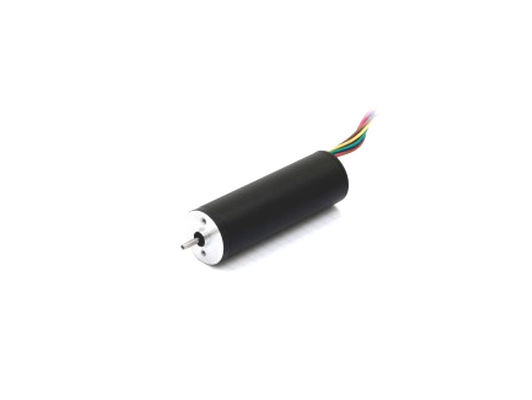

High Speed Brushless DC Motor 2 Phase 4 Phase 22mm Brushless Motor 1

Tag:

Brushless Direct Current Motor

BLDC Motor

2 Phase Brushless Motor
