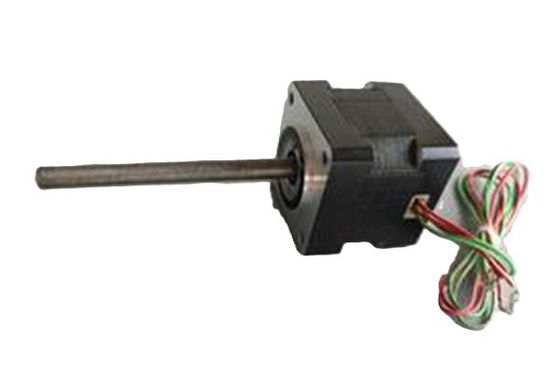

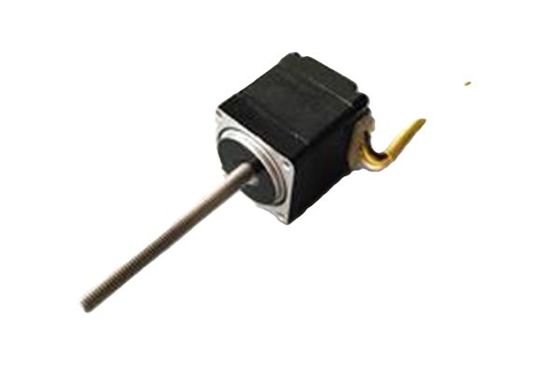

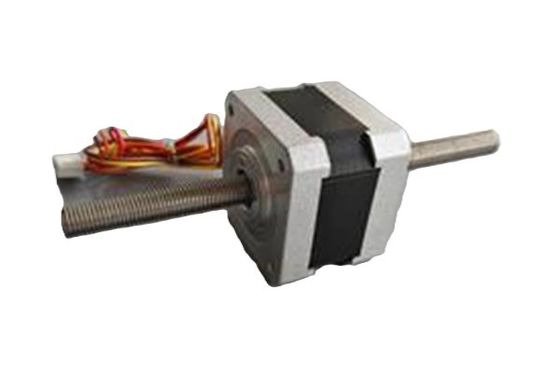

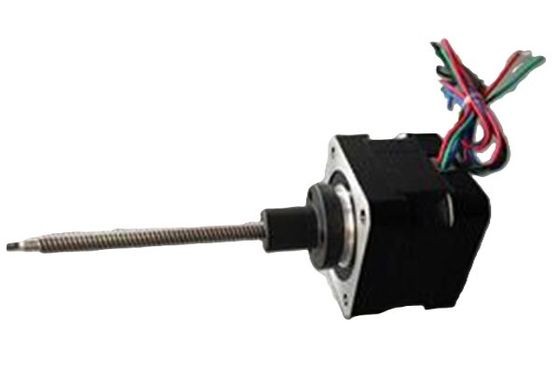

Hybrid Linear Stepper Motor 1.8° 42HS Two Phase Stepper Motor High Torque

10000PCS
MOQ
1~10 USD/PC
Price
Hybrid Linear Stepper Motor 1.8° 42HS Two Phase Stepper Motor High Torque
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Name: Stepper Linear Motor
Highlight:

Hybrid Linear Stepper Motor

,

42HS Two Phase Stepper Motor

,

Two Phase Stepper Motor High Torque
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 1.8° 42HS Two-Phase Hybrid Stepper Motor General Specifications
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description

Stepper Linear Motor 1.8° 42HS Two-Phase Hybrid Stepper Motor General Specifications Step Angle 1.8° Temperature Rise 80℃ Max Ambient Temperature -20℃~+50℃



1.    1.8° 42HS Two-Phase Hybrid Stepper Motor General Specifications





Item Specifications
Step Angle 1.8°
Temperature Rise 80℃ max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02 Max. (450g-load)
Shaft Axial Play 0.08 Max. (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Axial Force 15N



2.  Electrical Specification:



Model No. Step Angle (°) Motor Length (L) mm Current /Phase (A) Resistance /Phase (Ω) Inductance /Phase (mH) Holding Torque (N.m) # of Leads Detent Torque (g.cm) Rotor Inertia (g.cm) Mass (Kg)
57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4





Screw Rod Specification Table

Screw Diameter (mm) Screw Lead (mm) Screw Pitch (mm) Travel per Step (mm)
Tr8 1 1 0.005
Tr8 10 2 0.05
2 2 1 0.01
12 2 - 0.06
3 1.5 - 0.015
14 2 - 0.07
4 2 - 0.02
8 2 - 0.04
Tr10 2 2 0.01
Tr12 2 2 0.01
3 1.5 - 0.015
3 3 - 0.015
4 2 - 0.02
8 2 - 0.04
10 2 - 0.05
12 2 - 0.06

3. Dimensions:(Unit=mm)

1,External Shaft motor



Hybrid Linear Stepper Motor 1.8° 42HS Two Phase Stepper Motor High Torque 0

   螺母/Nut: 1.POM螺母/POM Nut
2.铜螺母/Copper Nut

Hybrid Linear Stepper Motor 1.8° 42HS Two Phase Stepper Motor High Torque 1

2,Non Captive motor

Hybrid Linear Stepper Motor 1.8° 42HS Two Phase Stepper Motor High Torque 2
