Home /Products/Stepper Linear Motor/4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase

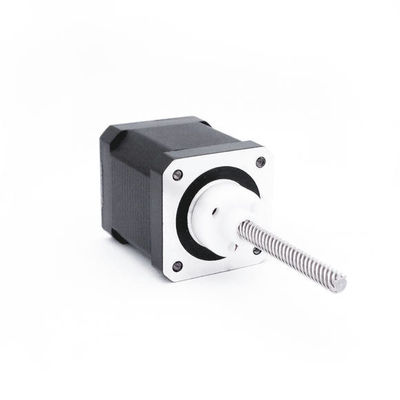

4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase

10000PCS
MOQ
1~10 USD/PC
Price
4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Small Linear Stepper Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

Small Linear Stepper Motor 42BYGHL

,

4 Wire Small Linear Stepper Motor

,

Micro Stepper Motor 2 Phase
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 42BYGHL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description



Stepper Linear Motor 42BYGHL Step Accuracy ± 5% Temperature Rise 80 ℃ Max. Insulation Resistance 100MΩ Min. @ 500 VDC Ambient Temperature -20℃ ~ +50℃ Dielectric Strength 500VA, 1 Minute



42BYGHL Product Technical Parameters

Product Feature Technical Parameter
Step Accuracy ± 5%
Temperature Rise 80 ℃ Max.
Insulation Resistance 100MΩ Min. @ 500 VDC
Ambient Temperature -20℃ ~ +50℃
Dielectric Strength 500VA, 1 minute
Max Radial Force 28N (20mm from front flange)
Max Axial Force 10N

Motor Technical Data

Model Step Angle (°/Step) Lead Wires (NO.) Voltage (V) Current (A/Phase) Resistance (Ω/Phase) Inductance (mH/Phase) Holding Torque (kg·cm) Body Height (mm) Weight (kg)
42BYGHL208-12A 1.8 4 12.0 0.4 30.0 42.0 2.6 34 0.20
42BYGHL613-03A 1.8 4 2.3 1.7 1.35 3.0 3.5 40 0.26
42BYGHL810-09 1.8 4 3.8 1.2 3
*The above are only representative products, and derivative products can be customized according to customer requirements.



Wiring Diagram and External View Drawing





4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase 0
