Home /Products/Stepper Linear Motor/2 Phase 4 Phase Stepper Linear Motor 35BYGL Micro Stepper Motor High Torque

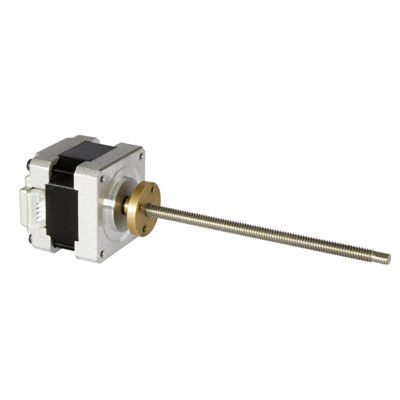

2 Phase 4 Phase Stepper Linear Motor 35BYGL Micro Stepper Motor High Torque

10000PCS
MOQ
1~10 USD/PC
Price
2 Phase 4 Phase Stepper Linear Motor 35BYGL Micro Stepper Motor High Torque
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stepper Linear Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

4 Phase Stepper Linear Motor

,

Stepper Linear Motor 35BYGL

,

Micro Stepper Motor High Torque
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 35BYGL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description



35BYGL Product Technical Parameters

Parameter Specification
Step Accuracy ± 5%
Temperature Rise 80 ℃ Max.
Ambient Temperature -20℃ ~ +50℃
Insulation Resistance 100MΩ Min. (500 VDC)
Dielectric Strength

500VAC 1S
Technical Data
Motor Model Step Length (MM/STEP) Body Length (MM) Phase Voltage (V) Phase Current (A) Phase Resistance (Ω) Phase Inductance (MH) Static Torque (KG.CM) Lead Wire Count (NO.) Moment of Inertia (G.CM²) Detent Torque (G.CM) Weight (KG)
---------------- ---------------- ---------------- ---------------- ---------------- ---------------- ---------------- ---------------- ---------------- ---------------- ----------------
  35BYGL402E 0.01 34 3.6 0.8 4.5 4.5 1.0 4 13 95 0.17
  35BYGL401 0.01 34 12 0.5 24 12 1.0 6 13 95 0.17



*The above are only representative products, and derivative products can be customized according to customer requirements.



Wiring Diagram and External View Drawing

2 Phase 4 Phase Stepper Linear Motor 35BYGL Micro Stepper Motor High Torque 0
