Home /Products/Stepper Linear Motor/High Torque Small Stepper Linear Motor 39BYGL 4 Wire Stepper Motor Standard

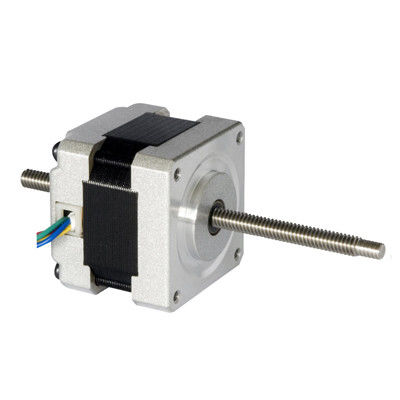

High Torque Small Stepper Linear Motor 39BYGL 4 Wire Stepper Motor Standard

10000PCS
MOQ
1~10 USD/PC
Price
High Torque Small Stepper Linear Motor 39BYGL 4 Wire Stepper Motor Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stepper Linear Motor
Material: Black Or Customized
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
Size: Standard
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

High Torque Stepper Linear Motor

,

Stepper Linear Motor 39BYGL

,

High Torque Small Stepper Motor
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 39BYGL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description



Stepper Linear Motor 39BYGL Step Accuracy ± 5% Temperature Rise 80 ℃ Max. Ambient Temperature -20℃ ~ +50℃ Insulation Resistance 100MΩ Min. (500 VDC) Dielectric Strength 500VAC 1S



39BYGL Product Technical Parameters

Parameter Specification
Step Accuracy ± 5%
Temperature Rise 80 ℃ Max.
Ambient Temperature -20℃ ~ +50℃
Insulation Resistance 100MΩ Min. (500 VDC)
Dielectric Strength

500VAC 1S



Motor Model Step Length (mm/step) Body Length (mm) Phase Voltage (V) Phase Current (A) Phase Resistance (Ω) Phase Inductance (mH) Static Torque (kg·cm) Lead Wires (NO.) Detent Torque (kg·cm) Moment of Inertia (kg·cm²) Weight (kg)
STEPPER MOTOR 39BYGL215A 0.01 34 12 0.4 30 42 0.21 4 0.12 0.02 0.18



*The above are only representative products, and derivative products can be customized according to customer requirements.



Wiring Diagram and External View Drawing







High Torque Small Stepper Linear Motor 39BYGL 4 Wire Stepper Motor Standard 0
