Home /Products/Stepper Linear Motor/Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase

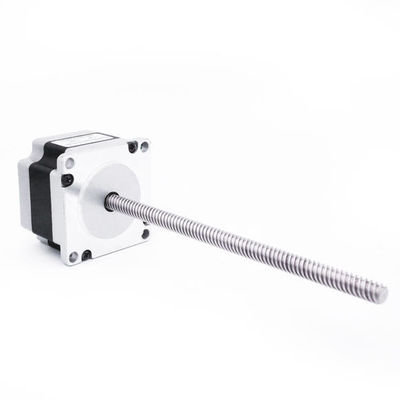

Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase

10000PCS
MOQ
1~10 USD/PC
Price
Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stepper Linear Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

Permanent Magnet Stepper Linear Motor

,

Stepper Linear Motor 57BYGHL

,

Step Angle Stepper Motor Two Phase
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 57BYGHL
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description

Stepper Linear Motor 57BYGHL Step Angle Accuracy Step Accuracy Accuracy Value ± 5% Temperature Rise Temperature Rise Maximum Value 80 ℃ Max. Insulation Resistance Insulation Resistance



57BYGHL Product Technical Parameters

Product Parameter English Description
Step Angle Accuracy Step Accuracy
Accuracy Value ± 5%
Temperature Rise Temperature Rise
Maximum Value 80 ℃ Max.
Insulation Resistance Insulation Resistance
Minimum Value & Test Voltage 100MΩ Min. 500 VDC
Ambient Temperature Ambient Temperature
Temperature Range -20℃~+50℃
Dielectric Strength Dielectric Strength
Test Condition 500VAC 1 minute
Maximum Radial Load Max Radial Force
Load Value & Test Position 75N (20mm from front flange)
Maximum Axial Load Max Axial Force
Load Value 15N

Motor Technical Data

Model Step Angle (°/Step) Number of Leads (NO.) Voltage (V) Current (A/Phase) Resistance (Ω/Phase) Inductance (mH/Phase) Holding Torque (kg.cm) Body Height (mm) Weight (kg)
57BYGHL013-15 1.8 4 2.7 1.5 1.8 4.0 4.0 41 0.45
57BYGHL216-10 1.8 4 3.3 1.7 1.95 6.0 10.0 51 0.65
57BYGHL401-03 1.8 4 6.0 0.6 10.0 32.0 9.0 56 0.70
57BYGHL602-07 1.8 4 10.4 0.8 13.0 42.0 19.8 78 1.00
57BYGHL815-01 1.8 4 7.36 1.6 4.6 16.0 20.0 84 1.13
*The above are only representative products, and derivative products can be customized according to customer requirements.



Wiring Diagram and External View Drawing





Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase 0
