Home /Products/Stepper Linear Motor/Micro Linear Stepper Motor 57BYGN Step Angle Stepper Motor 4 Phase

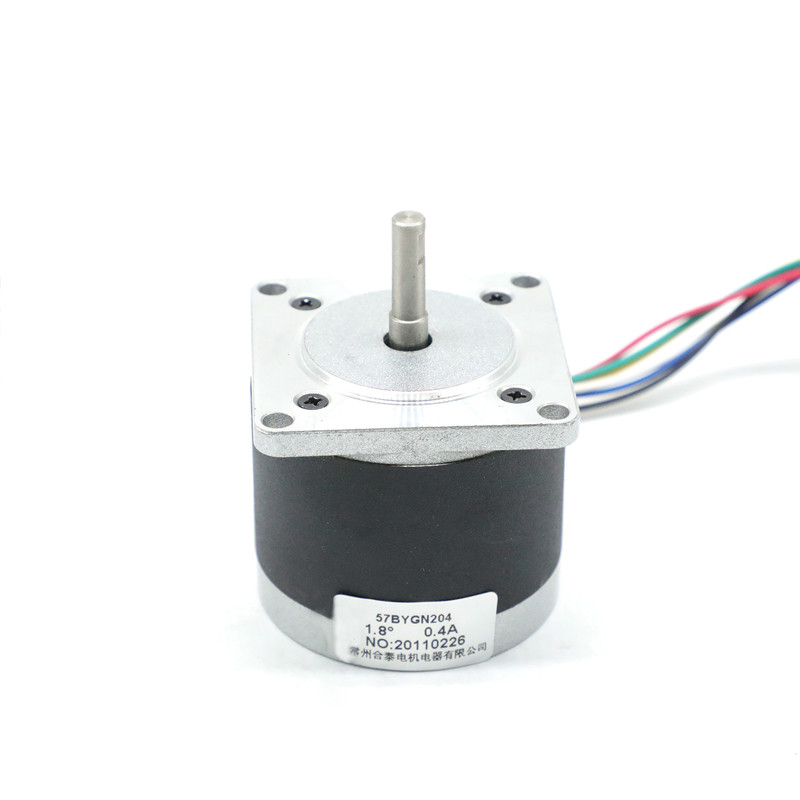

Micro Linear Stepper Motor 57BYGN Step Angle Stepper Motor 4 Phase

10000PCS
MOQ
1~10 USD/PC
Price
Micro Linear Stepper Motor 57BYGN Step Angle Stepper Motor 4 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Micro Linear Stepper Motor
Material: Black Or Customized
Size: Standard
Packing: CTN Or Customized
Motor: Stepper Motor
Phase: 2~4
Stepper Motor: 4 Wire Stepper Motor
High Torque: Small Stepper Motor High Torque
Construction: PM
Highlight:

Micro Linear Stepper Motor 57BYGN

,

Miniature Linear Stepper Motor

,

Step Angle Stepper Motor 4 Phase
Basic Infomation
Place of Origin: CHINA
Brand Name: XM-Motor
Certification: ISO9001
Model Number: 57BYGN
Payment & Shipping Terms
Packaging Details: CTN OR CUSTOMIZED
Delivery Time: 35DAYS
Payment Terms: D/P,L/C,T/T
Supply Ability: 100000pcs/month
Product Description



Stepper Linear Motor 57BYGN Step Angle Accuracy Step Accuracy ± 5% Temperature Rise Temperature Rise 80 ℃ Max Insulation Resistance Insulation Resistance 100MΩ Min. (500 VDC) Ambient Temperature



57BYGN Product Technical Parameters

Product Feature English Expression Specific Parameters
Step Angle Accuracy Step Accuracy ± 5%
Temperature Rise Temperature Rise 80 ℃ Max
Insulation Resistance Insulation Resistance 100MΩ Min. (500 VDC)
Ambient Temperature Ambient Temperature -20℃~+50℃
Dielectric Strength Dielectric Strength 500VAC 1 minute
Maximum Radial Load Max Radial Force 75N (20mm from front flange)
Maximum Axial Load Max Axial Force 15N

Motor Technical Data

Motor Model Step Angle (°/Step) Lead Wire Count (NO.) Voltage (V) Current (A/Phase) Resistance (Ω/Phase) Inductance (mH/Phase) Holding Torque (kg·cm) Body Height (mm) Weight (kg)
57BYGN001 1.8 6 12 0.38 32 25 3.0 41 0.45
57BYGN027 1.8 4 2.8 1.4 2.1 3.5 3.9 41 0.45
57BYGN200-19A 1.8 6 5 1.0 5.0 11.5 5.8 51 0.65
57BYGN204 1.8 6 11.2 0.4 28 30 3.8 51 0.65
57BYGN400-11A 1.8 4 5.5 1.1 5.0 12 7.8 56 0.70
57BYGN412 1.8 4 4.4 2.00 2.2 6.33 9.0 56 0.70
*The above are only representative products, and derivative products can be customized according to customer requirements.



Wiring Diagram and External View Drawing





Micro Linear Stepper Motor 57BYGN Step Angle Stepper Motor 4 Phase 0
