60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
| MOQ: | 1PCS |
| Price: | 1~10 USD/PC |
| Standard Packaging: | Carton |
| Delivery Period: | 20 ~ 30 days after receiving deposit |
| Payment Method: | L/C, T/T, D/P |
| Supply Capacity: | 100,000 PCS/month |
Detail Information
Place of Origin
CHINA
Brand Name
XM-Motor
Certification
ISO9001 ROHS
Model Number
HB60
Step Angle:
1.8° ± 5%
IP Rating:
40
Insulation Resistance:
100 MegOhms
Current:
2~4.5
Torque:
0.7~4 N.m
Motor Length:
47~110mm
Name:
60mm Hybrid Stepper Motor For CNC Machines And Printing Equipment
Color:
Customized
Highlight:
Servo Motor NEMA 34
,Stepper Servo Motor
,NEMA 34 Servo Motor
Product Description

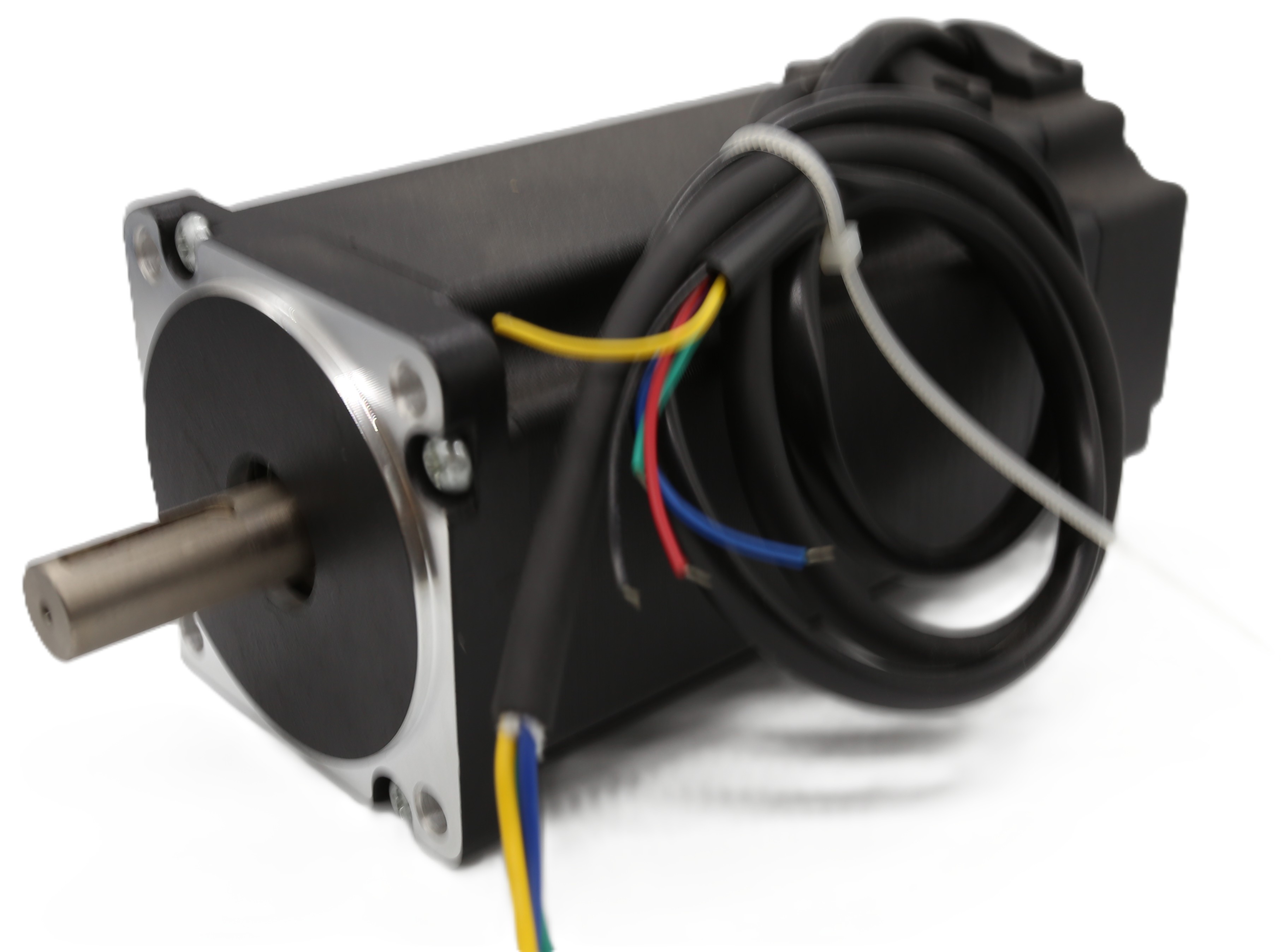

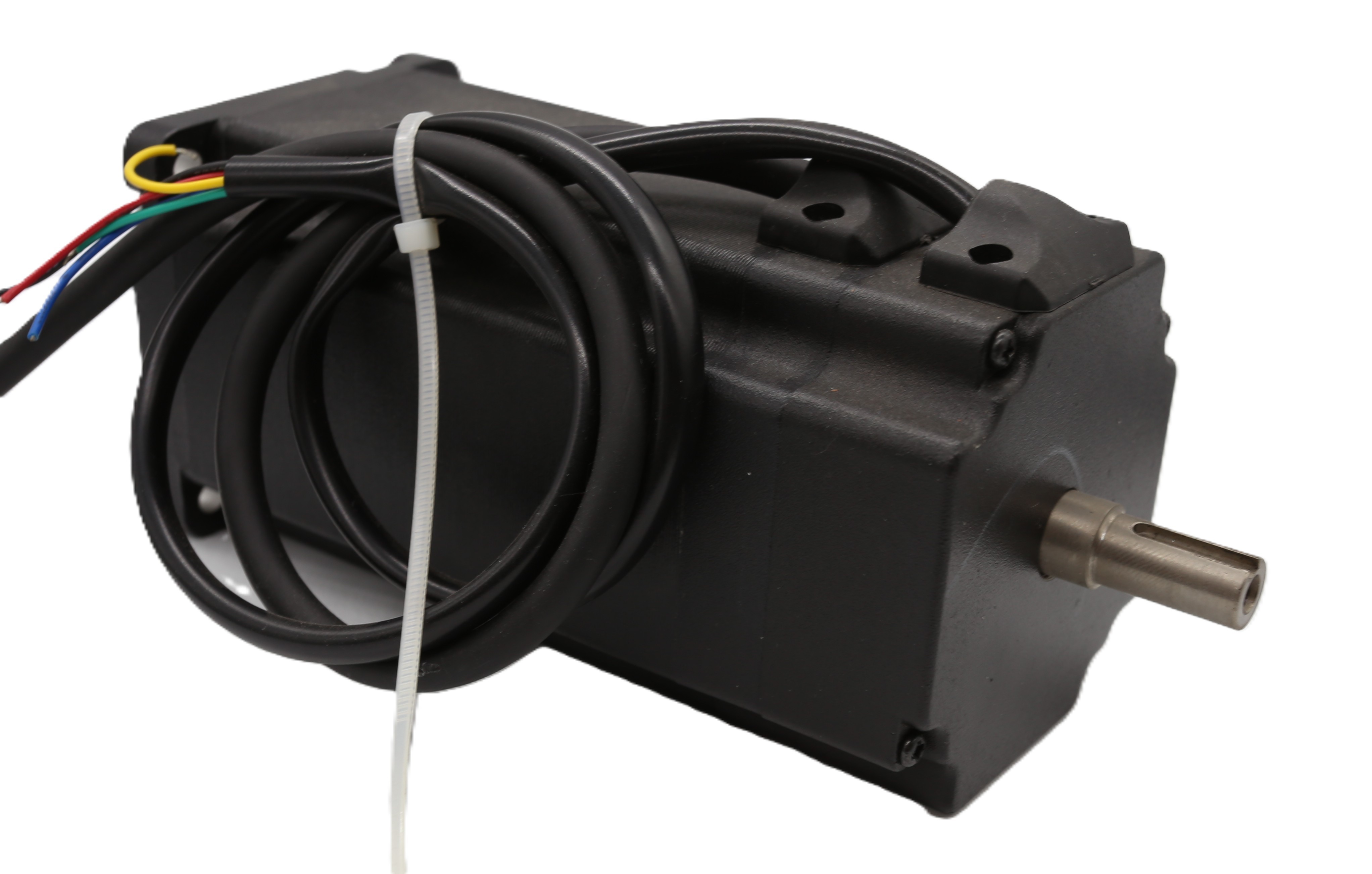

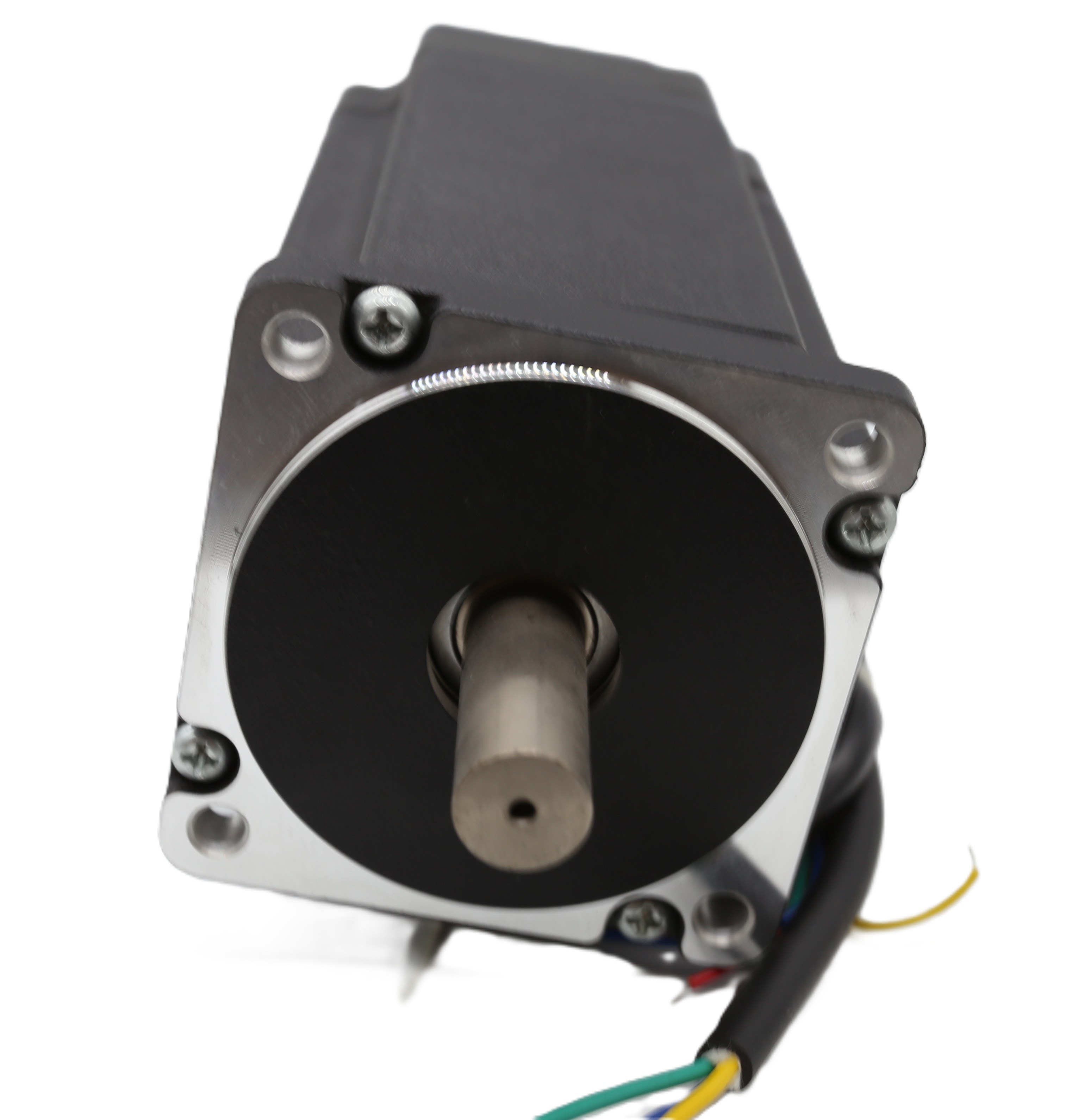

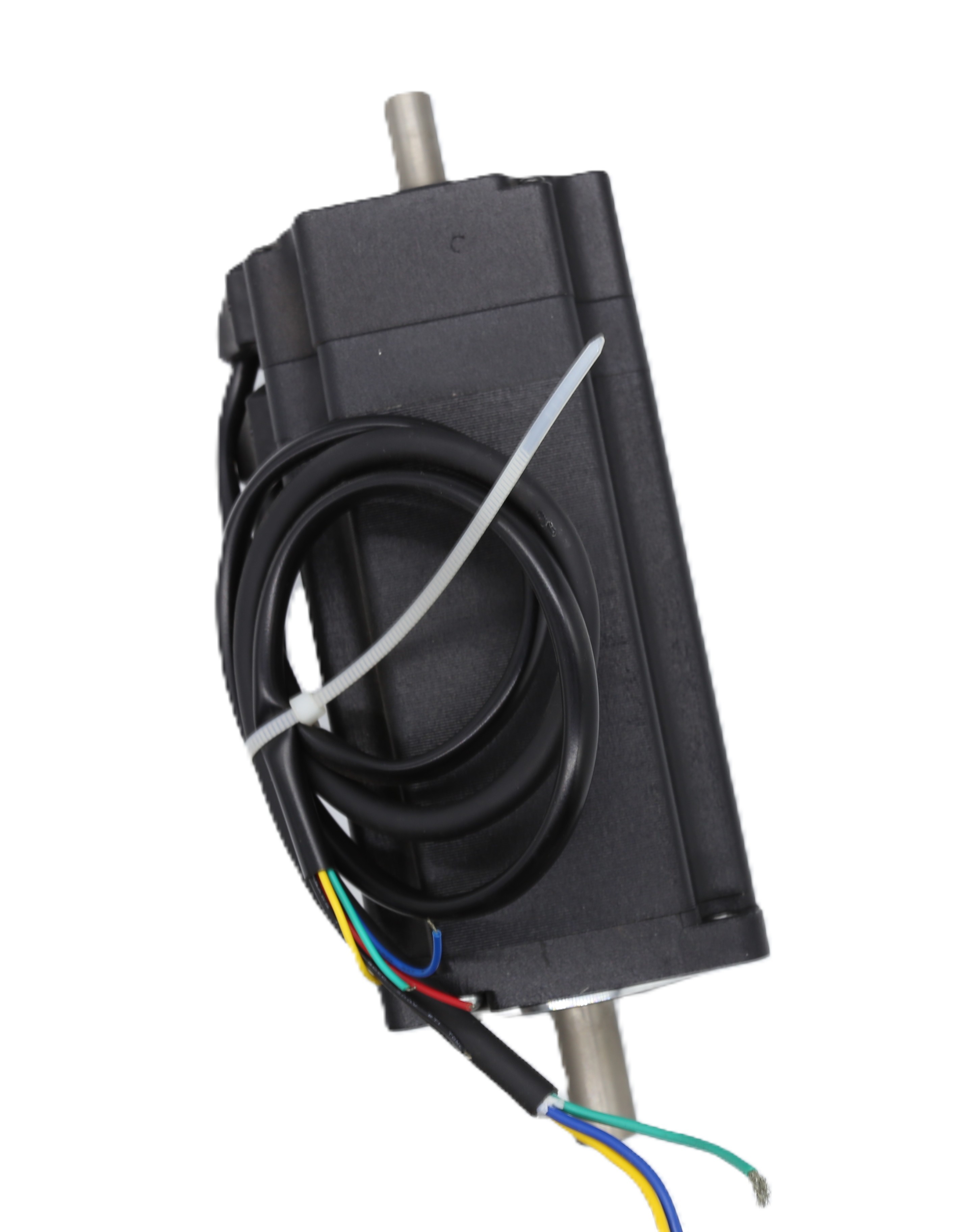

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
Motor Model: NEMA34 Two - phase simple servo stepper motor-XM60HS-ED
Genaral Specification:
| (Specifications) | |
| (Step Angle) | 1.8° |
| (Temperature Rise) | 80℃max |
| (Ambient Temperature) | -20℃~+50℃ |
| (Insulation Resistance) | 100 MΩ Min. ,500VDC |
| (Dielectric Strength): | 820VAC for 1s 3mA |
| (Shaft Radial Play) | 0.02Max. (450g-load) |
| (Shaft Axial Play) | 0.08Max. (450g-load) |
| (Max. radial force) | 220N (20mm from the flange) |
| (Max. axial force) | 60N |
Electrical Specification:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm |
Kg | |
| XM86HS78-6004XBJED-0.35M | 1.8 | 78 | 6 | 0.27 | 2 | 4.5 | 4 | 1.2 | 1400 | 2.8 |
| XM86HS115-6004YBJED-0.35M | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 | 4.3 |
| XM86HS155-6004YBJED-0.35M | 1.8 | 155 | 6 | 0.44 | 3.8 | 12 | 4 | 3.6 | 4000 | 5.9 |
Above only for representative products, products of special request can be made according to the customer request.
Dimensions:
Wiring Diagram:()
(Torque-frequency characteristic curve):
