Name: Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: Hybrid Stepper Gearbox Motor 57 Series
Price: 5.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hybrid Stepping Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

Standard Hybrid Stepping Motor

Hybrid Stepping Motor 2 Phase

4 Phase Stepper Motor With Gearbox

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: Hybrid Stepper Gearbox Motor 57 Series

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

Gallery

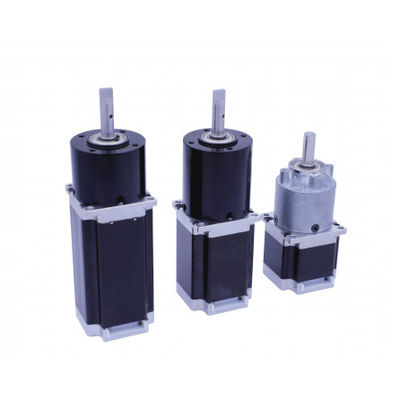

Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox

Product Description

Hybrid Stepping MotorHybrid Stepper Gearbox Motor 57 Series Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C - +50°C100MΩ @ 500 VDC Dielectric Strength

Hybrid Stepper Gearbox Motor 57Series

Product Overview

Product Overview	Specification
Step accuracy	±5%
Temperature rise	80°C Max
Ambient temperature range	-20°C - +50°C
Insulation resistance	100MΩ @ 500 VDC
Dielectric strength	500V AC for 1 minute

Technical Data

Model	Reduction Ratio	Gearbox Diameter	Phase Voltage	Phase Current	Phase Resistance	Phase Inductance	Static Torque	Gearbox Height	Motor Height	Total Weight
57BYGH231 - 05AG13	1/13	52	9.6	1.0	9.6	20	0.10	52.9	51.1	1.05
57BYGH236 - 01AG6	1/6	56	12.0	0.55	22	55	0.90	41.3	62.7	1.25
57BYGH406 - 17AG6	1/6	56	6.2	1.0	6.2	18	0.9	41.3	67.7	1.25
57BYGH636 - 80AG15	1/15	56	1.5	3.0	0.5	1.8	1.5	59.6	69.4	1.70

Optional Gearboxes

Planetary Gearbox 52 Zinc Alloy Model

Reduction Ratio	Instant Allowable Load (Nm)	Length (mm)	Reduction Ratio Stages
1/13	6.0	52.9	1

Planetary Gearbox 56mm

Reduction Ratio	Instant Allowable Load (Nm)	Length (mm)	Reduction Ratio Stages
1/4	6.0	41.3	1
1/6	-	-	-
1/15	25	59.6	2
1/18	-	-	-
1/26	50	59.6	2
1/47	-	-	-
1/66	-	-	-

Planetary Gearbox 56 Zinc Alloy Model

Reduction Ratio	Instant Allowable Load (Nm)	Length (mm)	Reduction Ratio Stages
1/13	6.0	52.7	1

Planetary Gearbox 56 Alternative Model

Reduction Ratio	Instant Allowable Load (Nm)	Length (mm)	Reduction Ratio Stages
1/4	6.0	43.3	1
1/6	-	-	-

Planetary Gearbox 56 Zinc-Plastic Model

Reduction Ratio	Instant Allowable Load (Nm)	Length (mm)	Reduction Ratio Stages
1/15	25	61.6	2
1/18	-	-	-
1/26	-	-	-
1/47	50	61.6	2
1/66	-	-	-

Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox 0
