Name: Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: 1.8° 28HS hybrid stepper motor
Price: 5.00 USD
Availability: InStock

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

10000

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 1.8 Degree Stepper Motor 2 Phase

Material: Black Or Customized

Size: Standard

Ambient Temperature: -20℃~+50℃

Insulation Resistance: 100 MΩ Min. ,500VDC

Dielectric Strength: 500VAC For 1minute

Temperature Rise: 80℃max

Packing: CTN Or Customized

Shaft Radial Play: 0.02Max. (450g-load)

Shaft Axial Play: 0.08Max. (450g-load)

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

1.8 Degree Stepper Motor 2 Phase

4 Phase Stepper Motor 4 Wire

4 Phase Stepper Motor 1.8 Degree

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: 1.8° 28HS hybrid stepper motor

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

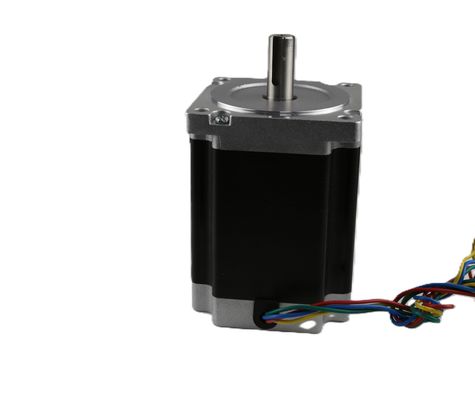

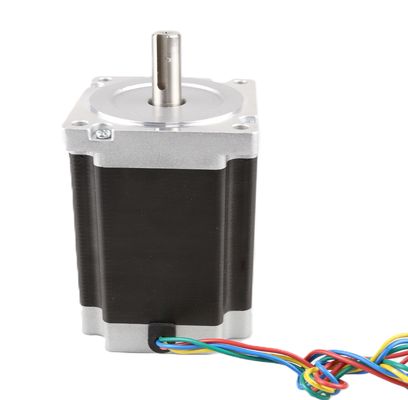

Gallery

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

Product Description

Hybrid Stepping Motor 1.8° 28HS Hybrid Stepper Motor (Step Angle) 1.8° Shaft Radial Play) 0.02Max. (450g-Load)

1.8° 28HS hybrid stepper motor

Product Overview

(Item)	(Specifications)
Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	28N (20mm from the flange)
(Max. axial force)	10N

Motor Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2

Motor Outline Drawing

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire 1

Motor Wiring Diagram

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire 2
