Name: 28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: Hybrid Stepper Gearbox Motor 28 Series
Price: 5.00 USD
Availability: InStock

28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox

10000

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Torque Stepper Motor With Gearbox

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

Hybrid Stepping Motor 2 Phase

2 Phase Hybrid Stepper Motor

High Torque Stepper Motor With Gearbox

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: Hybrid Stepper Gearbox Motor 28 Series

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

Gallery

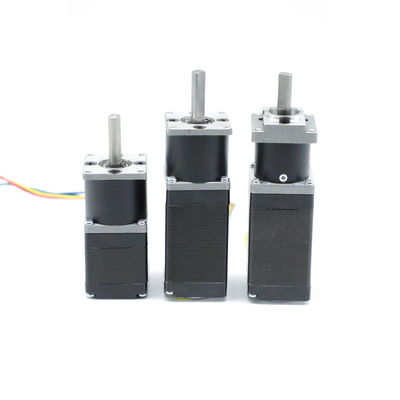

28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox

Product Description

Hybrid Stepping Motor Hybrid Stepper Gearbox Motor 28 Series Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C - +50°C Insulation Resistance 100MΩ @ 500 VDC Dielectric

Hybrid Stepper Gearbox Motor 28 Series

Product Overview

Parameter	Technical Specification
Step accuracy	±5%
Temperature rise	80°C Max
Ambient temperature range	-20°C - +50°C
Insulation resistance	100MΩ @ 500 VDC
Dielectric strength	500V AC for 1 minute

Technical Data

Motor Model	Gear Ratio	Gearbox Diameter (mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Static Torque (N·m)	Gearbox Height (mm)	Motor Height (mm)	Total Weight (kg)
28BYGH102 - 39AG6	1/6	28	4.22	0.67	6.3	3.2	0.06	28.5	32.5	0.22
28BYGH507 - 02AG6	1/6	28	4.56	0.67	6.8	4.9	0.095	28.5	54	0.31

Planetary Gearbox 28 Square Type
Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/3	0.6	28.5	1
1/6	-	-	1

Planetary Gearbox 28 Round Type
Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/14	1.5	29.8	1
1/30	-	-	1
1/64	5	40.0	1
1/10 7	-	-	1
