Name: Black Hybrid Type Stepper Motor High Torque High Accuracy Stepper Motor 2 Phase
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: Hybrid Stepper Gearbox Motor 42 Series
Price: 5.00 USD
Availability: InStock

Black Hybrid Type Stepper Motor High Torque High Accuracy Stepper Motor 2 Phase

10000

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Accuracy Stepper Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

Hybrid Type Stepper Motor High Torque

Hybrid Type Stepper Motor 2 Phase

High Accuracy Stepper Motor 2 Phase

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: Hybrid Stepper Gearbox Motor 42 Series

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

Gallery

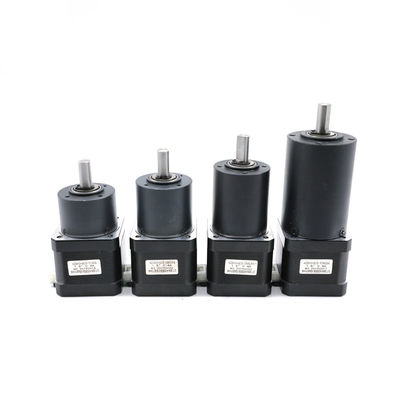

Black Hybrid Type Stepper Motor High Torque High Accuracy Stepper Motor 2 Phase

Product Description

Hybrid Stepping Motor Hybrid Stepper Gearbox Motor 42 Series Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C To +50°C Insulation Resistance 100MΩ At 500 VDC Dielectric

Hybrid Stepper Gearbox Motor 42Series

Product Overview

Parameter	Specification
Step Accuracy	±5%
Temperature Rise	80°C Max
Ambient Temperature Range	-20°C to +50°C
Insulation Resistance	100MΩ at 500 VDC
Dielectric Strength	500V AC for 1 minute

Technical Data

Model	Gear Ratio	Gearbox Diameter (mm)	Phase Voltage (V)	Phase Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Static Torque (N·m)	Gearbox Height (mm)	Motor Height (mm)	Total Weight (kg)
42BYGH208 - 56AG5	1/6	36	12	0.4	30	42	0.25	24.8	34	0.35
42BYGH835 - 08AG16	1/6	36	12	0.5	24	36	0.44	24.8	55.6	0.52
42BYGH603 - 10AG54	1/54	42	12	0.4	30	65	0.38	60.1	40	0.45
42BYGH868 - 16AG54	1/54	42	6.56	0.8	8.2	13.8	0.49	60.1	48	0.55

Optional Gearboxes

Planetary Gearbox 36mm

Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/4	1.0	24.8	1
1/5	-	-	-
1/16	3.5	32.4	2
1/20	-	-	-
1/25	-	-	-
1/53	7.5	41.9	3
1/62	-	-	-
1/76	-	-	-
1/94	-	-	-
1/117	-	-	-

Planetary Gearbox 42mm

Reduction Ratio	Instantaneous Allowable Load (Nm)	Length (mm)	Number of Reduction Stages
1/4	3.0	32.5	1
1/6	-	-	-
1/15	12	46.3	2
1/18	-	-	-
1/25	-	-	-
1/36	-	-	-
1/54	25	60.1	3
1/65	-	-	-
1/90	-	-	-
1/112	-	-	-
1/155	-	-	-
1/216	25	60.1	3
