Name: Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: XM42HS Screw Stepper Motor
Price: 5.00 USD
Availability: InStock

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire

10000

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hybrid Stepping Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

XM42HS Screw Stepper Motor

Screw Stepper Motor 4 Wire

Black Hybrid Stepping Motor

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: XM42HS Screw Stepper Motor

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

Gallery

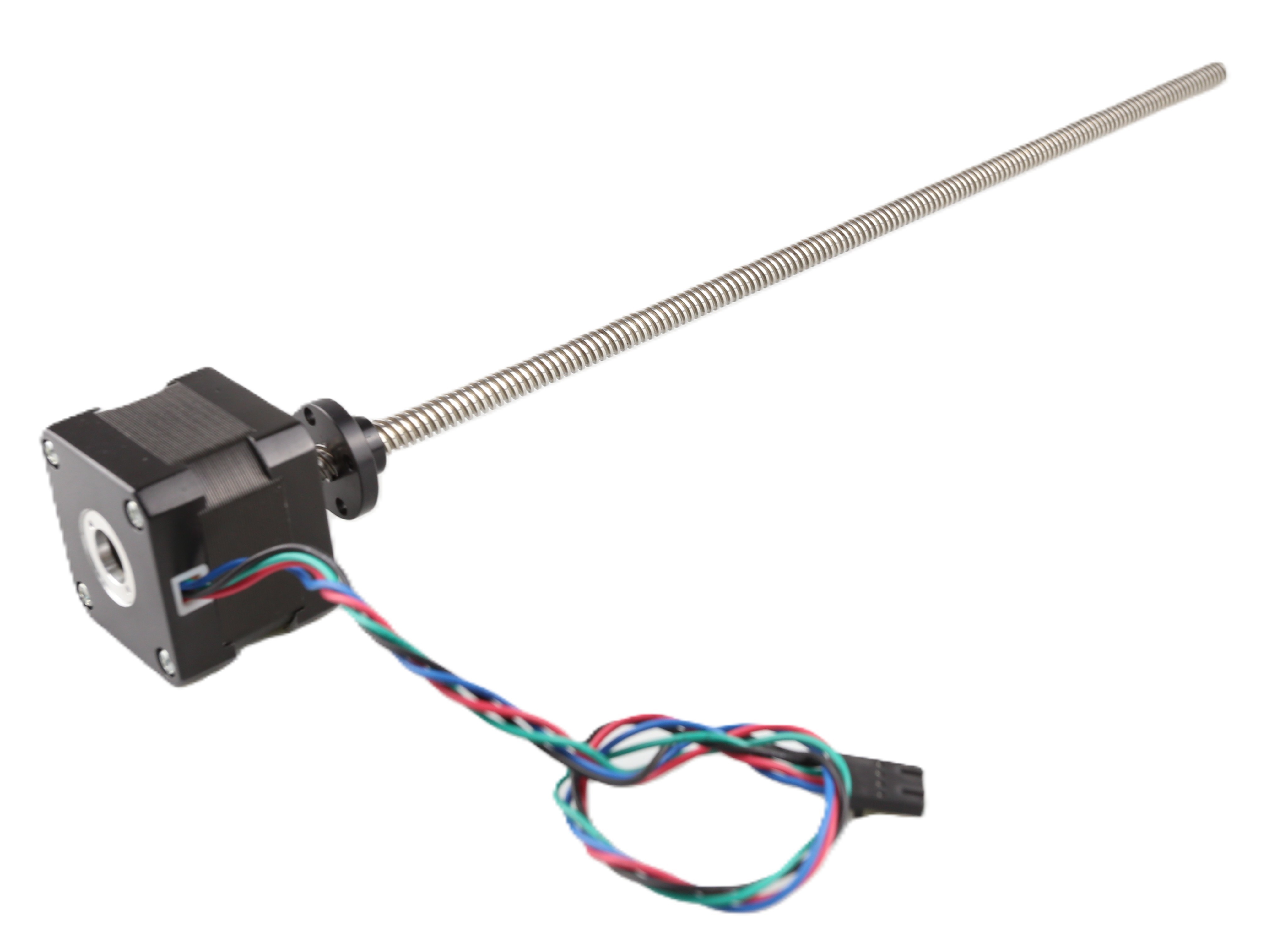

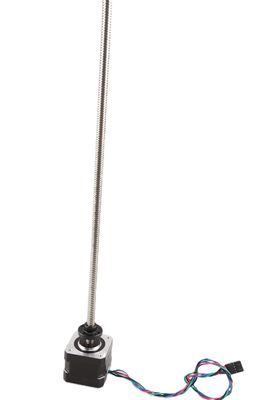

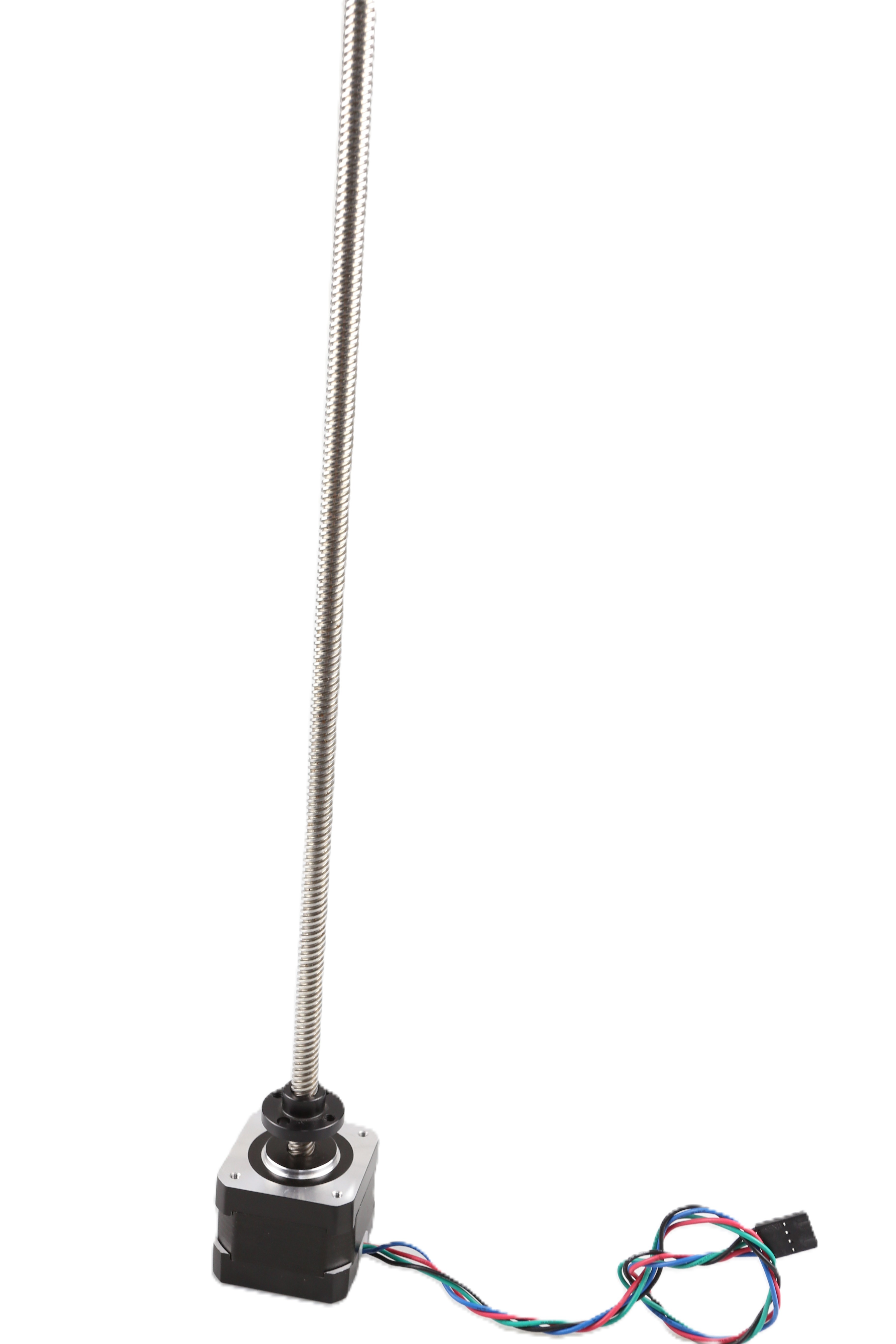

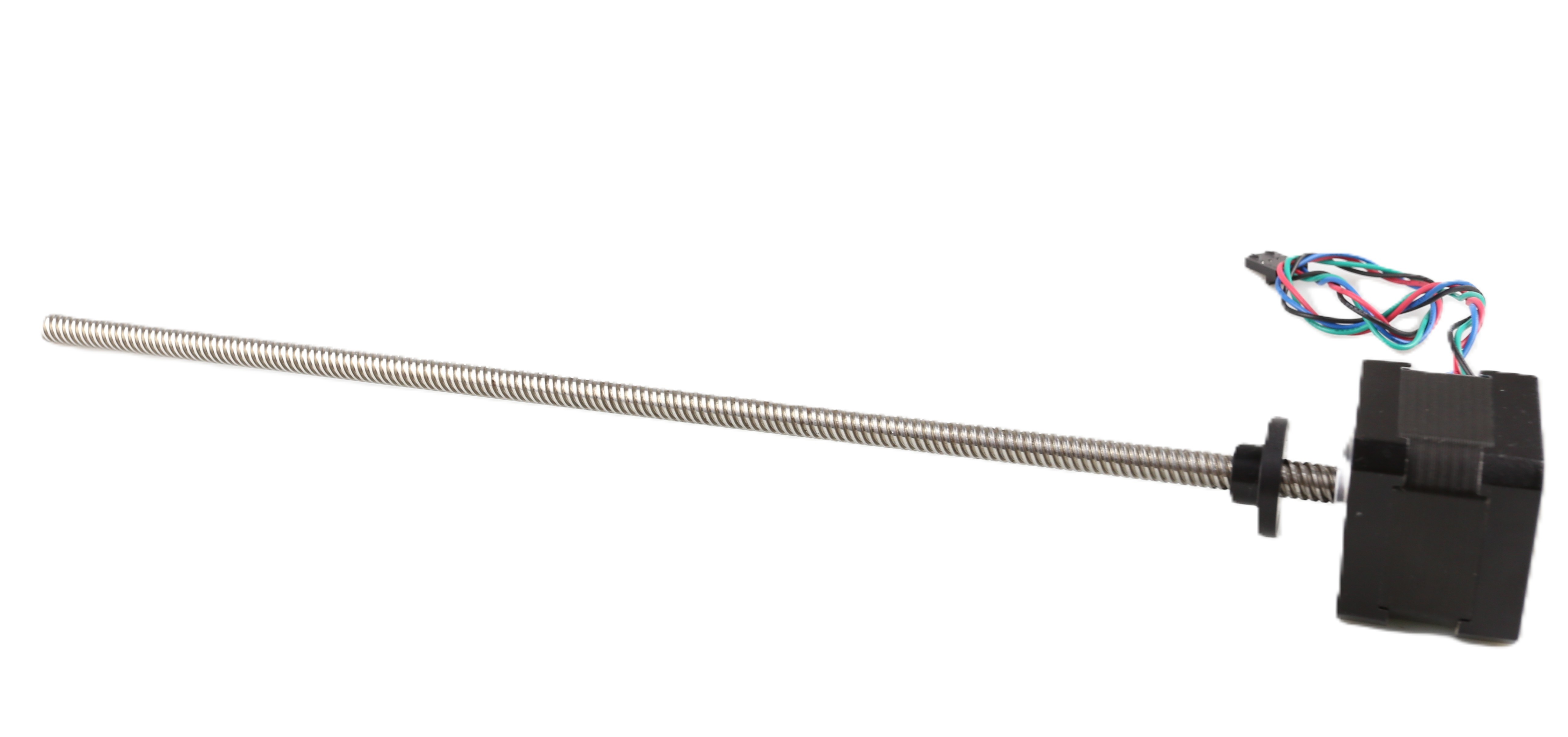

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire

Product Description

XM42HS Screw Stepper Motor Dielectric Strength): 500VAC For 1minute Insulation Resistance) 100 MΩ Min. ,500VDC Step Angle) 1.8°

Product details

XM42HS Screw Stepper Motor

General Specification:

(Item)	(Specifications)
(Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength)	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	28N (20mm from the flange)
(Max. axial force)	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
28HS32-0424	1.8	32	0.4	11.9	6.7	600	4	9	0.11
28HS32-0504	1.8	32	0.5	11.4	7.4	600	4	9	0.11
28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2
JK28HS51-1004	1.8	51	1.0	2.3	1.8	900	4	18	0.2

Above only for representative products, products of special request can be made according to the customer request.

Screw rod Specification:

Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)	Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)
Tr3.5	1	1	0.005	Tr6	2	1	0.01
	0.6096	0.6096	0.003		4	1	0.02
	2.4384	1.2192	0.0122		6	1	0.03
Tr5	1	1	0.005		12	2	0.06
Tr5	2	1	0.01

/Dimensions:(/Unit=mm)

1,External Shaft motor /Nut: 1.POM/POM Nut

2./Copper Nut

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire 1

2,Non Captive motor

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire 3

Wiring Diagram:

Tag:

0086-13921042401 or 13775644377

Fax :

86-519-85515626

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire

XM42HS Screw Stepper Motor

Screw Stepper Motor 4 Wire

Black Hybrid Stepping Motor

Hybrid Stepper Motor

Screw Stepper Motor

Gearbox Stepper Motor

28 Series Hybrid Stepping Motor 2 Phase High Torque Stepper Motor With Gearbox

Black Hybrid Type Stepper Motor High Torque High Accuracy Stepper Motor 2 Phase

Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox

Black Hybrid Stepping Motor XM42HS Screw Stepper Motor 4 Wire

Small Two Phase Hybrid Stepper Motor , Screw Stepper Motor 1.8 Degree

High Precision Hybrid Stepping Motor HB110 Four Phase Stepper Motor Customized

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

Contact Person :	LU
Tel :	0086-13921042401 or 13775644377
Fax :	86-519-85515626
