Name: High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: Hybrid Stepper Gearbox Motor 57 Series
Price: 10 USD
Availability: InStock

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox

10000

MOQ

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Torque Hybrid Stepper Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Step Angle: 0.9°

Temperature Rise: 80℃max

Ambient Temperature: -20℃~+50℃

Dielectric Strength: 500VAC For 1minute

Shaft Radial Play: 0.02Max. (450g-load)

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

High Torque Hybrid Stepper Motor

Gearbox Stepper Motor Hybrid

Miniature Stepper Motor With Gearbox

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: Hybrid Stepper Gearbox Motor 57 Series

Payment & Shipping Terms

Packaging Details: CTN OR CUSTOMIZED

Delivery Time: 35days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100000PCS/month

Gallery

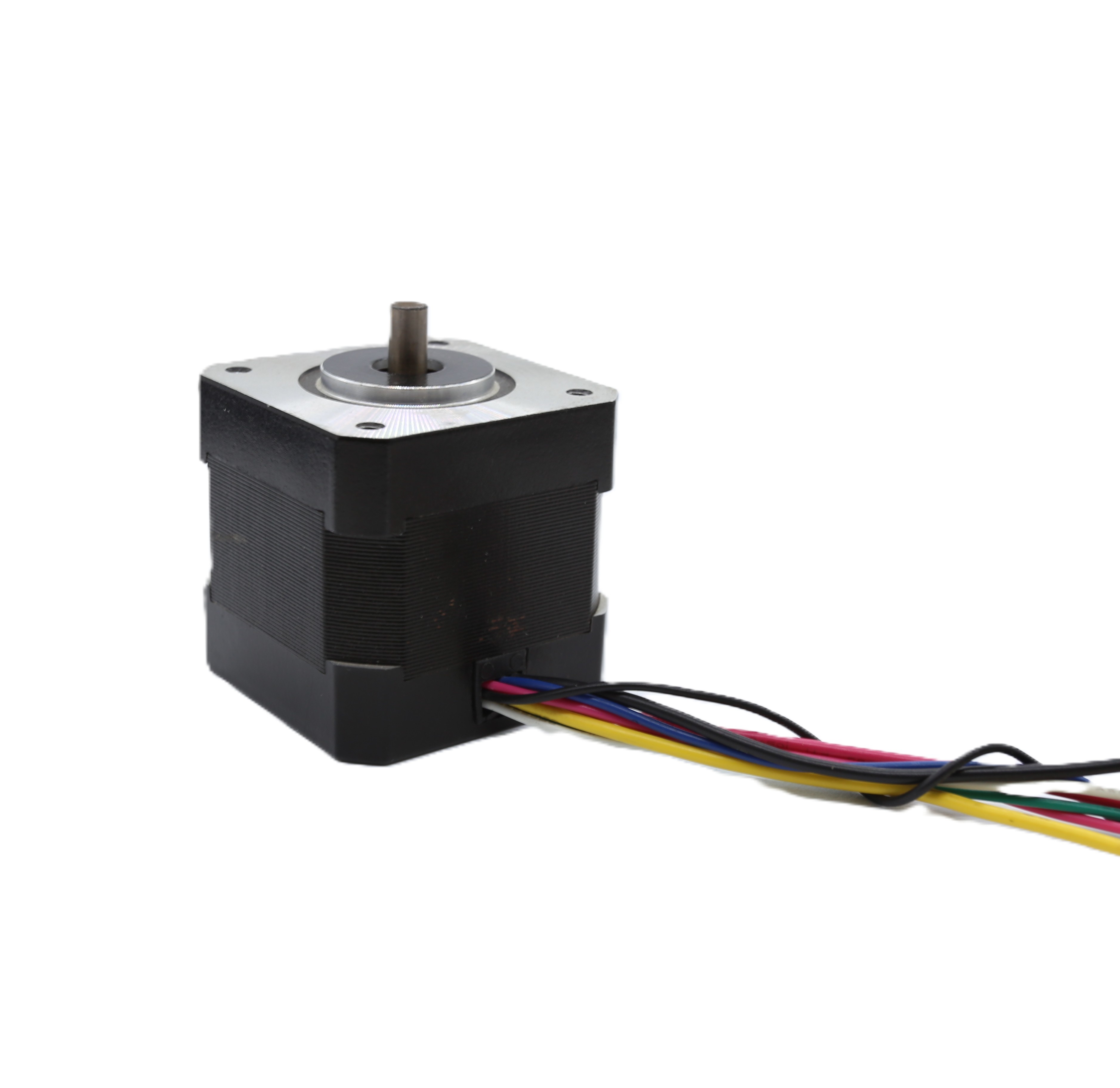

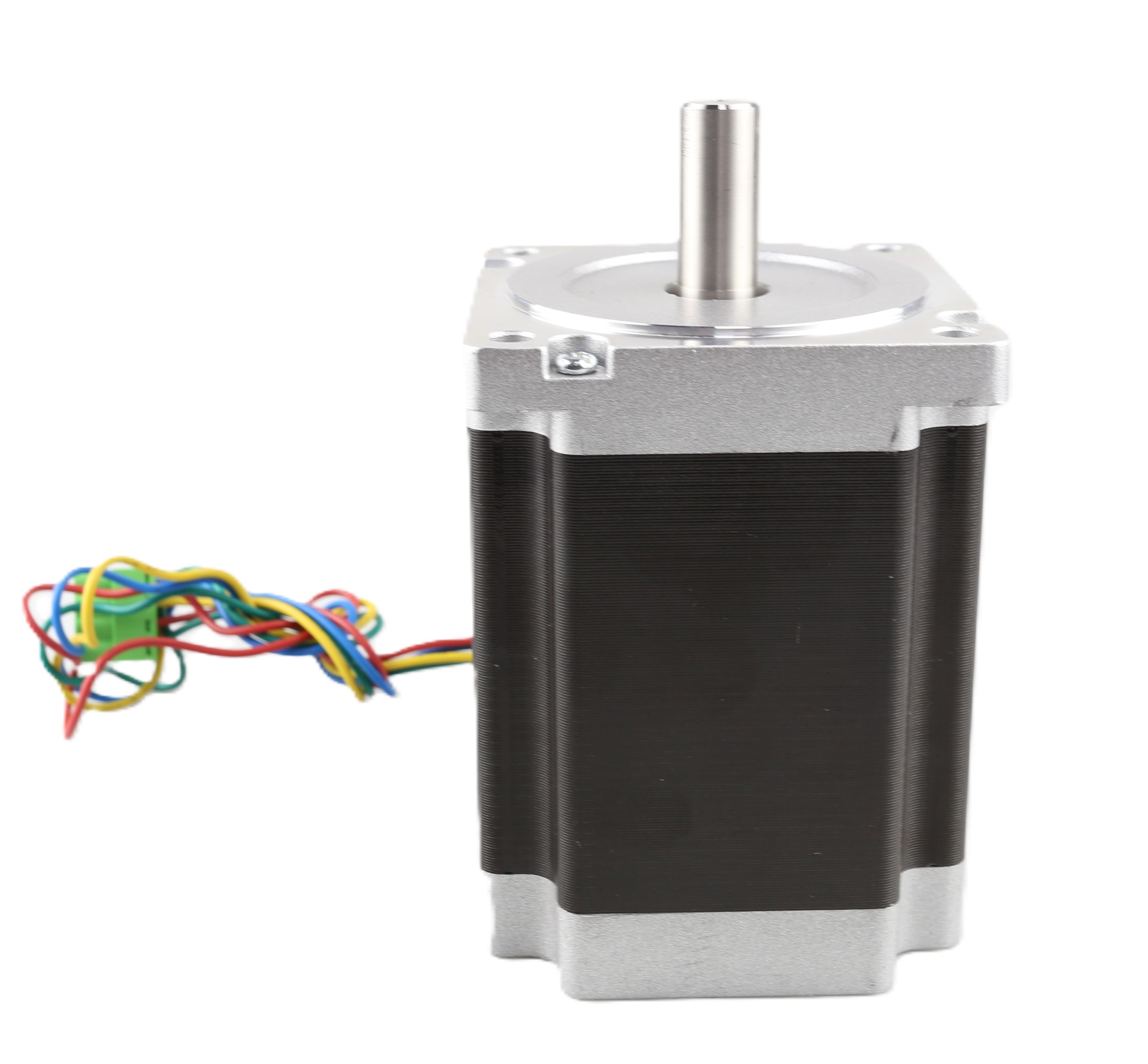

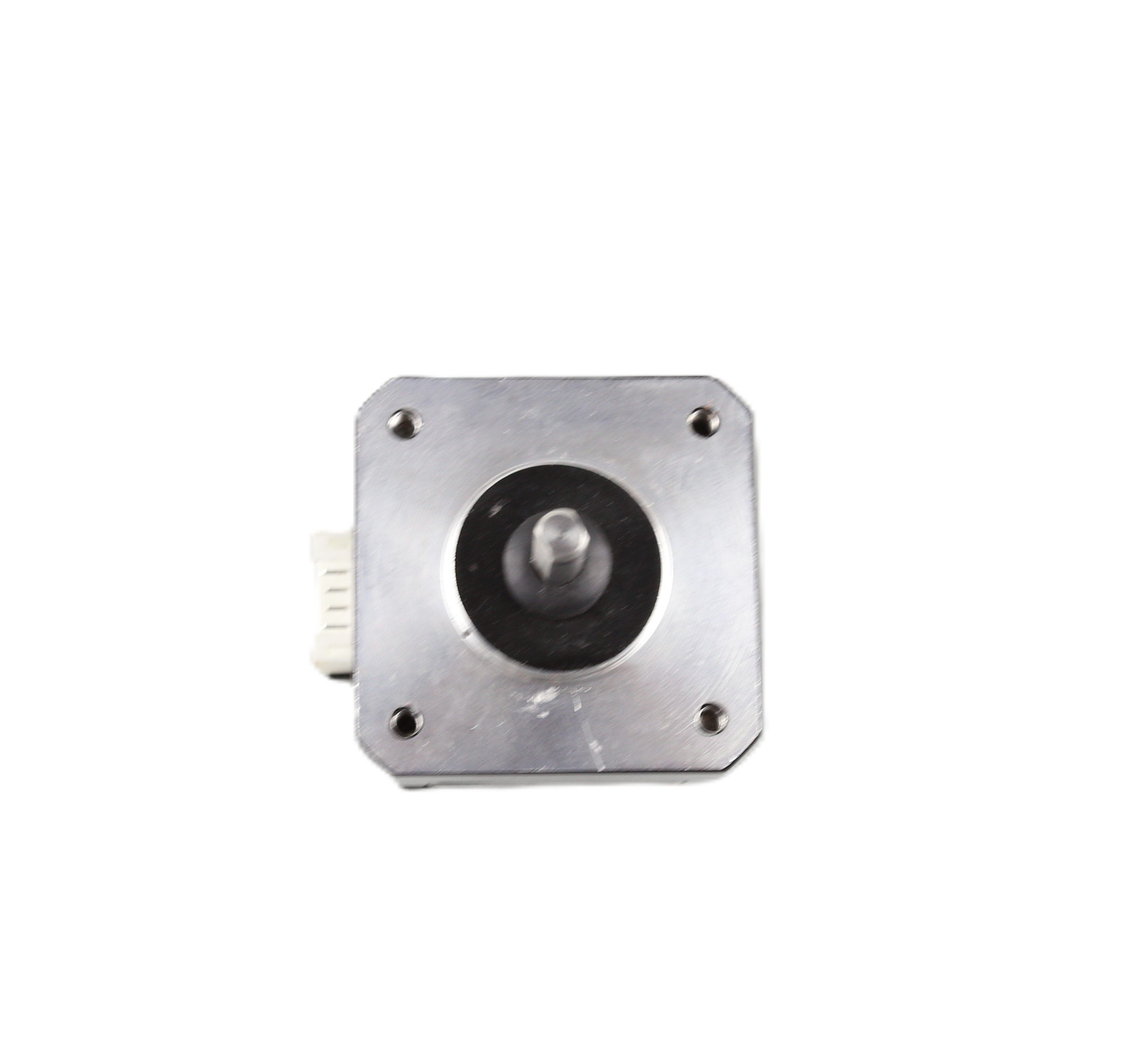

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox

Product Description

Hybrid Stepping Motor Hybrid Stepper Gearbox Motor 57 Series Basic Performance Of 0.9° 57HM Hybrid Stepper Motor

Basic Performance of 0.9° 57HM Hybrid Stepper Motor

(Item)	Specifications)
(Step Angle	0.9°
Temperature Rise	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
(Max. radial force)	75N (20mm from the flange)
Max. axial force)	15N

Motor Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
57HM41-1006	0.9	41	1	5.7	8	3.9	6	210	120	0.45
57HM41-2006	0.9	41	2	1.4	2.2	3.9	6	210	120	0.45
57HM41-3006	0.9	41	3	0.63	1.0	3.9	6	210	120	0.45
57HM41-2804	0.9	41	2.8	0.7	2.2	5.5	4	210	120	0.45
57HM56-1006	0.9	56	1	7.4	17.5	9	6	400	300	0.7
57HM56-2006	0.9	56	2	1.8	4.5	9	6	400	300	0.7
57HM56-3006	0.9	56	3	0.75	1.9	9	6	400	300	0.7
57HM56-2804	0.9	56	2.8	0.9	4.5	12	4	400	300	0.7
57HM76-1006	0.9	76	1	8.6	23	13.5	6	680	480	1
57HM76-2006	0.9	76	2	2.25	5.6	13.5	6	680	480	1
57HM76-3006	0.9	76	3	1	2.6	13.5	6	680	480	1
57HM76-2804	0.9	76	2.8	1.13	5.6	18	4	680	480	1

Motor Outline Drawing

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox 1

Motor Wiring Diagram

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox 2
