Name: XM60HS Stepper Servo Motor NEMA 34 Two Phase Simple Servo Stepper Motor
Brand: Changzhou Xingmai Motor Technology Co., Ltd.
SKU: XM60HS Servo Motor Two - Phase Simple Servo Stepper Motor
Price: 5.00 USD
Availability: InStock

XM60HS Stepper Servo Motor NEMA 34 Two Phase Simple Servo Stepper Motor

10000PCS

MOQ

1~10 USD/PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Stepper Servo Motor

Material: Black Or Customized

Size: Standard

Packing: CTN Or Customized

Motor: Stepper Motor

Phase: 2~4

Stepper Motor: 4 Wire Stepper Motor

High Torque: Small Stepper Motor High Torque

Construction: PM

Highlight:

Servo Motor NEMA 34

Stepper Servo Motor

NEMA 34 Servo Motor

Basic Infomation

Place of Origin: CHINA

Brand Name: XM-Motor

Certification: ISO9001

Model Number: XM60HS Servo Motor Two - Phase Simple Servo Stepper Motor

Payment & Shipping Terms

Packaging Details: packed with CTN

Delivery Time: with in 35days

Payment Terms: L/C, T/T, D/P

Supply Ability: 100,000 PCS/month

Gallery

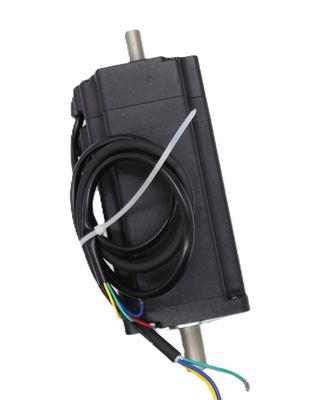

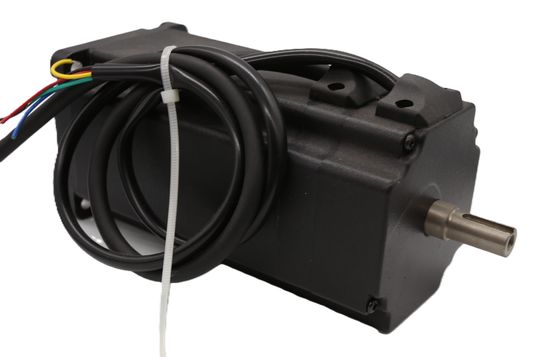

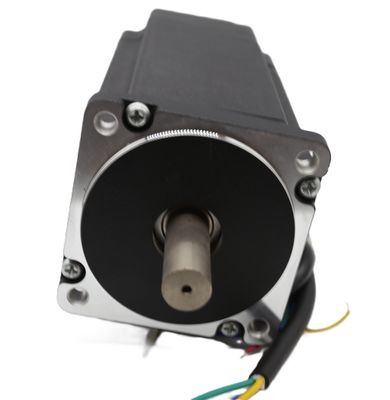

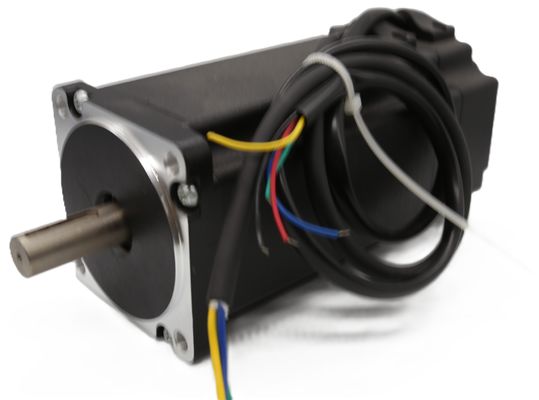

XM60HS Stepper Servo Motor NEMA 34 Two Phase Simple Servo Stepper Motor

Product Description

Product details

Motor Model: NEMA34 Two - phase simple servo stepper motor-XM60HS-ED

Genaral Specification:

	(Specifications)
(Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	820VAC for 1s 3mA
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	220N (20mm from the flange)
(Max. axial force)	60N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm	Kg
XM86HS78-6004XBJED-0.35M	1.8	78	6	0.27	2	4.5	4	1.2	1400	2.8
XM86HS115-6004YBJED-0.35M	1.8	115	6	0.36	3.8	8.5	4	2.4	2700	4.3
XM86HS155-6004YBJED-0.35M	1.8	155	6	0.44	3.8	12	4	3.6	4000	5.9

Above only for representative products, products of special request can be made according to the customer request.

Dimensions:

XM60HS Stepper Servo Motor NEMA 34 Two Phase Simple Servo Stepper Motor 1

Wiring Diagram:()

(Torque-frequency characteristic curve):

XM60HS Stepper Servo Motor NEMA 34 Two Phase Simple Servo Stepper Motor 5
